Start-up

Pos: 19.19 /Übersc hriften/Überschrif ten 2/F-J /GGelenkwelle @ 0\mod_119 9781879794_78.d ocx @ 3454 2 @ 2 @ 1

6.3 PTO shaft

Pos: 19.20 /BA/Sic herheit/Gele nkwelle/Gefahr - Sich drehend e Gelenkwelle_ 2 @ 0\mod _119978169295 0_78.docx @ 34 523 @ @ 1

Danger! - Rotating PTO shaft

Effect: Danger to life or serious injuries

• Install or detach the PTO shaft only with the engine switched off and the ignition key

removed.

• Secure the tractor against rolling.

• Make sure that the PTO shaft is coupled properly (the lock of the PTO shaft must have

snapped in).

• Make sure that the protective devices are attached properly.

• Never use a PTO shaft, the protective devices of which have not been attached.

• Replace damaged protective devices immediately

• Attach the safety chain of the PTO shaft so that the guard tube does not rotate

simultaneously with the PTO shaft.

Pos: 19.21 /BA/Sic herheit/Gele nkwelle/Gefahr - Falsche Za pfwellendrehza hl 540 U/min @ 9\mod_12208 68351329_78.d ocx @ 128138 @ @ 1

Danger! - Incorrect PTO speed

Effect: Danger to life, serious injuries or damage to the machine.

• This machine may only be driven with a max. PTO speed of 540 rpm.

• Before switching on the PTO, make sure that you have selected the correct PTO speed.

Pos: 19.22 /BA/Sic herheit/Gele nkwelle/Achtung - Sch wenkbereich/Freir aum überprüfe n @ 9\mod_12 20536308930 _78.docx @ 1268 98 @ @ 1

Caution! - Swivel range of the PTO shaft

Effect: Damage to the tractor or the machine

• Check the swivel range and clearance of the PTO shaft!

Pos: 19.23 /Übersc hriften/Überschrif ten 2/F-J /GGelenkwelle montieren @ 2\mod_1202398 342788_78.doc x @ 59253 @ 2 @ 1

6.4 Install the PTO shaft

Pos: 19.24 /BA/I nbetriebnahme/M ähwerke AM B aureihe/Anbau G elenkwelle Bild AM 203S/2 43S/283S/323S @ 69\mo d_13050971715 90_78.docx @ 6 33167 @ @ 1

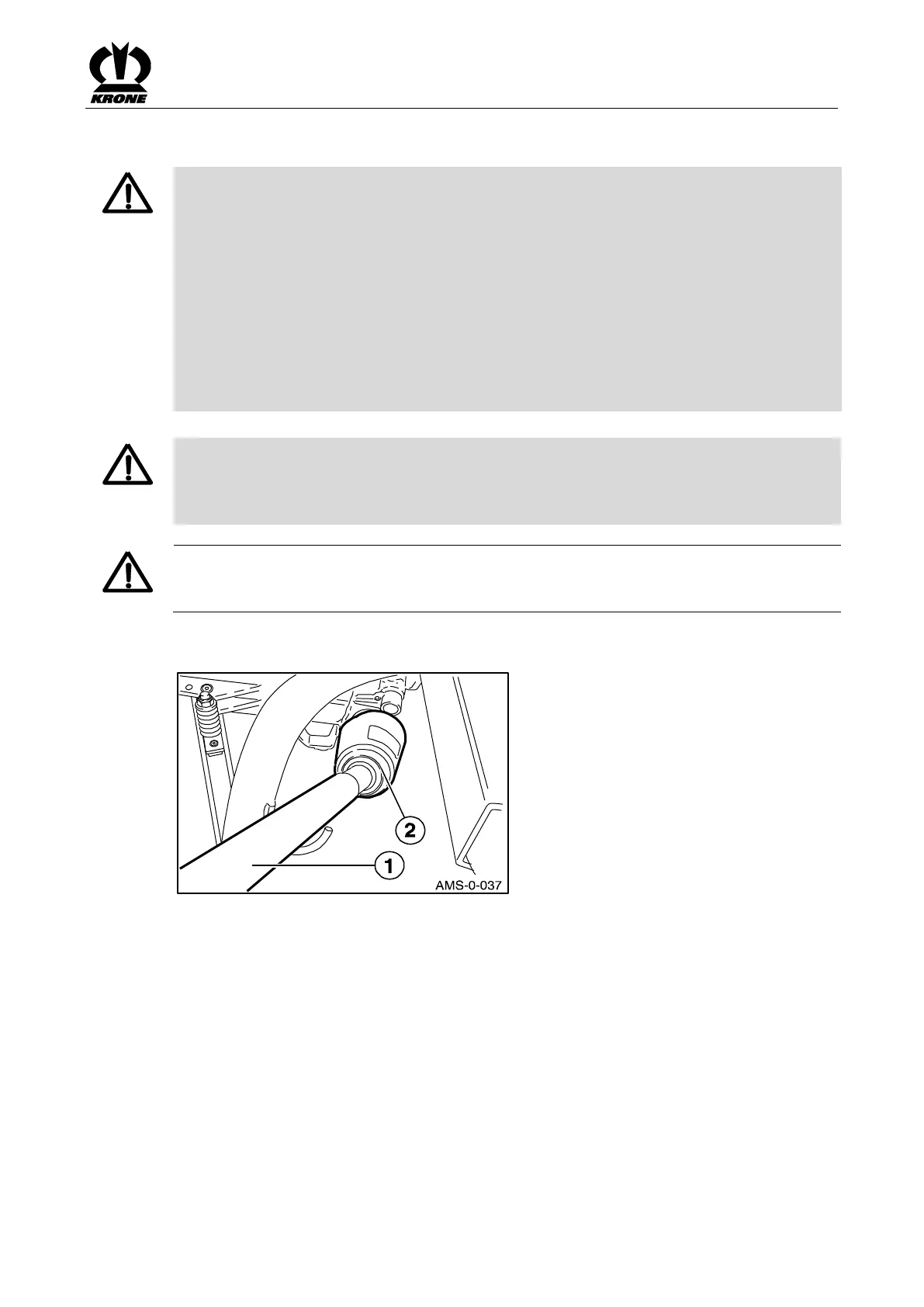

Fig.

Pos: 19.25 /BA/I nbetriebnahme/M ähwerke AM B aureihe/Anbau G elenkwelle T ext AM 203S/ 243S/283S/323S @ 69\m od_1305098440 007_78.docx @ 633195 @ @ 1

• Push the PTO shaft (1) with the overload coupling (2) onto the disc mower gear input shaft

towards the disc mower and secure it in place

• Slide the PTO shaft (1) onto the PTO end of the tractor and secure it

Make sure all locks of the PTO shaft have snapped in.

• Secure the PTO shaft guard against turning with the retaining chain
