10.10.1 Cutter Blades
Pos: 29.34.7 /B A/Wartung/Mäh werke/Die Bohrung der Mäh klingen kann sich durch Verschleiß a ufweiten. @ 10\mod_1 22104898271 5_78.docx @ 1316 75 @ @ 1
The borehole on the cutter blades may spread due to wear.
Pos: 29.34.8 /B A/Sicherheit/7. G efahrenhinweis e alt/Mähwer keWarnung - Z u geringe M aterialstärke an den M ähklingen _neu @ 312\ mod_1418983956 660_78.doc x @ 2409555 @ @ 1
Danger! - Insufficient thickness of material on the cutter blades.
Effect: Danger to life or serious injuries.

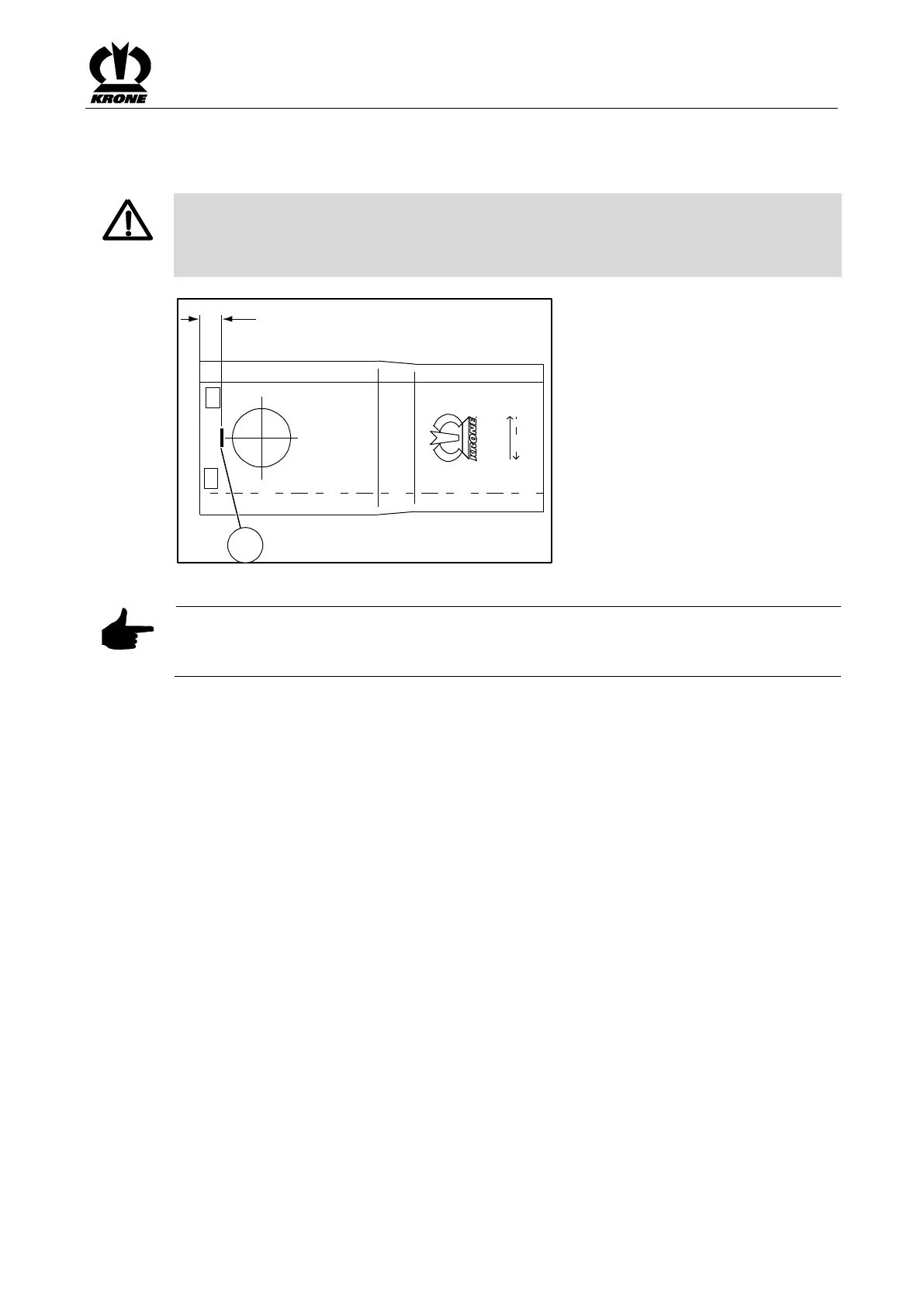

• The cutter blades must be replaced at the latest when the wear limit is reached (see mark
(1) on the cutter blade; dimension a less than or equal to 13 mm).
Pos: 29.34.9 /B A/Wartung/Mäh werke/Mähklingen beidseitig verwenbar_neu @ 3\mod_1 204728012601_ 78.docx @ 7260 8 @ @ 1
Fig.
Note - The cutter blades can be turned around and used on both sides.
• When cutter blades are missing or damaged, they must be replaced as a complete set.
This prevents dangerous unbalanced rotation
