Maintenance

Pos: 29.34.19 /Ü berschriften/Ü berschriften 3/K- O/MMesserschr aubverschluss @ 0\mod_ 1197270941296_ 78.docx @ 1 6578 @ 3 @ 1

10.12.1 Blade Screw Connection

Pos: 29.34.20 / BA/Wartung/Mä hwerke/Messerschr aub / Mess erschnellverschlus s/Beschreib ung Messer wechsel Messerschr aubverschluss AM @ 70\ mod_1305178 894100_78.doc x @ 635757 @ @ 1

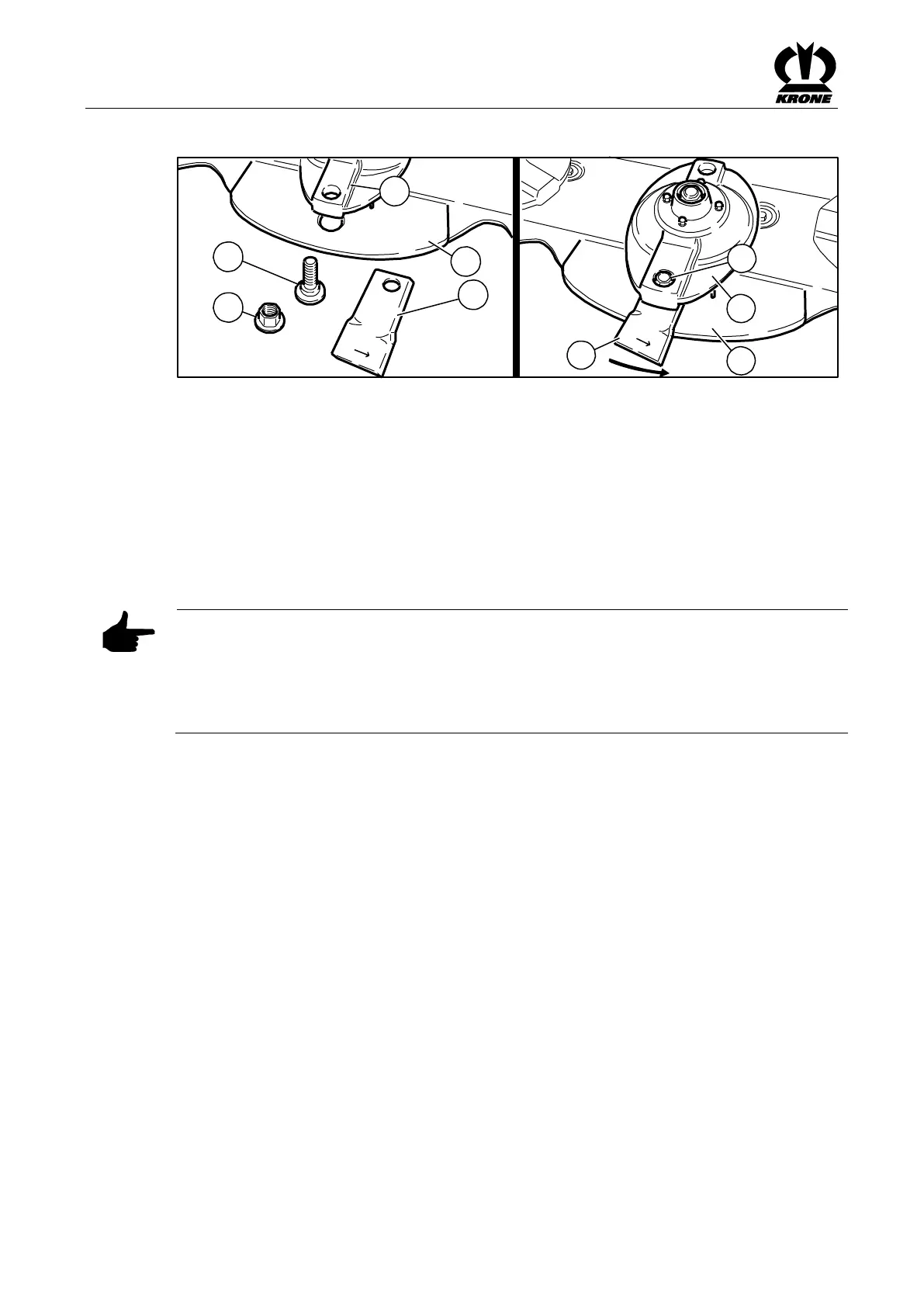

AM-4-032

Fig.

• Fold up the protective device

• Clean the area

• Remove damaged or worn blades

• To fit a blade (5), insert it between the wear plate (2) and the cutting disc (1)

• Insert the retaining bolt (3) from below through the wear plate, the blade and the cutting disc

• Place the hex nut (4) on the bolt from above and tighten it firmly (for torque see section

"Torques").

• Repeat this process for all blades, including those on the blade drums

• After fitting the blades, fold the protective device down again

Pos: 29.34.21 / BA/Wartung/Mä hwerke/Messerschr aub / Mess erschnellverschlus s/Beschreib ung Messer wechsel Messerschr aubverschluss Hinweis @ 71\mod_13 06221707374_78. docx @ 64401 3 @ @ 1

Note

• The cutter blades of anticlockwise rotating cutting discs / blade drums are different to those

of clockwise rotating ones. Make certain the direction of rotation is correct when installing!

• The arrow on the cutter blades must match the direction of rotation of the corresponding

cutting discs / blade drums

• The locknut (4) used to secure the retaining bolts must not be used more than once

Pos: 29.34.22 / BA/Wartung/Mä hwerke/Messerschr aub / Mess erschnellverschlus s/Beschreib ung Messer wechsel Best.-Nr. @ 72\mod_1 30622176385 8_78.docx @ 6440 41 @ @ 1

Order No. for clockwise rotating blade: 139-889

Order No. for anticlockwise rotating blade: 139-888

Pos: 29.34.23 / BA/Wartung/Mä hwerke/Messerschr aub / Mess erschnellverschlus s/Beschrei bung Messer wechsel alternati v Best.-Nr. @ 72\mod_1306 223454041_78. docx @ 644097 @ @ 1

Alternatively:

Order No. for roof-shaped blade (clockwise and anticlockwise threading): 139 800
