14 Special equipment
Pos: 33.2 /Übersc hriften/Übersc hriften 2/P-T/ SSpezielle Sich erheitshinweis e @ 0\mod_119 6660495760_7 8.docx @ 91 34 @ 2 @ 1
14.1 Special Safety Instructions
Pos: 33.3 /BA/Sich erheit/7. Gefa hrenhinweise alt /Mähwerke/W arnung - Re paratur_Wartung_R einigungs _4 allgemein Eas yCut @ 292\m od_141094142 3112_78.docx @ 2299026 @ @ 1
WARNING!
When performing repair, maintenance or cleaning work or in case of technical
intervention, drive elements may start moving (caution: cutting discs continue to run).
Effect: Danger to life, injuries or damage to the machine.
• Turn off the PTO shaft.
• Move the machine to the working position and lower it to the ground.
• Switch off the engine of the tractor, remove the ignition key and carry it with you.
• Secure the tractor against accidental start-up and against rolling.
• After the repair, maintenance, cleaning work or technical modifications are completed,
mount all protective covers and safety devices properly again.
• Avoid skin contact with oils, greases, cleaning agents and solvents.
• In the event of injuries or burns due to oils, cleaning agents or solvents, contact a physician
immediately.
• All other safety instructions must also be followed to avoid injuries and accidents.
Pos: 33.4 /Übersc hriften/Übersc hriften 2/F-J/HH ochschnittku fen @ 70\mod_ 130563986231 9_78.docx @ 6 38598 @ 2 @ 1
14.2 Adjusting Skids
Pos: 33.5 /BA/Son derausstatung/ Gefahr Masc hine sinkt un kontrolliert ab @ 70\ mod_130563 9968799_78.d ocx @ 6386 25 @ @ 1
DANGER! – Machine drops without control
Danger to life or serious injuries.
• Never walk under a raised machine
• Support the raised machine safely
Pos: 33.6 /BA/Son derausstatung/ EasyCut / AM M ähwerke/Hoc hschnittkufen AM -Mähwer ke @ 70\mod_13 05555023464 _78.docx @ 63 7582 @ @ 1

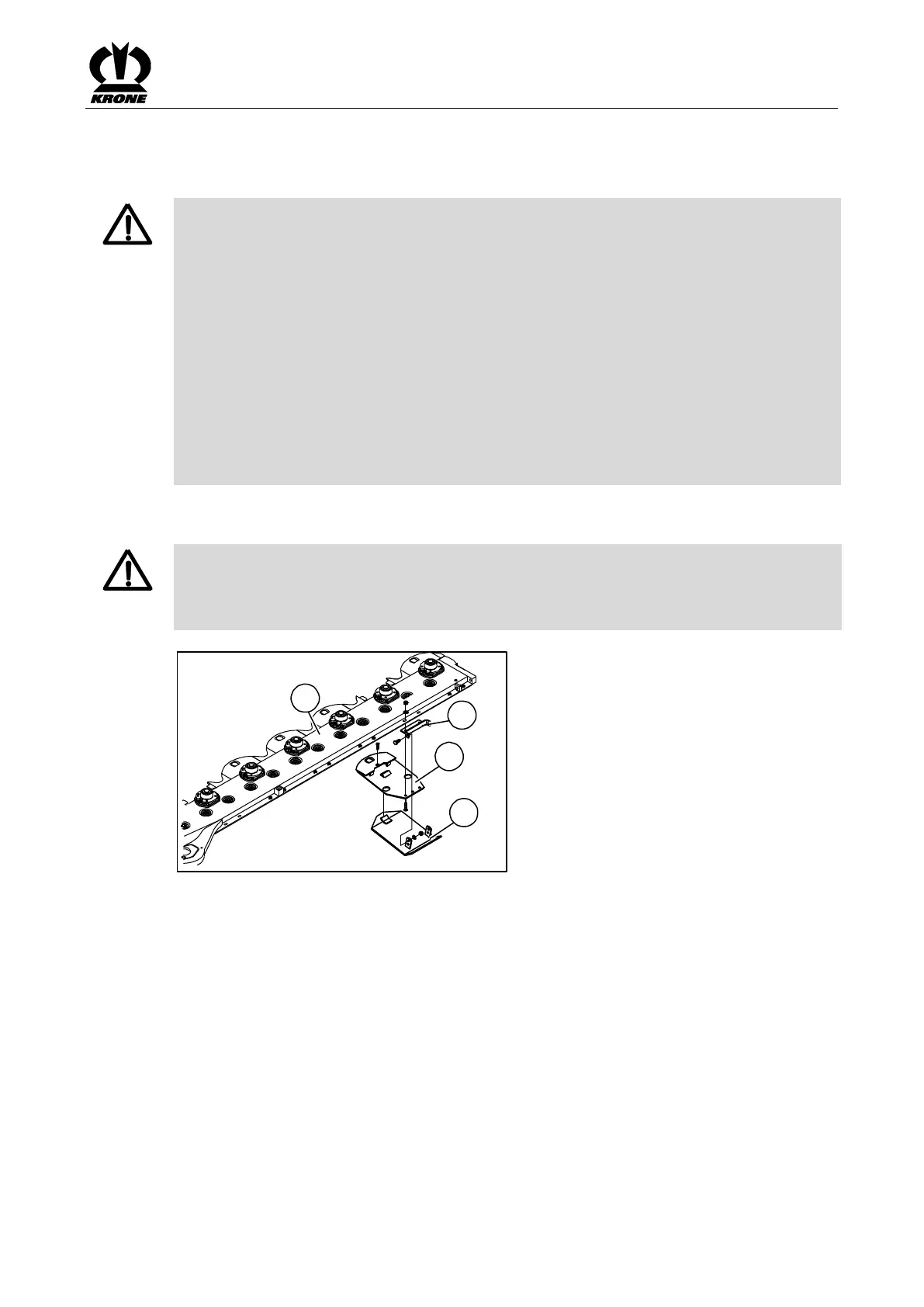

Fig.
Adjusting skids can be used to adjust the cutting height in two stages (see section entitled
"Adjusting the Cutting Height")
To do this screw on the bar (4) under the cutter bar (1). Then insert the adjusting skid (3) into
the glide skid (2) and screw together with the bar at the required height (4).
The adjusting skids must always be mounted underneath the cutting discs that run next to the
mower drums.
