Start-up

Pos: 19.27.1 /B A/Inbetriebnahm e/Mähwerke AM Baureihe/E ntlastungsfeder/ Entlastungsfeder befestigen @ 69\mod_1 305094434033_7 8.docx @ 6329 17 @ 2 @ 1

6.5 Fastening the Compensation Spring

Pos: 19.27.2 /B A/Inbetriebnahm e/Mähwerke AM Baureihe/E ntlastungsfeder/bei AM 283 S und AM 323 S @ 69\mod_13 05095850565_78. docx @ 633 083 @ @ 1

(for AM 283 S and AM 323 S)

Pos: 19.27.3 /B A/Inbetriebnahm e/Mähwerke AM Baureihe/E ntlastungsfeder/GEF AHR! – Mo ntage der Entl astungsfeder( n) @ 69\mod_ 1305096039051 _78.docx @ 633 110 @ @ 1

DANGER! – Installing the compensation spring(s)

Effect: Danger to life or serious injuries

• The compensation spring(s) should only be adjusted while the machine is in the transport

position. In the working position the compensation springs are subject to high tensile stress.

• Severe injury can be caused if the compensation spring(s) is/are removed while in the

working position.

• The lower threaded blocks on the compensation spring(s) must be fully screwed in.

Pos: 19.27.4 /B A/Inbetriebnahm e/Mähwer ke AM Baureihe/E ntlastungsfeder/Hi nweis Die hi ntere Entlastungsf eder kann nur in Transportst ellung der Maschi ne montiert werden @ 69\ mod_13050956 64117_78.doc x @ 633029 @ @ 1

Note

The rear compensation spring can only be mounted in the transport position of the machine.

Pos: 19.27.5 /B A/Inbetriebnahm e/Mähwerke AM Baureihe/E ntlastungsfeder/En tlastungsfeder anbringen Bild AM -S Baurei he @ 69\mod _1305095618 419_78.docx @ 633002 @ @ 1

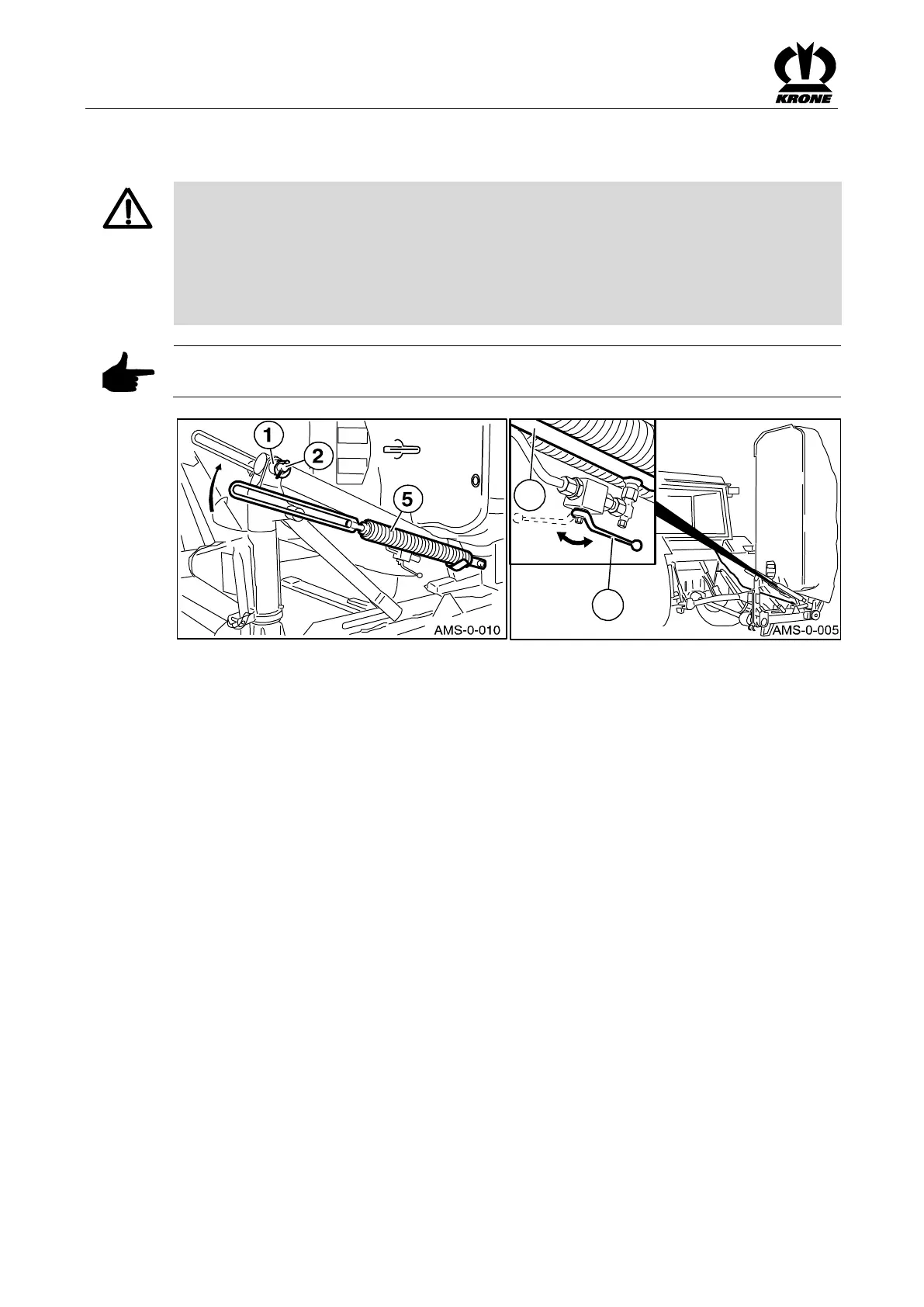

Fig.

Pos: 19.27.6 /B A/Inbetriebnahm e/Mähwerke AM Baureihe/E ntlastungsfeder/En tlastungsfeder T ext AM-S @ 73\mod_1308 305347168_78. docx @ 655 578 @ @ 1

• Bring the machine into the transport position

• Closing the Shut-Off Valve (3) on the Hydraulic Cylinder (4)

• Remove the cotter pin (1) and washer (2) from the upper retaining bolt (spacer sleeve

remains on the bolt)

• Push the compensation spring (5) onto the retaining bolt

• Mount the washer and cotter pin again
