Start-up
29
Pos: 19.1 /Übersc hriften/Übersc hriften 1/F-J/I nbetriebnahme @ 0\mod_11 96327075811_7 8.docx @ 6375 @ 1 @ 1
6 Start-up
Pos: 19.2 /Übersc hriften/Übersc hriften 2/A-E/A Anbau an d en Traktor @ 0\ mod_11997178 45194_78.doc x @ 34039 @ 2 @ 1
6.1 Mounting onto the Tractor
Pos: 19.3 /BA/Sich erheit/6. Über arbeitete War nhinweise/Warnu ng - Unbea bsichtigtes Abkup peln angebaut e @ 291\mod_ 14104272538 66_78.docx @ 2294307 @ @ 1
Danger! - Inadvertent uncoupling of the machine during road travel or work.
Effect: Danger to life, serious injuries or serious damage to the machine.
• Use extreme caution when attaching or detaching devices to or from the tractor! The
accident prevention regulations must be complied with absolutely.
• The lower suspension arms on the tractor must be fixed in position
with the retaining chains or bars to prevent the machine from swivelling out during transport
or work. If the lower suspension arms (1) are equipped with catch hooks, the following
items must be taken into consideration:
Especially in the headland position, high forces develop in the lower suspension arm bolts (3)
that act upwards in the left-hand hook.
For this reason, the catch hooks must be in a flawless condition.
Additionally, the catch hooks must be secured in the provided locking hole (4) against
unwanted opening after the machine has been connected to the tractor.
Pos: 19.4 /BA/Sich erheit/7. Gef ahrenhinweise alt/Mähwerke/W arnung - Achsl asten Beeintr ächtigung der Le nkfähigkeit @ 9\mod_12208 66555985_78.d ocx @ 128119 @ @ 1
Warning - Impairment of the steerability of the tractor.
Effect: Damage to the tractor or the machine.
The attachment of implements at the front and rear must not cause exceedance of the max.
permissible weight, of the permissible axle loads and of the carrying capacities of the tractor
tyres. Even with a fitted rear-mounted accessory unit, the front axle must always be loaded with
a minimum 20% service weight of the tractor.
Make sure that these prerequisites are met prior to driving.
Pos: 19.5 /BA/Ersti nbetriebnah me/Mähwer ke AM Baureihe/Anku ppeln Bild AM 2 03S/243S/2 83S/323S @ 69\ mod_13050 38001898_78.d ocx @ 6327 48 @ @ 1

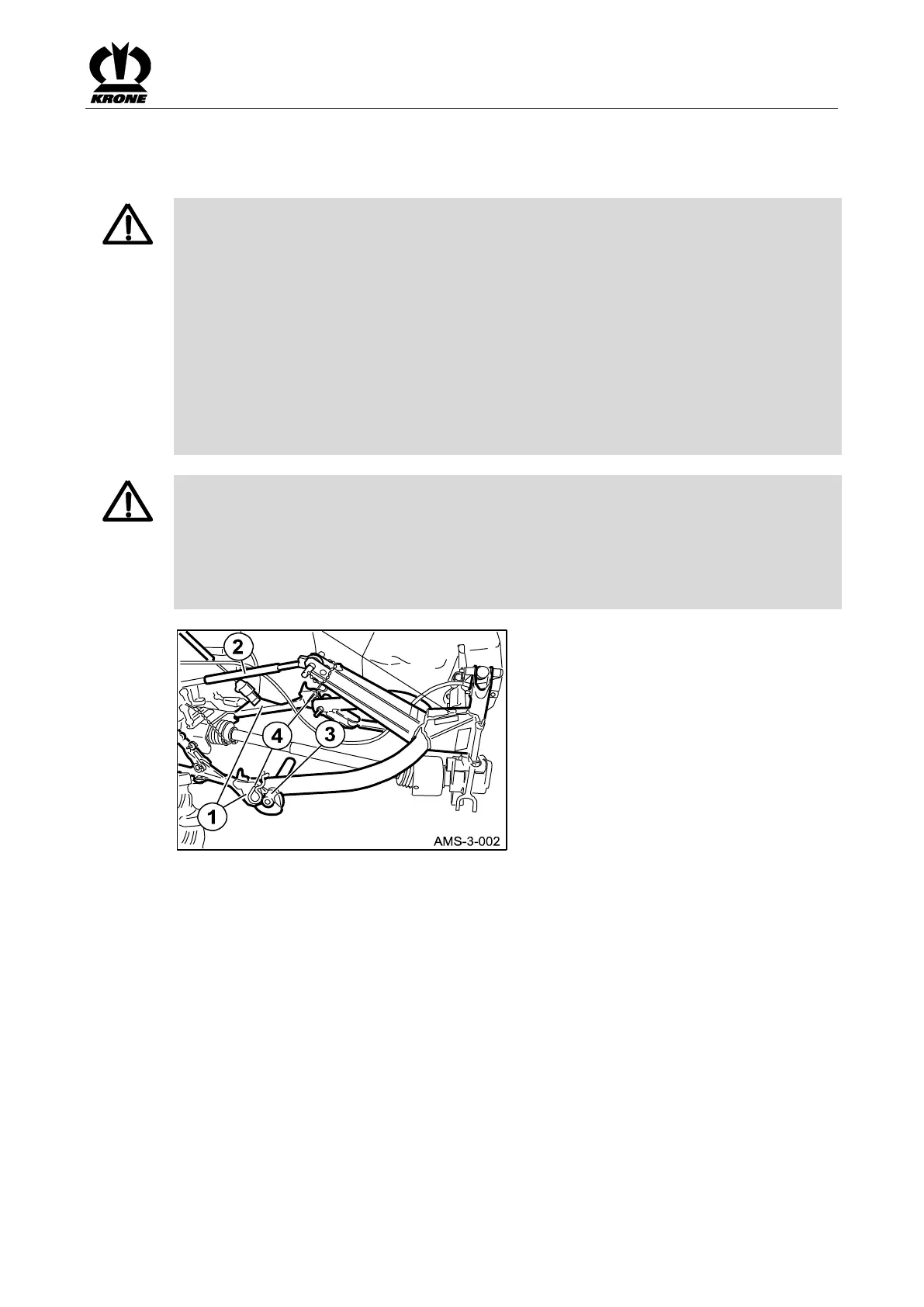

Fig.
Pos: 19.6 /BA/Ersti nbetriebnah me/Mähwer ke AM Baureihe/Anku ppeln Te xt AM 203S/243S/28 3S/323S @ 69\mod_1 30503811563 5_78.docx @ 6 32776 @ @ 1
• Attach the machine onto the lower suspension arm (1) of the tractor
• Couple the top suspension arm (2) and secure it in place
Pos: 19.7 /Layo ut Module /---------------Seitenumbruch---------------- @ 0\mod_119617 5311226_0.docx @ 4165 @ @ 1
