Krone AM 283 S - Blade Quick-Fit Device: Blade Fitting Procedure

Maintenance
61
Pos: 29.34.25 /Ü berschriften/Ü berschriften 3/K- O/MMessersch nellverschluss @ 0\mod_1 197271019859_ 78.docx @ 1659 7 @ 3 @ 1
10.12.2 Blade Quick-Fit Device
Pos: 29.34.26 / BA/Wartung/Mä hwerke/Mess erschraub / M esserschnellversc hluss/Beschr eibung Messer wechsel Messersch nellverschluss AM @ 70\m od_130517921 0423_78.docx @ 635785 @ @ 1

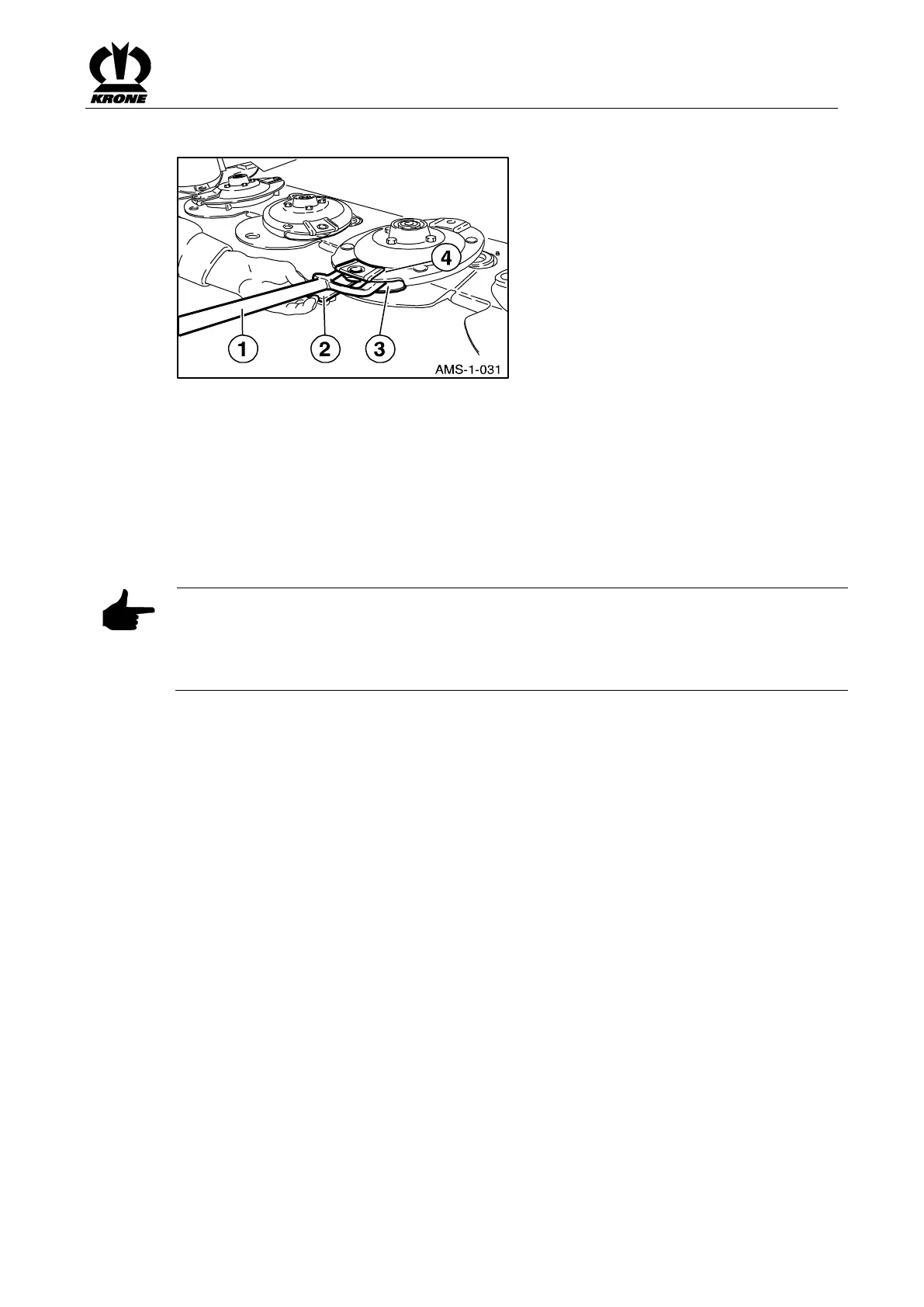

Fig.
35
• Fold up the protective device
• Clean the area
• Remove damaged or worn blades
• Push the special tool (1) (blade key) between the cutter disc (4) and leaf spring (3) and
press down with one hand
• Guide a new blade (2) onto the retaining bolt and allow the blade key to return upwards
• Repeat this process for all blades, including those on the blade drums
• After fitting the blades, fold the protective device down again
Pos: 29.34.27 / BA/Wartung/Mä hwerke/Messerschr aub / Mess erschnellversc hluss/Beschr eibung Messer wechsel Mess erschnellverschluss Hi nweis @ 7 2\mod_13062 23027118_78.d ocx @ 644069 @ @ 1
Note
• The cutter blades of anticlockwise rotating cutting discs / blade drums are different to those
of clockwise rotating ones. Make certain the direction of rotation is correct when installing!
• The arrow on the cutter blades must match the direction of rotation of the corresponding
cutting discs / blade drums
Pos: 29.34.28 / BA/Wartung/Mä hwerke/Messerschr aub / M esserschnellversc hluss/Beschr eibung Messer wechsel Best.-Nr. @ 72\mod_1 30622176385 8_78.docx @ 6440 41 @ @ 1
Order No. for clockwise rotating blade: 139-889
Order No. for anticlockwise rotating blade: 139-888
Pos: 29.34.29 / BA/Wartung/Mä hwerke/Messerschr aub / M esserschnellversc hluss/Beschr eibung Messer wechsel alternati v Best.-Nr. @ 72\mod_1306 223454041_78. docx @ 644097 @ @ 1
Alternatively:
Order No. for roof-shaped blade (clockwise and anticlockwise threading): 139 800
