9.2 Setting the Relief Springs

Pos: 27.8 /BA/Sich erheit/7. Gefa hrenhinweise alt /Mähwerke/Ge fahr - Einstell ung an den En tlastungsfedern @ 0\mod_119 6751594562_ 78.docx @ 125 75 @ @ 1

Danger! - Setting on the compensation springs

Effect: Danger to life or serious injuries

• The compensation springs must only be removed in transport position. In the working

position the compensation springs are subject to high tensile stress.

• Severe injury can be caused if the compensation springs are removed while in the working

position.

• The lower threaded blocks on the compensation springs must be fully screwed in.

Pos: 27.9 /BA/Eins tellungen/Mä hwerke/Eas yCut/Bodendruc k/Bodendruck allge meiner Te xt alle EC @ 0\ mod_1196667 271181_78.docx @ 10190 @ @ 1

The ground pressure for the cutter bar is adjusted to local conditions by means of the

compensation springs. In order to protect the sward the load on the mowing spar must be

relieved so that it does not jump when mowing, yet does not leave any skid marks on the

ground.

Pos: 27.10 /BA/Ei nstellungen/M ähwerke/Mähw erke AM Baureih e/Einstellen der Entlastungsf eder(n) Bild AM- S Baureihe @ 69\mod_1 305107338880_ 78.docx @ 6342 01 @ @ 1

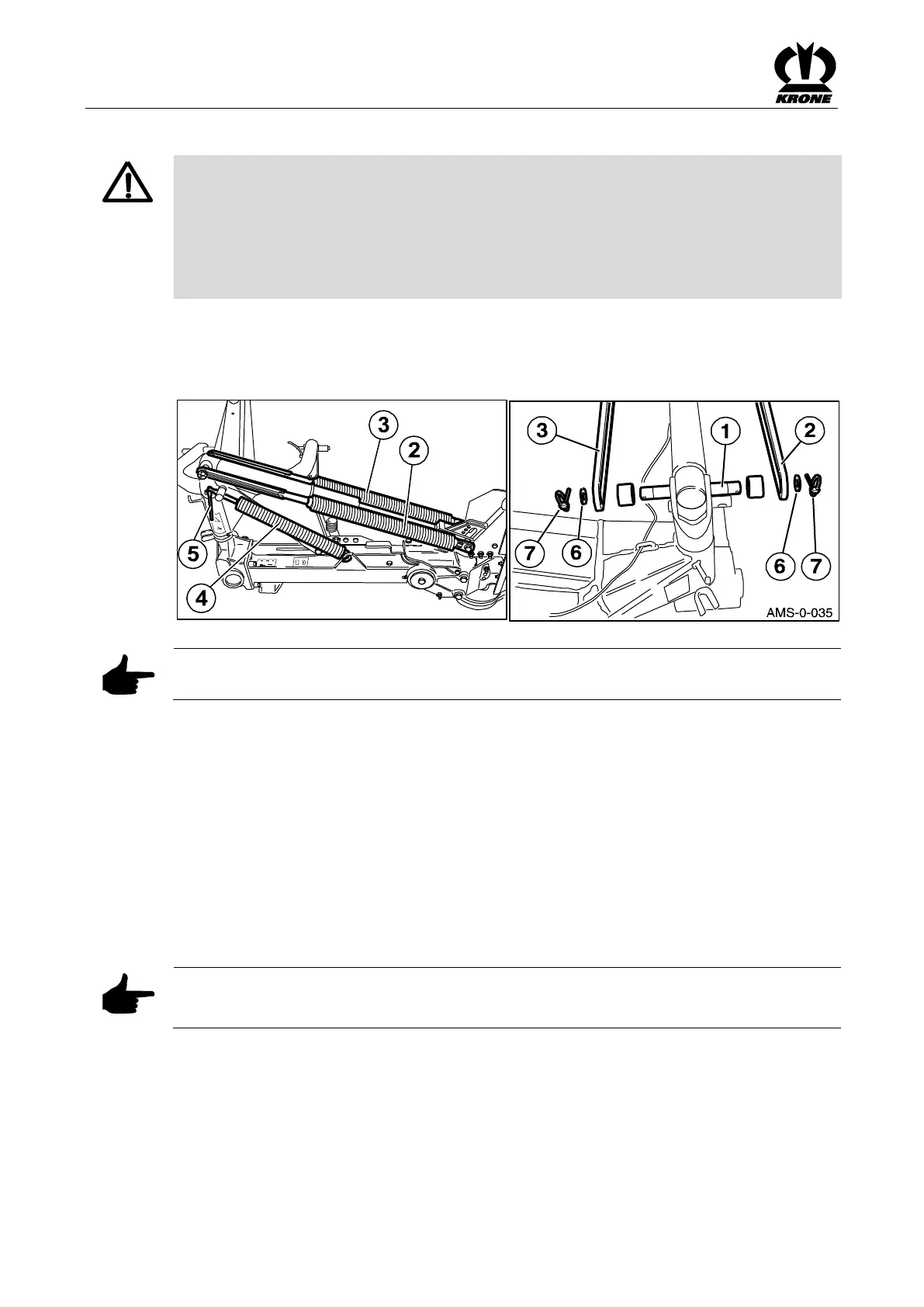

AMS-0-051

Fig.

Pos: 27.11 /BA/Ei nstellungen/M ähwerke/Mähw erke AM Baureih e/Hinweis Die Fe dern (2) und (3) entlasten de n Mähholm an der Außens eite. @ 73\ mod_13082289010 18_78.docx @ 655316 @ @ 1

Note

Springs (2) and (3) relieve the cutter bar on the outside.

Pos: 27.12 /BA/Ei nstellungen/M ähwerke/Mähw erke AM Baureih e/Einstellen der Entlastungsf eder(n) Text AM- S Baurei he @ 69\mod_13 05106937483 _78.docx @ 6341 74 @ @ 1

• Bring the machine into the transport position

• Close the shut-off valve on the hydraulic cylinder

• Remove the compensation springs (2,3) in the transport position of the disc mower from the

top retaining bolt (1)

• Turn the upper adjustment pieces to change the length

The further the adjustment pieces are screwed in, the greater the relief on the mowing

unit.

• After the setting is made, attach the compensation spring on the retaining bolt again and

secure it with a washer (6) and cotter pin (7)

Pos: 27.13 /BA/Ei nstellungen/M ähwerke/Mähw erke AM Baureih e/Hinweis bei z wei Entlastung sfedern beide gl eich einst ellen @ 69\mo d_13051073746 13_78.docx @ 6 34228 @ @ 1

Note

In disc mowers with two compensation springs, the two compensation springs must be set to

the same length.
