Operation
35
Pos: 23.1 /Übersc hriften/Übersc hriften 1/A-E/B edienung @ 0 \mod_1199789 505403_78.doc x @ 34825 @ 1 @ 1
8 Operation
Pos: 23.2 /Übersc hriften/Übersc hriften 2/U-Z/V Von Transport i n Arbeitsstell ung @ 2\mod_1 202466185276 _78.docx @ 59662 @ 2 @ 1
8.1 From transport into working position
Pos: 23.3 /BA/Sich erheit/7. Gefa hrenhinweise alt /Mähwerke/Ge fahr - Abse nken des Mä hwerks in Arbeitsstell ung EC 280/3 20 @ 9\mo d_122087924479 8_78.docx @ 1 28439 @ @ 1
Danger! - Lowering the mowing unit into the working position
Effect: Danger to life, injuries or damage to the machine.
• Lower the mowing unit only when you are absolutely sure that neither persons, animals nor
objects are in the swivel range of the mowing unit.
• Switch on the PTO only when the mowing unit is resting on the ground.
Pos: 23.4 /BA/Sich erheit/7. Gefa hrenhinweise alt /Mähwerke/Ge fahr - Verrieg elung prüfen EC 280/320 @ 9 \mod_1220879 526173_78.do cx @ 128463 @ @ 1
Danger! - Check whether the locking mechanism (1) is folded down completely.
Effect: Danger to life, serious injuries or serious damage to the machine.
The folded-down locking mechanism secures the mowing unit against inadvertent lifting while
the machine is running.
Pos: 23.5 /BA/Bedi enung /Mäh werke AM B aureihe/Von Trans port in Arbeitsst ellung Bild AM 203S/243S/2 83S/323S @ 69\ mod_130510 1382913_78.doc x @ 633564 @ @ 1

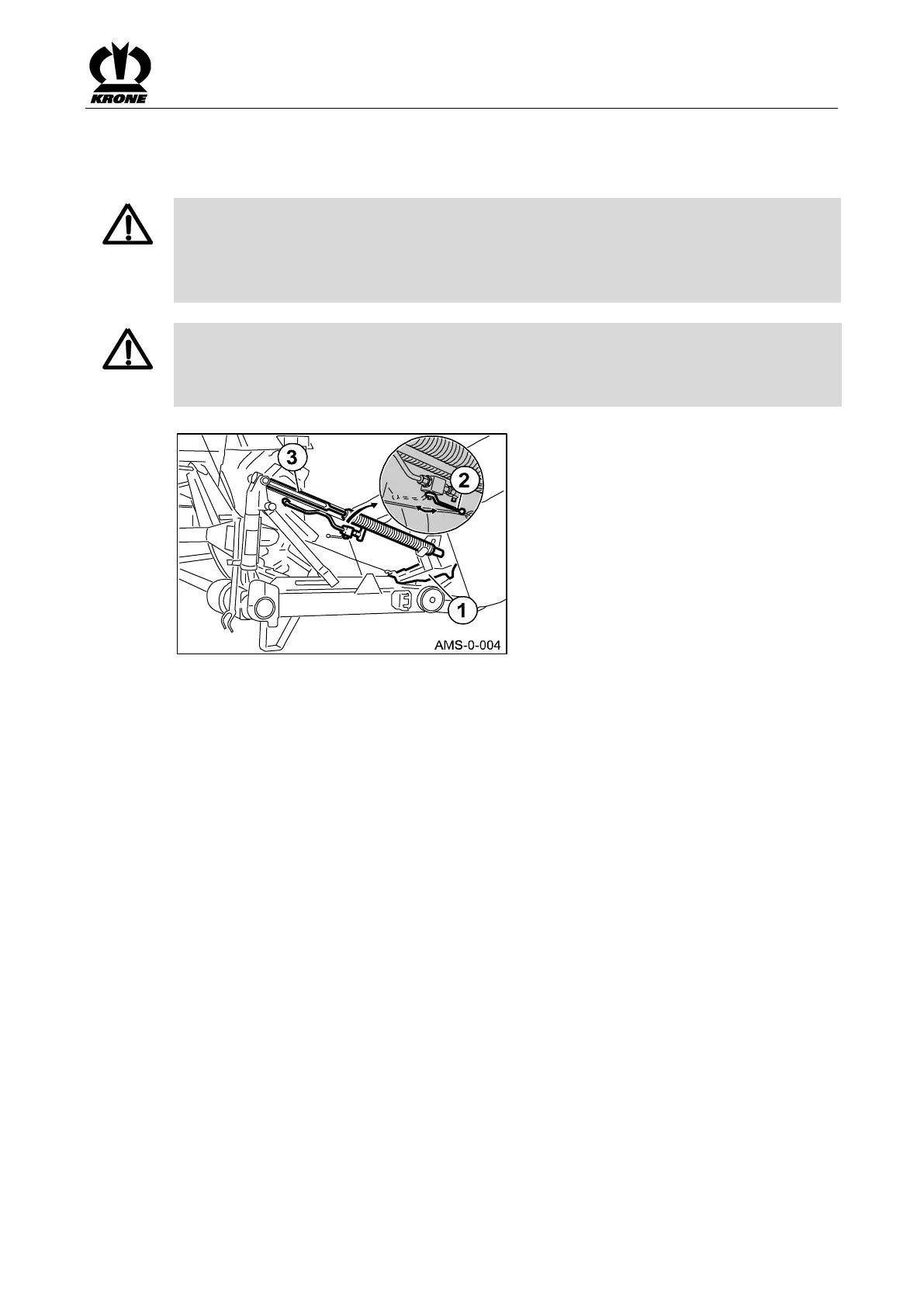

Fig.
Pos: 23.6 /BA/ Bedienung /Mä hwerke AM B aureihe/Von Tr ansport in Arb eitsstellung Te xt AM 203S/243S/2 83S/323S @ 69\mod_130 5101387819_7 8.docx @ 63 3592 @ @ 1
• Open the hydraulic shut-off valve (2) on the hydraulic cylinder (3)
• To lower the mowing unit, pull up the lock (1) from the tractor using the actuating rope
• Activate the double action control valve on the tractor to slowly lower the mowing unit
Pos: 23.7 /Layo ut Module /---------------Seitenumbruch---------------- @ 0\mod_119617 5311226_0.docx @ 4165 @ @ 1
