5.4 PTO shaft
Pos: 17.27 /Übersc hriften/Überschrif ten 3/K-O/ LLängenanpas sung @ 1\ mod_12016876328 10_78.docx @ 53589 @ 3 @ 1
5.4.1 Length adjustment
Pos: 17.28 /BA/Ers tinbetriebna hme/Mähwerke AM Baureihe/Lä ngenanpassu ng Bild AM_S Ba ureihe @ 72\ mod_13074 27230214_78.doc x @ 647591 @ @ 1

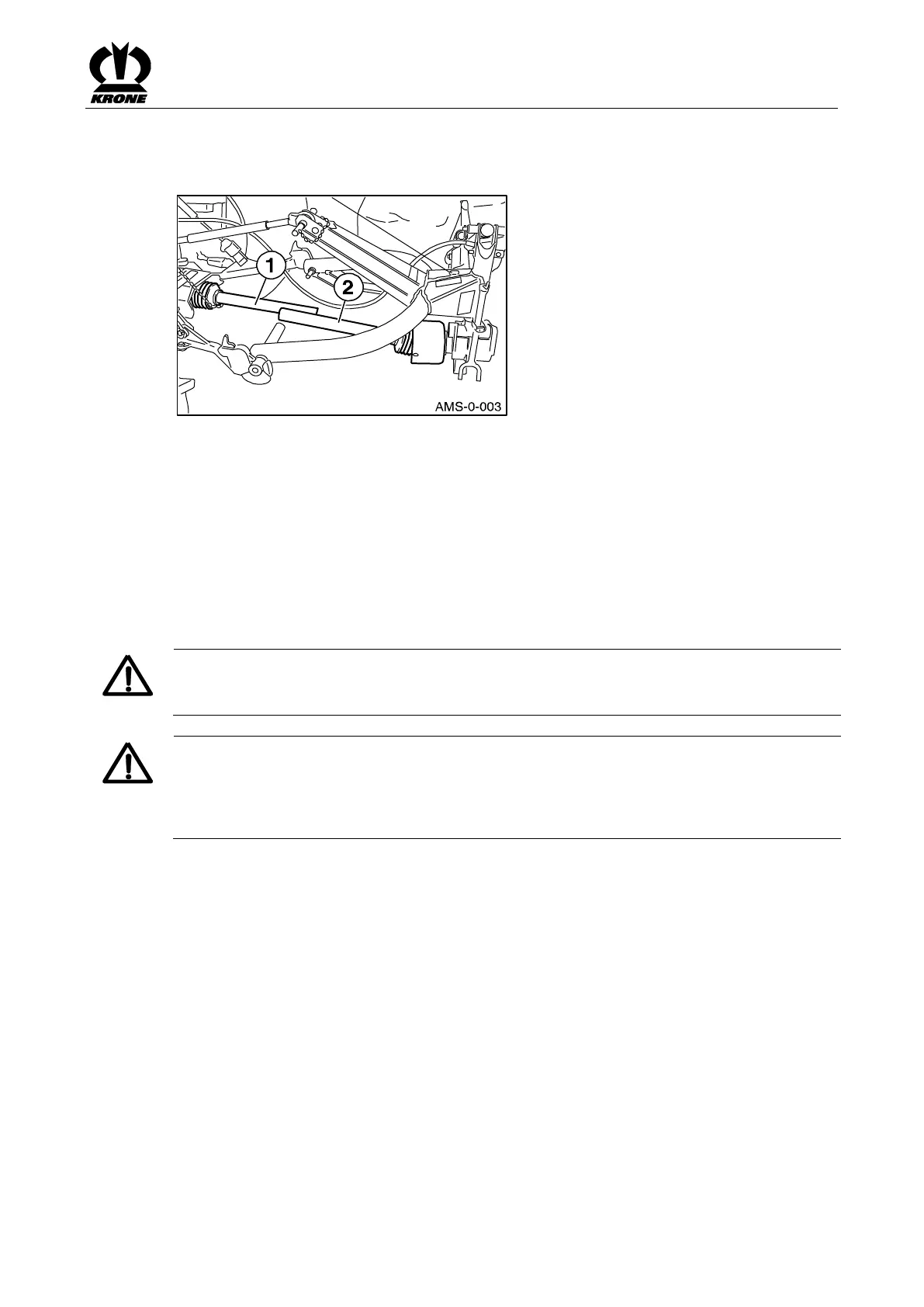

Fig.
Pos: 17.29 /BA/Ers tinbetriebna hme/Gelenkwelle/M ähwerkeLä ngenanpassung _ohne Pfahlsic herung @ 375\ mod_14425 57605805_78.d ocx @ 272322 7 @ @ 1
The machine is connected to three-point linkage of tractor.
The length of the universal shaft (1) must be adapted.
• Disassemble universal shaft.
• Install one half on tractor side (1) and the other one on machine side (2).
• Check overlap of section tubes and guard tubes.
• Shorten section tubes and guard tubes so that the universal shaft can move freely in the
shortest operating position.
• For further procedure, please refer to the operating instructions of universal shaft
manufacturer.
Pos: 17.30 /BA/Sic herheit/Gele nkwelle/Achtung - Sch wenkbereich/Freir aum überprüfe n @ 9\mod_12 20536308930 _78.docx @ 1268 98 @ @ 1
Caution! - Swivel range of the PTO shaft
Effect: Damage to the tractor or the machine
• Check the swivel range and clearance of the PTO shaft!
Pos: 17.31 /BA/Ers tinbetriebna hme/Gelenkwelle/Tr aktorwechs el Gelenkwellenl änge beachte n @ 6\mod_ 12149969385 91_78.docx @ 97 742 @ @ 1
Caution! - Changing the tractor
Effect: Damage to the machine
When using the machine for the first time and whenever changing the tractor Check PTO shaft
for the correct length. If the length of the PTO shaft does not match the tractor, always observe
the chapter entitled "Adjusting the length of the PTO shaft".
