Driving and Transport
34
Pos: 21.7 /BA/Fa hren und Transp ort/Mähwer ke AM Baureihe/ Fahren-Trans port Bild AM 20 3S/243S/283S/ 323S @ 69\m od_1305099177 914_78.doc x @ 633282 @ @ 1
Fig.
Pos: 21.8 /BA/Fa hren und Transp ort/Mähwer ke AM Baureihe/Fa hren/Transport T ext AM 203S/ 243S/283S/32 3S @ 69\ mod_13050991 87132_78.doc x @ 633310 @ @ 1

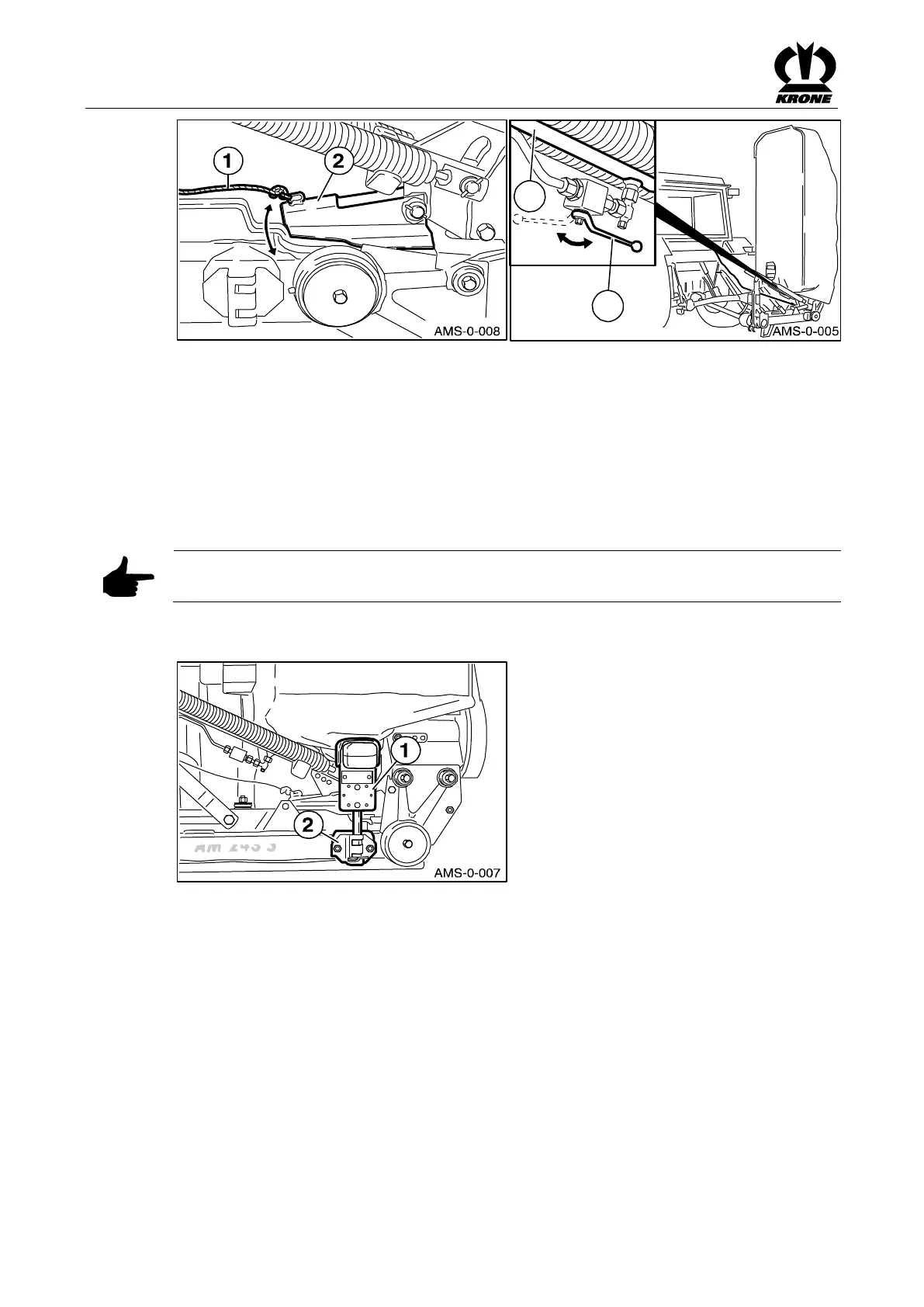

During transport / road travel the disc mower must be folded up.
To do this:
• To release the locking mechanism (2), pull the actuating rope (1) up from the tractor
• Actuate the control valve for the hydraulic cylinder on the tractor. The mowing unit lifts up
into the transport position
• Lower the lock (2)
• Closing the Hydraulic Shut-Off Valve (3) on the Hydraulic Cylinder (4)
Note
Locked position of the shut-off valve = hand lever 90° in the direction of the line
Pos: 21.9 /Übersc hriften/Übersc hriften 2/A-E/B Beleuchtung @ 0\mod_1195 658399935_7 8.docx @ 1881 @ 2 @ 1
7.2 Lighting
Pos: 21.10 /BA/F ahren und Trans port/Mähwer ke AM Baureihe/ Beleuchtung Bil d AM-S Baurei he @ 72\m od_1307522343 756_78.docx @ 651616 @ @ 1
Fig.
Pos: 21.11 /BA/F ahren und Trans port/Mähwer ke AM Baureihe/ Beleuchtung Text @ 69\ mod_13051004793 50_78.docx @ 633336 @ @ 1
• Push the lighting (1) into the light holder (2) from above
• Secure it with a cotter pin
• Check function
