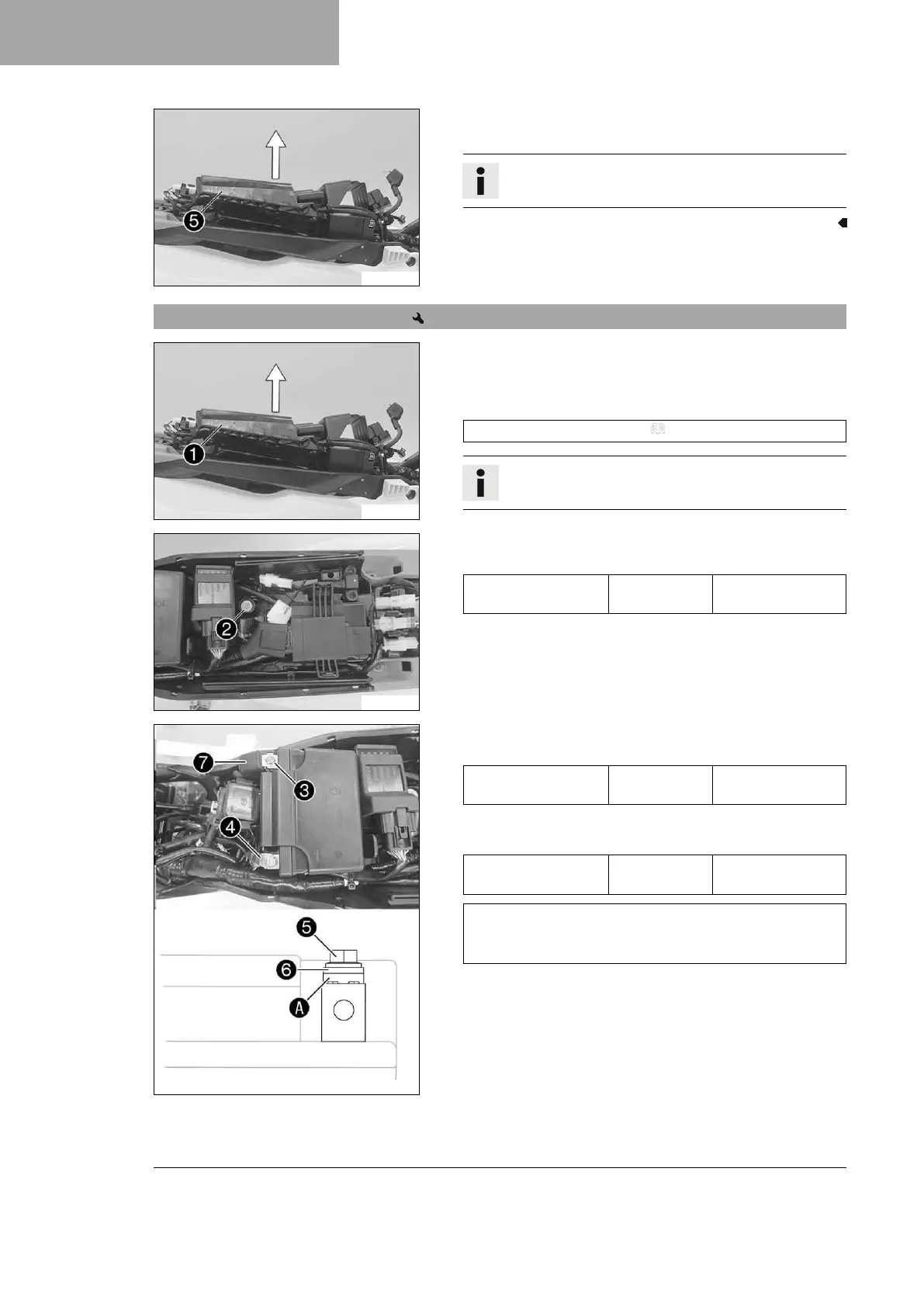

15 ELECTRICAL SYSTEM
110
W00358-10
–
Pull up battery holding bracket
5
and remove the 12-V bat-
tery to the rear.
Info
Pay attention to the wiring harness.
15.2 Installing the 12-V battery
W00358-11
Main work
–
Pull up battery holding bracket
1
, insert the 12-V battery
into the battery compartment with the terminals facing upward
and secure with battery holding bracket
1
.
12-V battery (HJTZ5S-FP-C) ( p. 154)
Info
Ensure that the cable is routed correctly.
W00357-11
–
Mount and tighten screw
2
.
Guideline
Screw, battery sup-
port bracket
M6 6 Nm (4.4 lbf ft)
W00359-10
–
Connect positive cable
3
to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
–
Connect negative cable
4
to the 12 V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Contact disks
A
must be mounted under screws
5
and
cable sockets
6
with the claws toward the battery termi-
nal.
–
Slide positive terminal cover
7
over the positive terminal.
