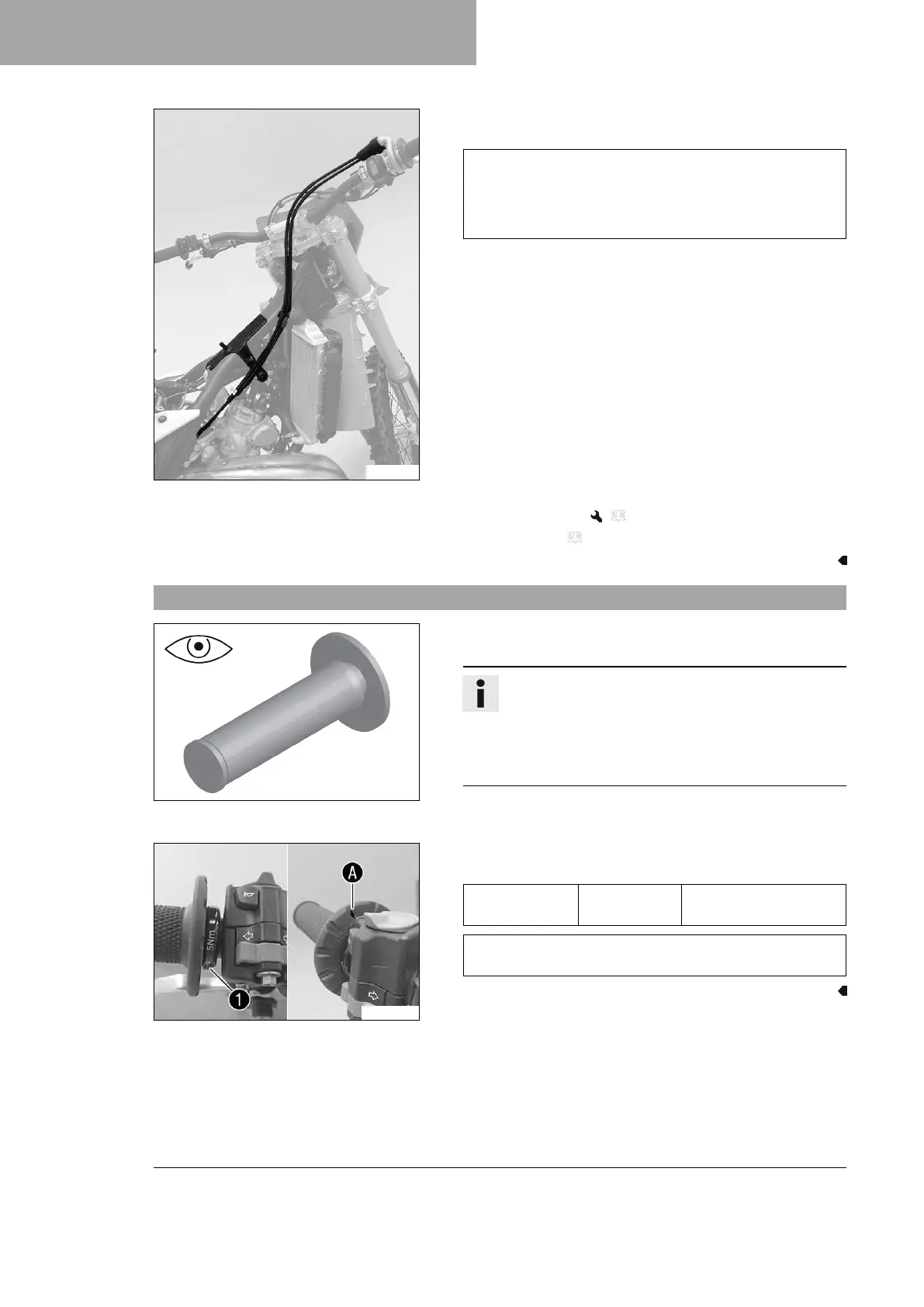

12 SERVICE WORK ON THE CHASSIS
86
I00443-02
Main work
– Check the throttle cable routing.
Both throttle cables must be routed, side by side, on the
back of the handlebars, above the fuel tank roller on the
right of the frame to the throttle valve body. Both throttle
cables must be secured behind the rubber strap of the fuel
tank support.
» If the throttle cable routing is not as specified:
– Correct the throttle cable routing.
Finishing work
– Install the fuel tank. ( p. 78)
– Mount the seat. ( p. 71)
12.41 Checking the rubber grip
401197-01
– Check the rubber grips on the handlebar for damage, wear,
and looseness.
Info
The rubber grips are vulcanized onto a sleeve on the
left and onto the handle tube of the throttle grip on the
right. The left sleeve is clamped onto the handlebar.
The rubber grip can only be replaced with the sleeve or
the throttle tube.
» If a rubber grip is damaged or worn:
– Change the rubber grip.
W00325-10
–
Check that screw
1
is firmly seated.
Guideline
Screw, fixed
grip
M4 5 Nm (3.7 lbf ft)
Loctite
®
243™
Diamond
A
must be positioned visibly as shown in the fig-
ure.
