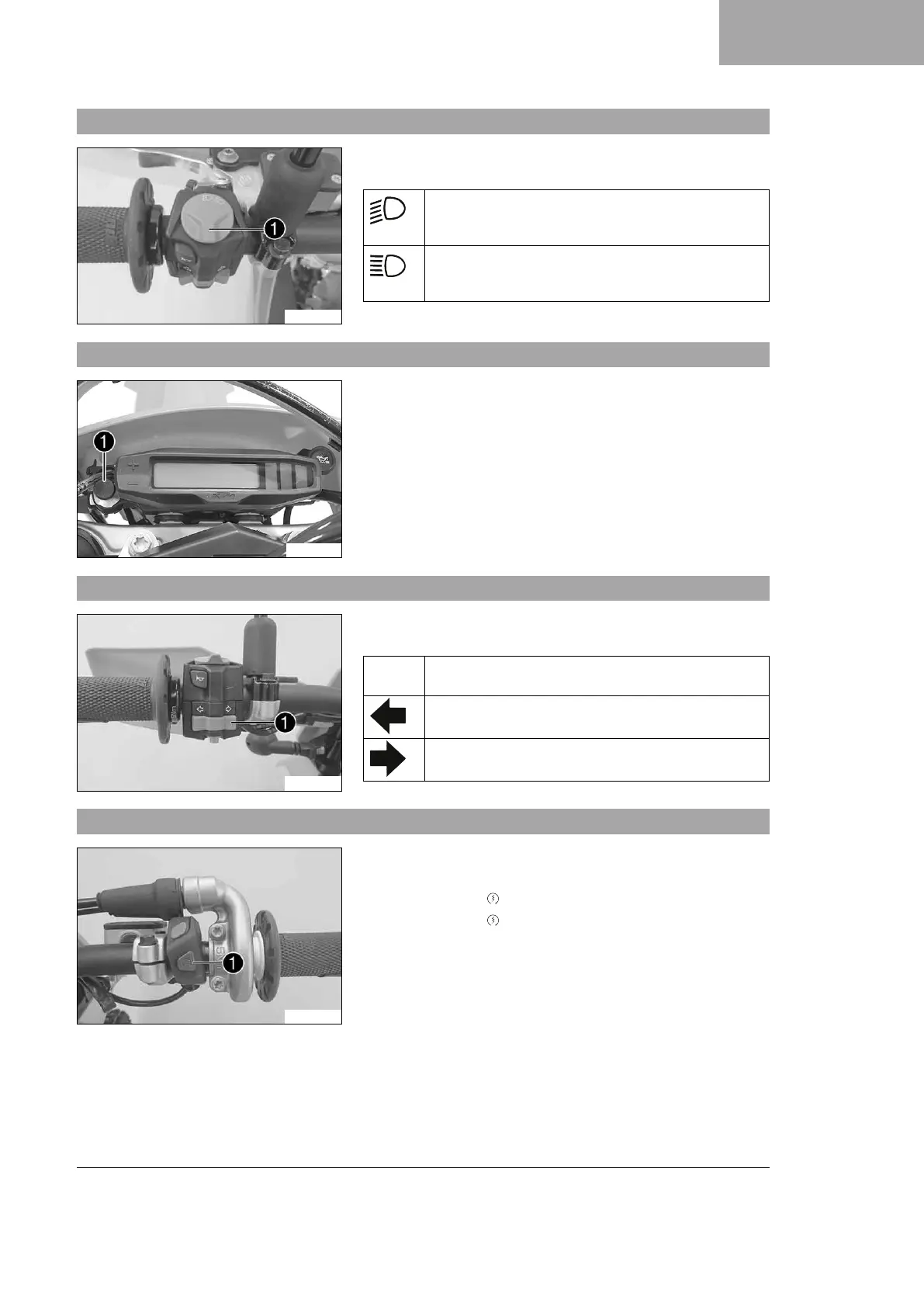

6.5 Light switch (All EXC models)
W00293-10
Light switch
1
is fitted on the left side of the handlebar.
Possible states
Low beam on – Light switch is in the central posi-
tion. In this position, the low beam and tail light are
switched on.
High beam on – The light switch is turned counter-
clockwise. In this position, the high beam and the tail
light are switched on.
6.6 Light switch (All XC‑W models)
E00858-10
The light switch
1
is located to the left of the combination
instrument.
Possible states
• Light off – Light switch is pressed in up to the stop. In this
position, the light is switched off.
• Light on – Light switch is pulled out to the stop. In this posi-
tion, the low beam and tail light are switched on.
6.7 Turn signal switch (All EXC models)
W00290-10
Turn signal switch
1
is fitted on the left side of the handlebar.
Possible states
Turn signal off – The turn signal switch is in the cen-
tral position.
Left turn signal, on – The turn signal switch is turned
to the left.
Right turn signal, on – The turn signal switch is
turned to the right.
6.8 Start button
W00296-11
Start button
1
is fitted on the right side of the handlebar.
Possible states
• The start button
is in the basic position
• The start button is pressed – In this position, the starter
motor is actuated.
