12 SERVICE WORK ON THE CHASSIS
72

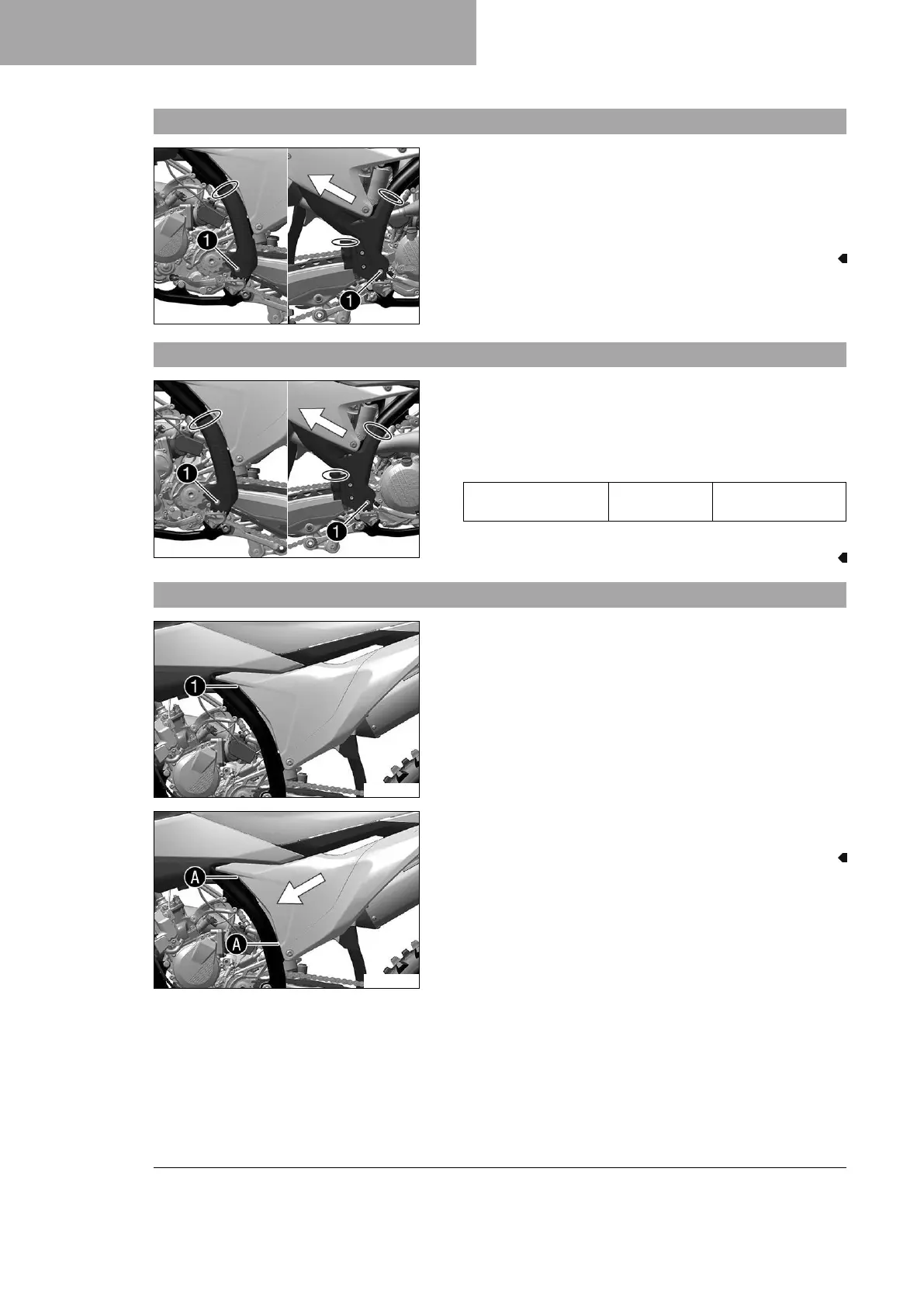

12.20 Removing the frame protector
S05536-11
– Remove the cable ties.
–
Remove screws
1
with the bushings.
– Take off the left frame protector.
– Push the right frame protector to the front and take off at the
bottom.
12.21 Installing the frame protector
S05492-11
– Position the left frame protector.
– Insert the right frame protector from below and push it to the
rear.
–
Mount screws
1
with the bushings and tighten.
Guideline
Screw, frame protec-
tor
M5 3 Nm (2.2 lbf ft)
– Secure the frame protector with cable ties.
12.22 Removing the air filter box cover
S05540-10
Condition
The air filter box cover is secured.
–
Remove screw
1
.
S05541-10
–
Pull off the air filter box cover in area
A
and push it sideways
and forward. Take off the air filter box cover.
