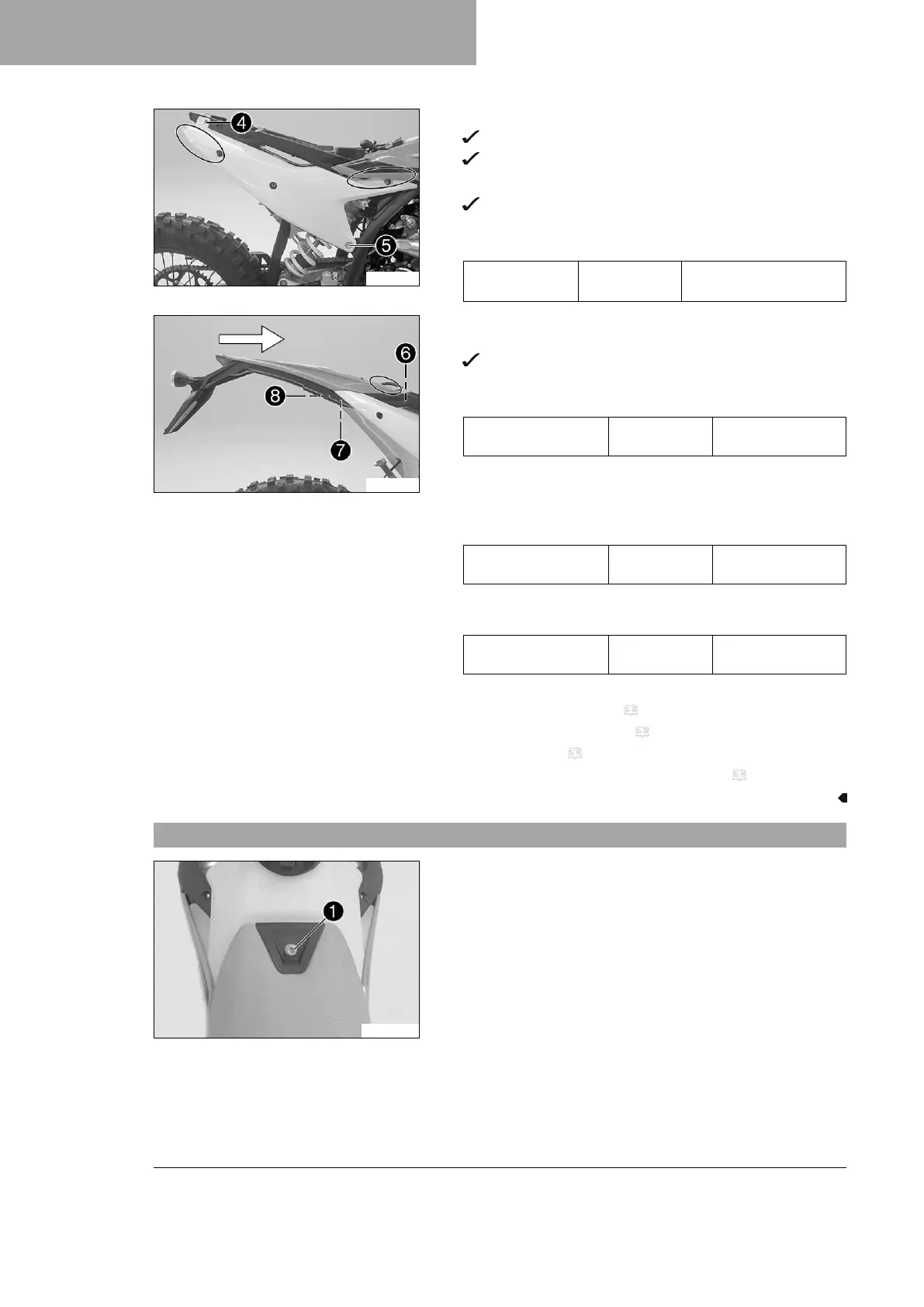

12 SERVICE WORK ON THE CHASSIS
70
I00439-11
– Position the right side cover on the tail section.
Position the right side cover correctly behind the spoiler.
Ensure that it is correctly seated on the tail section.
–
Mount and tighten screw
4
.
Tighten screw hand-tight.
–
Mount and tighten screw
5
.
Guideline
Screw, sub-
frame, top
M8 35 Nm (25.8 lbf ft)
Loctite
®
243™
I00442-10
– Slide the license plate holder with tail light carefully onto the
tail section.
Pay attention to cable routing.
–
Fit and tighten screws
6
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Connect the plug-in connections for the tail light and turn sig-
nals and secure and stow them well.
–
Mount and tighten screws
7
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Fit and tighten screws
8
.
Guideline
Remaining screws,
chassis
EJOT PT
®
K60x25‑Z
2 Nm (1.5 lbf ft)
Finishing work
– Install the main silencer. ( p. 75)
– Install the frame protector. ( p. 72)
– Mount the seat. ( p. 71)
– Remove the motorcycle from the lift stand. ( p. 59)
12.18 Removing the seat
W00301-10
–
Remove screw
1
.
