12 SERVICE WORK ON THE CHASSIS
62

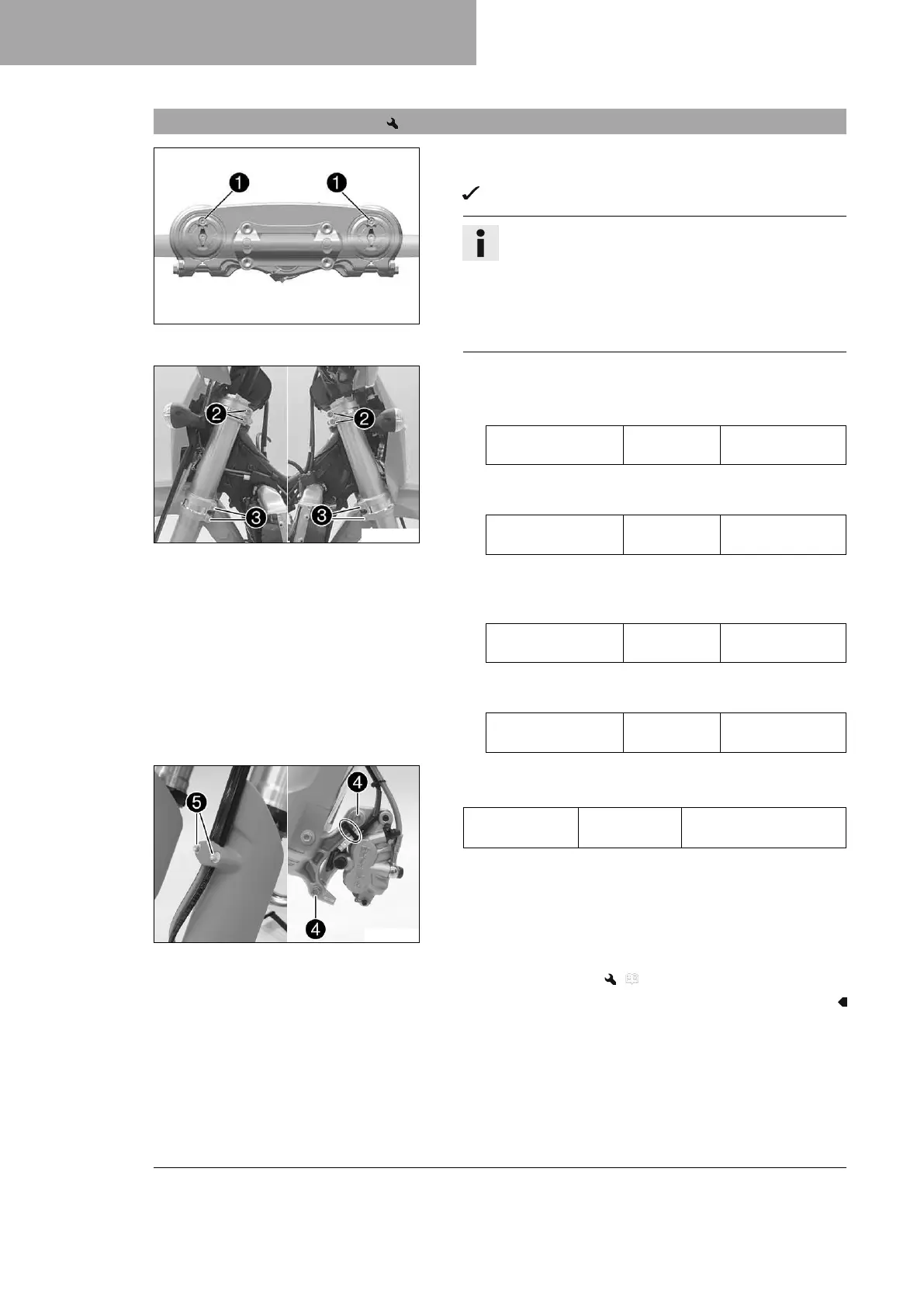

12.8 Installing the fork legs
W00297-11
Main work
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
The rebound damping is located on the bottom of fork
leg REB (red adjuster). The compression damping is
located at the top of fork leg COMP (white adjuster).
Grooves are milled into the side of the upper end of the
fork legs. The second milled groove (from the top) must
be flush with the upper edge of the upper triple clamp.
W00341-11
(Option: Triple clamp forged)
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 20 Nm
(14.8 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom
triple clamp
M8 15 Nm
(11.1 lbf ft)
(Option: Triple clamp milled)
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 17 Nm
(12.5 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom
triple clamp
M8 12 Nm (8.9 lbf ft)
E00375-11
–
Position the brake caliper, and mount and tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable ties.
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
5
.
Finishing work
– Install the front wheel. ( p. 103)
