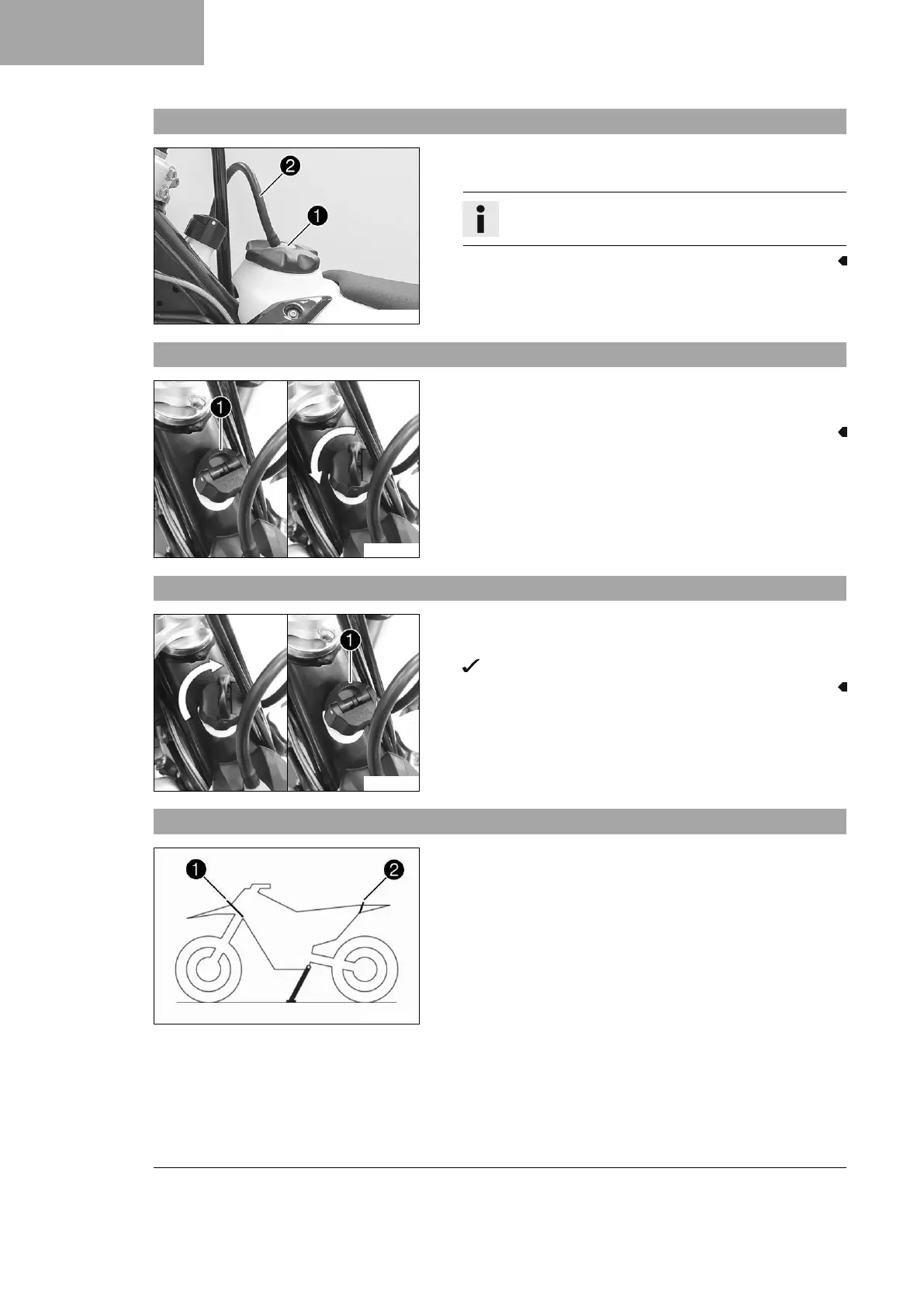

6.14 Closing the fuel tank filler cap
E00930-10
– Mount the fuel tank filler cap and turn it clockwise until
release button
1
engages.
Info
Route fuel tank breather hose
2
without kinks.
6.15 Opening 2-stroke oil tank cap
E00861-10
–
Fold loop
1
upward.
– Turn the 2-stroke oil tank cap counterclockwise and pull it up.
6.16 Closing 2-stroke oil tank cap
E00861-11
– Put the 2-stroke oil tank cap on and turn it clockwise.
–
Fold loop
1
down.
The 2-stroke oil tank cap engages.
6.17 Supporting strap (All HARDENDURO models)
S04869-10
The supporting straps are located at the front
1
and rear
2
of
the vehicle.
The vehicle can be recovered from difficult terrain using the sup-
porting straps.
