11 TUNING THE CHASSIS
52

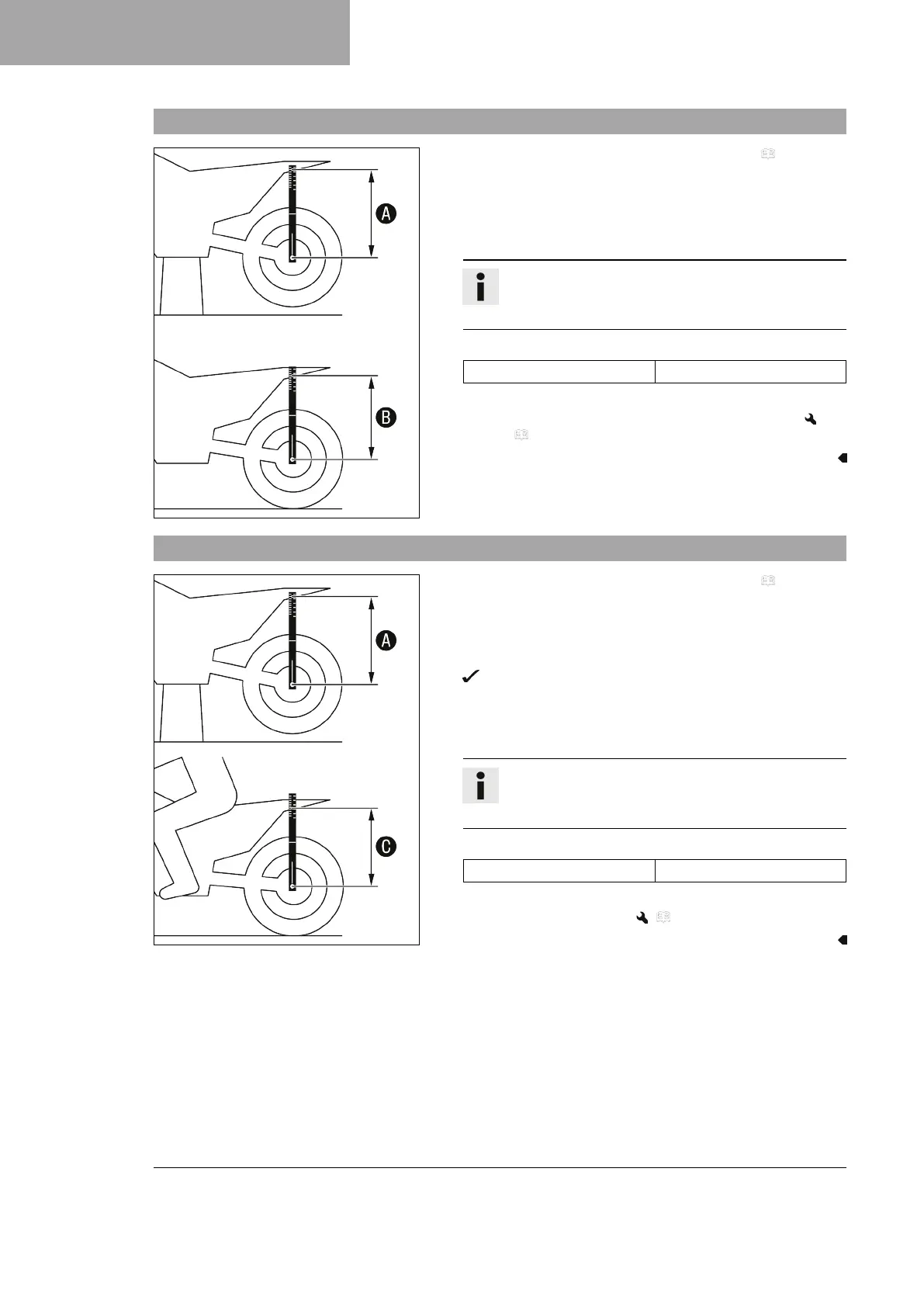

11.7 Checking the static sag of the shock absorber
402416-10
–
Measure dimension
A
of rear wheel unloaded. ( p. 51)
– Hold the motorcycle upright with aid of an assistant.
– Measure the distance again between the rear axle and mark-
ing SAG on the rear fender using the sag gage.
–
Note the value as dimension
B
.
Info
The static sag is the difference between
measurements
A
and
B
.
– Check the static sag.
Static sag 38 mm (1.5 in)
» If the static sag is less or more than the specified value:
– Adjust the spring preload of the shock absorber.
( p. 53)
11.8 Checking the rider sag of the shock absorber
402417-10
–
Measure dimension
A
of rear wheel unloaded. ( p. 51)
– With another person holding the motorcycle, the rider, wear-
ing full protective clothing, sits on the seat in a normal sitting
position (feet on footrests) and bounces up and down a few
times.
The rear wheel suspension levels out.
– Another person again measures the distance between the rear
axle and marking SAG on the rear fender using the sag gage.
–
Note the value as dimension
C
.
Info
The rider sag is the difference between
measurements
A
and
C
.
– Check the rider sag.
Riding sag 110 mm (4.33 in)
» If the rider sag differs from the specified measurement:
– Adjust the rider sag. ( p. 54)
