ELECTRICAL SYSTEM 15
113

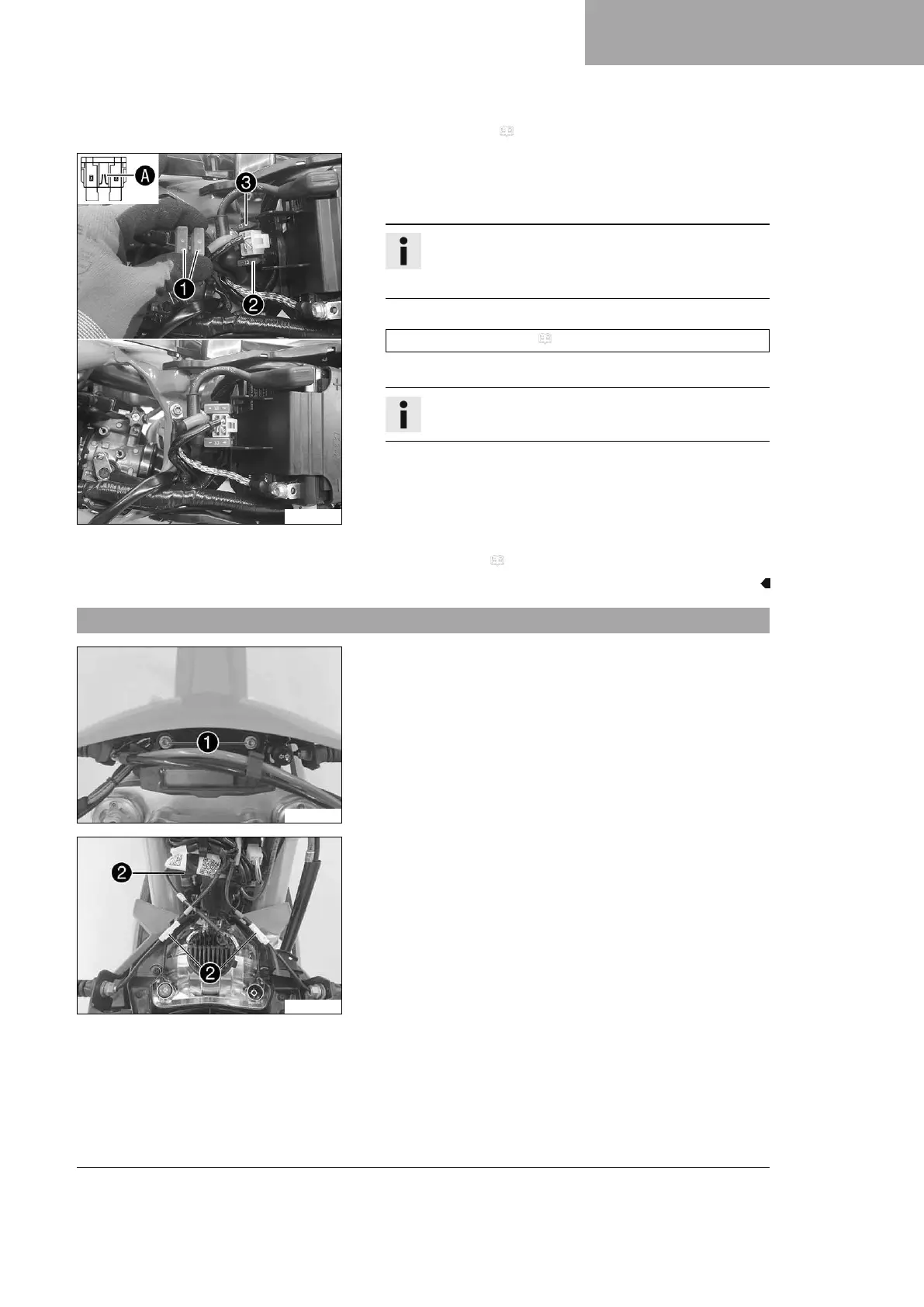

Preparatory work
– Remove the seat. ( p. 70)
W00372-10
Main work
–
Take off protection caps
1
.
–
Remove faulty main fuse
2
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
3
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109120) ( p. 154)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and route the cable.
Finishing work
– Mount the seat. ( p. 71)
15.5 Removing the headlight mask with the headlight
W00349-10
–
Release screws
1
.
– Slide the headlight mask up and swing it forward.
– Disconnect the brake line at the headlight mask.
W00350-10
(All EXC models)
–
Detach plug-in connectors
2
and take off the headlight
mask with the headlight.
