SERVICE WORK ON THE CHASSIS 12
63

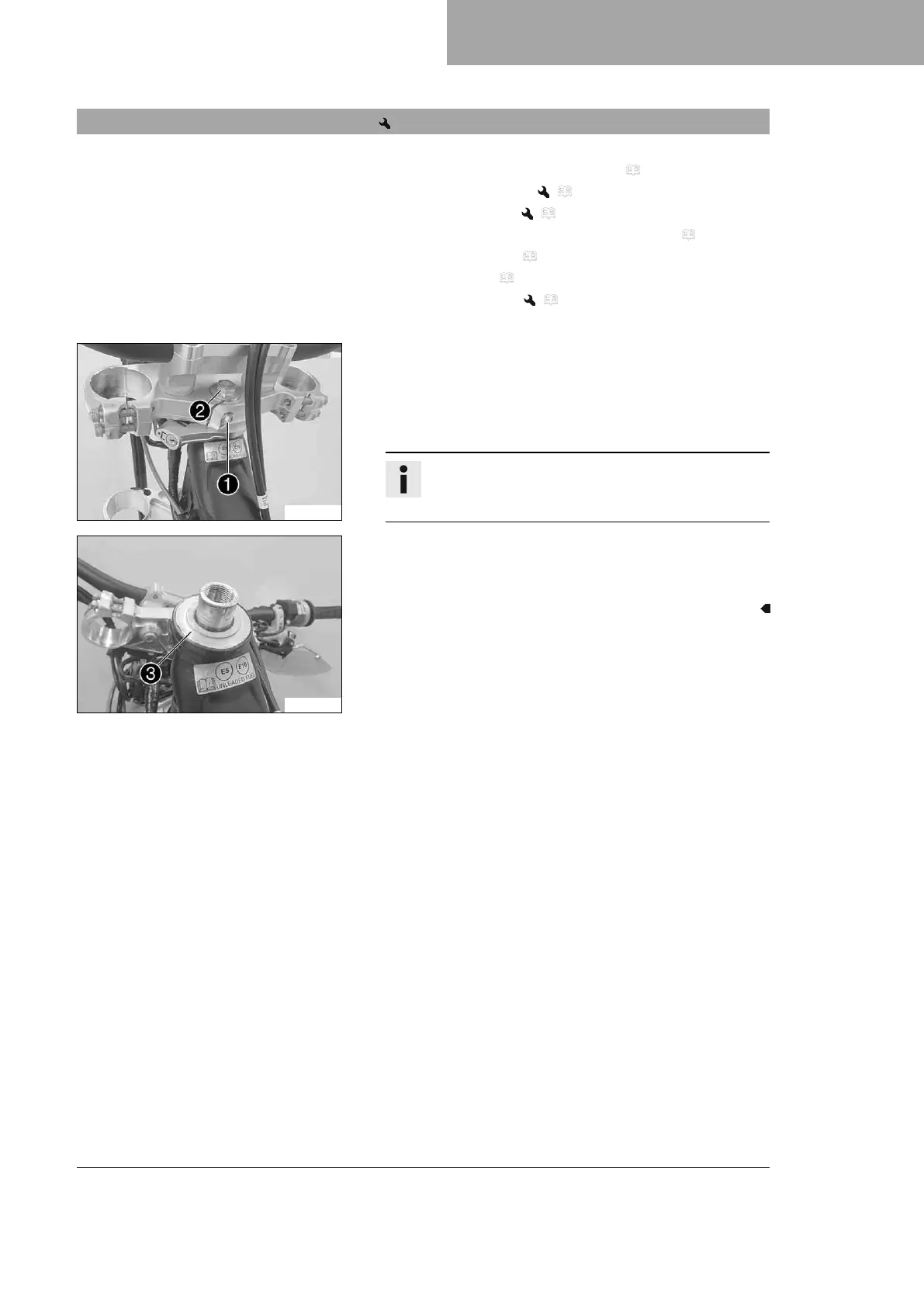

12.9 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 59)
– Remove the front wheel. ( p. 102)
– Remove the fork legs. ( p. 61)
– Remove the headlight mask with the headlight. ( p. 113)
– Remove front fender. ( p. 67)
– Remove the seat. ( p. 70)
– Remove the fuel tank. ( p. 76)
– Take off the handlebar cushion.
W00353-10
Main work
–
Loosen screw
1
.
–
Remove screw
2
.
– Take off the upper triple clamp with the handlebar and hang
them to the side.
Info
Cover the components to protect them against damage.
Do not kink the cables or lines.
W00354-10
–
Remove protective ring
3
.
– Take off the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
