15 ELECTRICAL SYSTEM 99
B01561-10

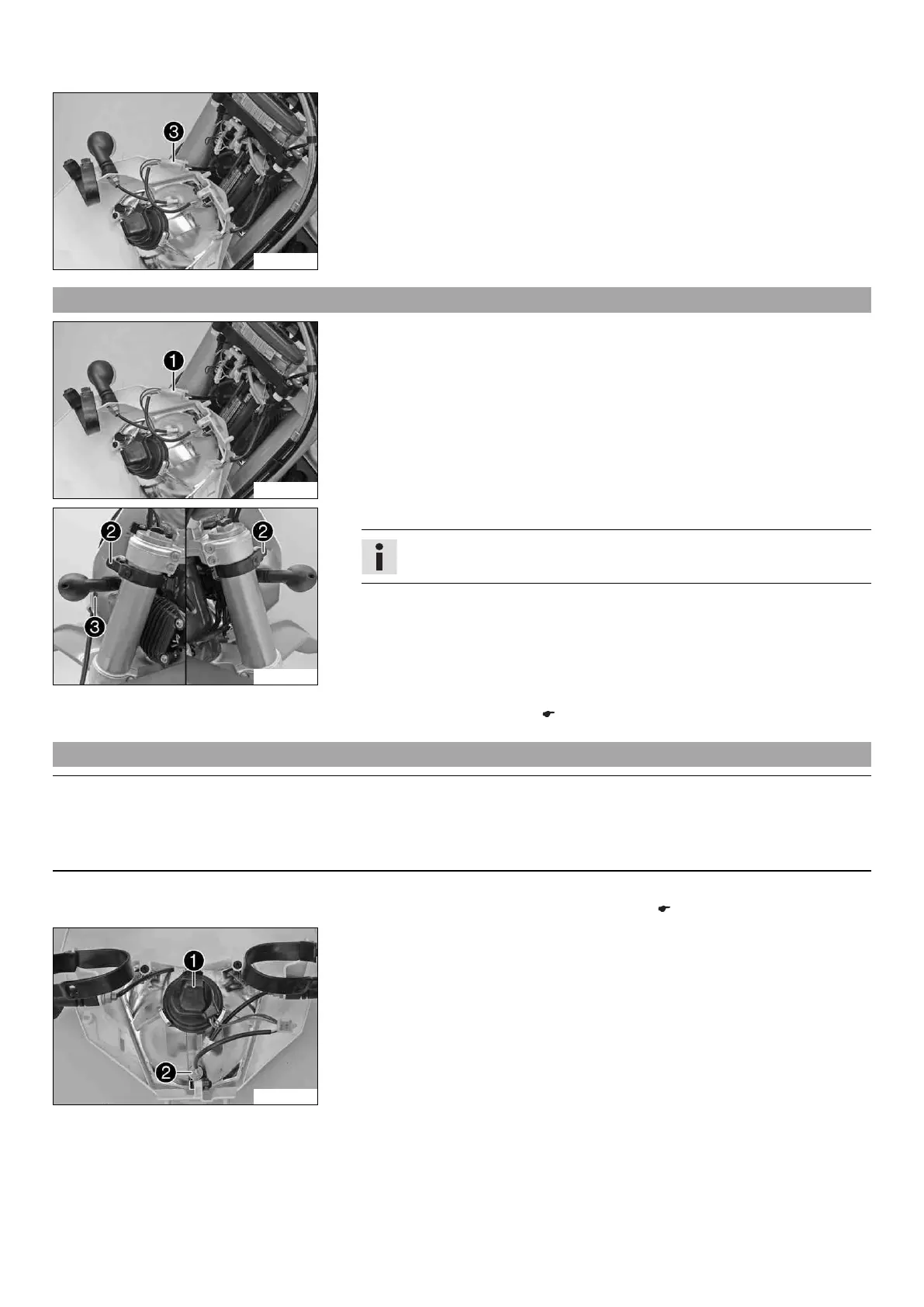

– Pull out the electric plug connector 3 and remove the headlight mask with the
headlight.
15.7 Refitting the headlight mask with the headlight
B01561-11
Main work
– Connect the electric plug connector 1.
B01560-11
– Position the headlight mask and fix it with the rubber band 2.
Info
Ensure that the retaining lugs engage in the fender.
– Position the brake line and wiring harness. Put the clamp on, mount and tighten
screw 3.
Finishing work
– Check the headlight setting. ( p. 100)
15.8 Changing the headlight bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 98)
B01562-10
Main work
– Turn protection cap 1 together with the underlying bulb socket counterclockwise
all the way and remove it.
– Pull bulb socket 2 of the parking light out of the reflector.
