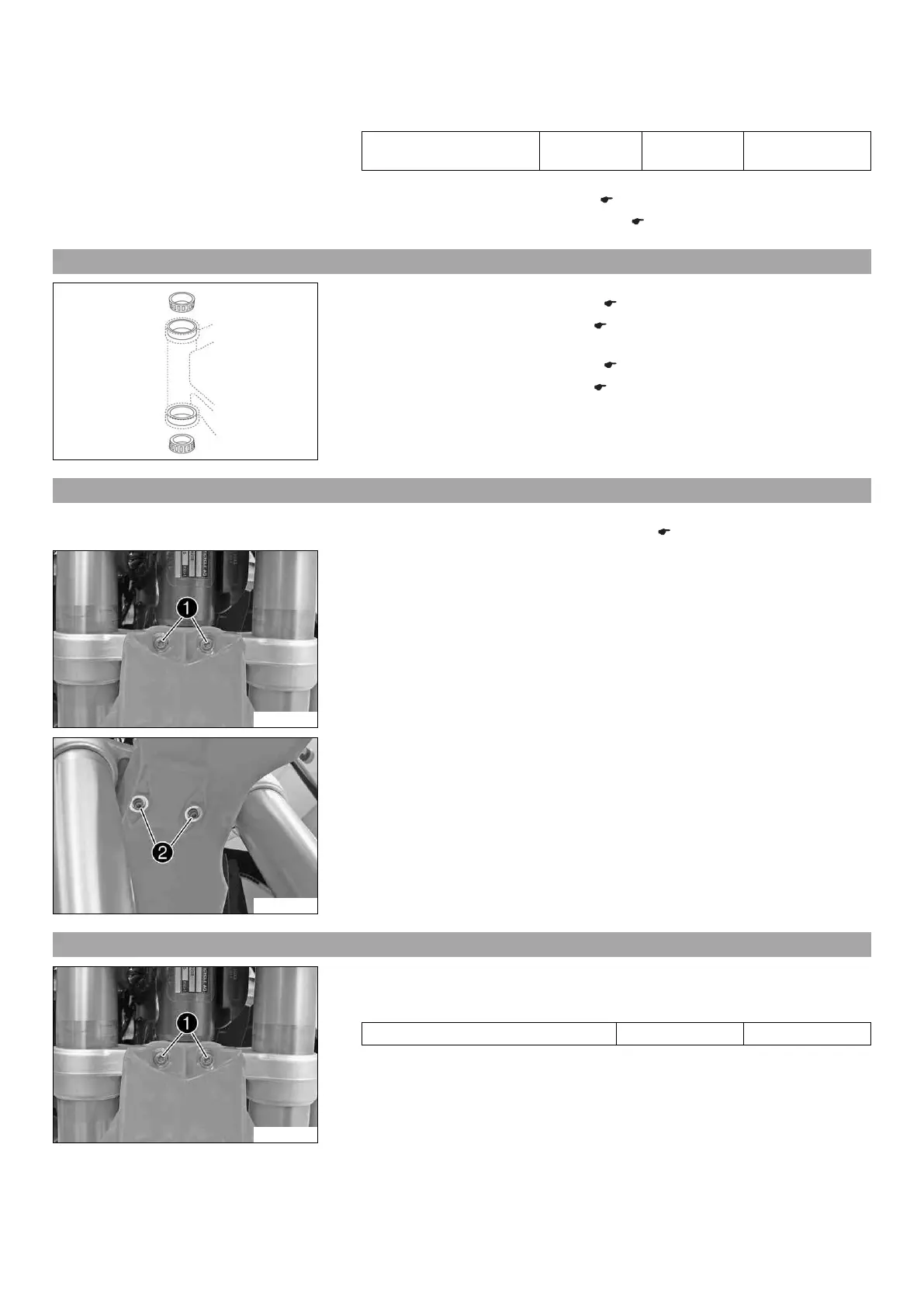

12 SERVICE WORK ON THE CHASSIS 66

– Mount and tighten screw 2.

Guideline

Screw, top steering stem M8 17 Nm

(12.5 lbf ft)

Loctite

243™

Finishing work

– Check the steering head bearing play. ( p. 64)

– Remove the motorcycle from the lift stand. ( p. 56)

12.18 Greasing the steering head bearing x

800010-10

(All SIXDAYS models)

–

Remove the lower triple clamp. x ( p. 60)

–

Install the lower triple clamp. x ( p. 63)

(EXC‑F EU, EXC‑F AUS, XCF‑W)

–

Remove the lower triple clamp. x ( p. 59)

–

Install the lower triple clamp. x ( p. 61)

12.19 Removing the front fender

Preparatory work

– Remove the headlight mask with the headlight. ( p. 98)

B01602-10

Main work

– Remove screws 1.

B01603-11

– Remove screws 2. Remove the front fender.

12.20 Installing the front fender

B01602-10

Main work

– Position the front fender. Mount and tighten screws 1.

Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
