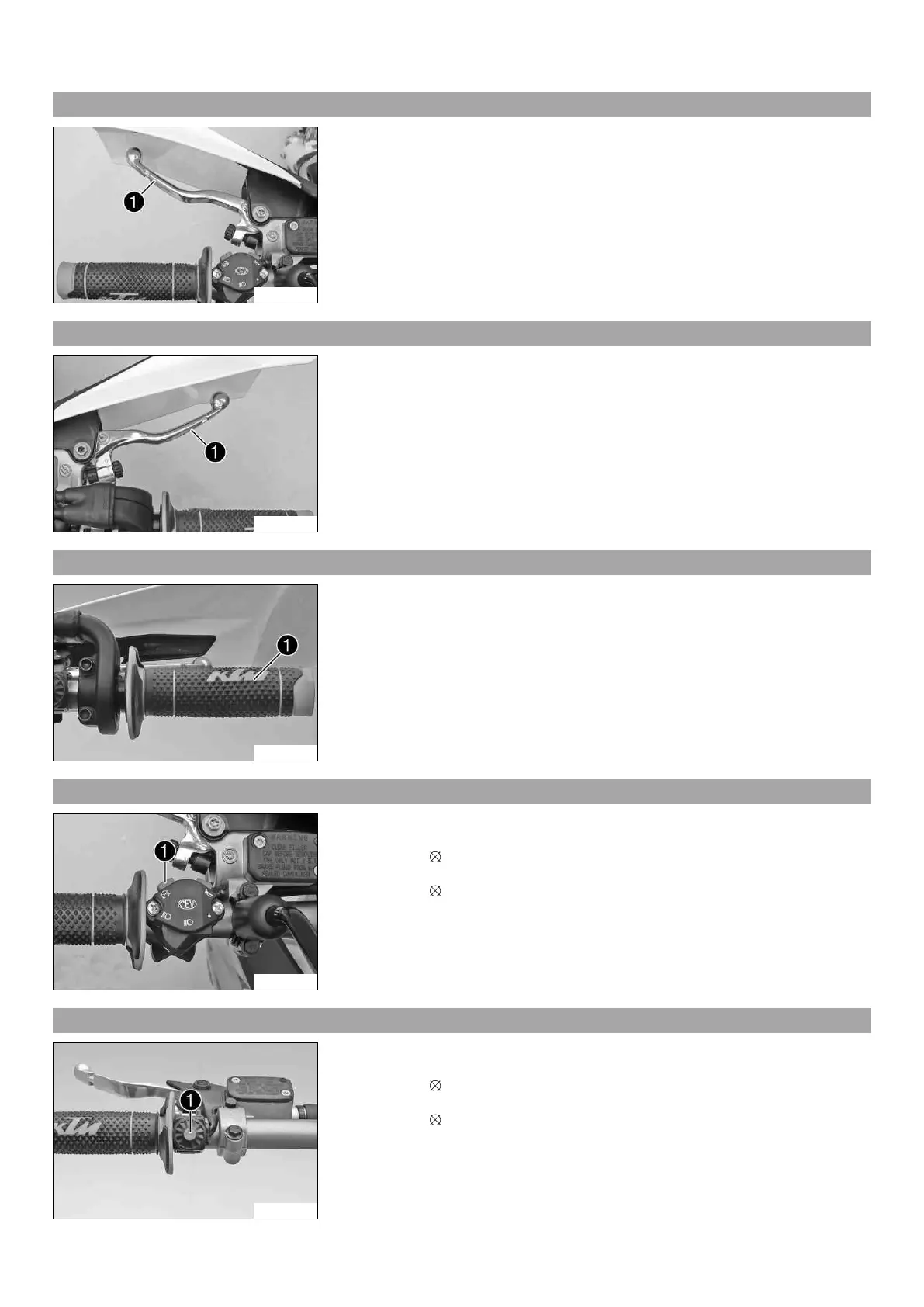

6 CONTROLS 14
6.1 Clutch lever
B01496-10
The clutch lever 1 is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
B01497-10
Hand brake lever 1 is located on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
B01498-10
The throttle grip 1 is fitted on the right side of the handlebar.
6.4 Kill switch (All EXC‑F models)
B01585-10
Kill switch 1 is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – the ignition circuit is closed in this position and
the engine can be started.
• Kill switch pressed – the ignition circuit is open in this position, the engine
goes out if it was running, or does not start if it was off.
6.5 Kill switch (All XCF-W models)
B01586-10
Kill switch 1 is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – the ignition circuit is closed in this position and
the engine can be started.
• Kill switch pressed – the ignition circuit is open in this position, the engine
goes out if it was running, or does not start if it was off.
