15 ELECTRICAL SYSTEM 101

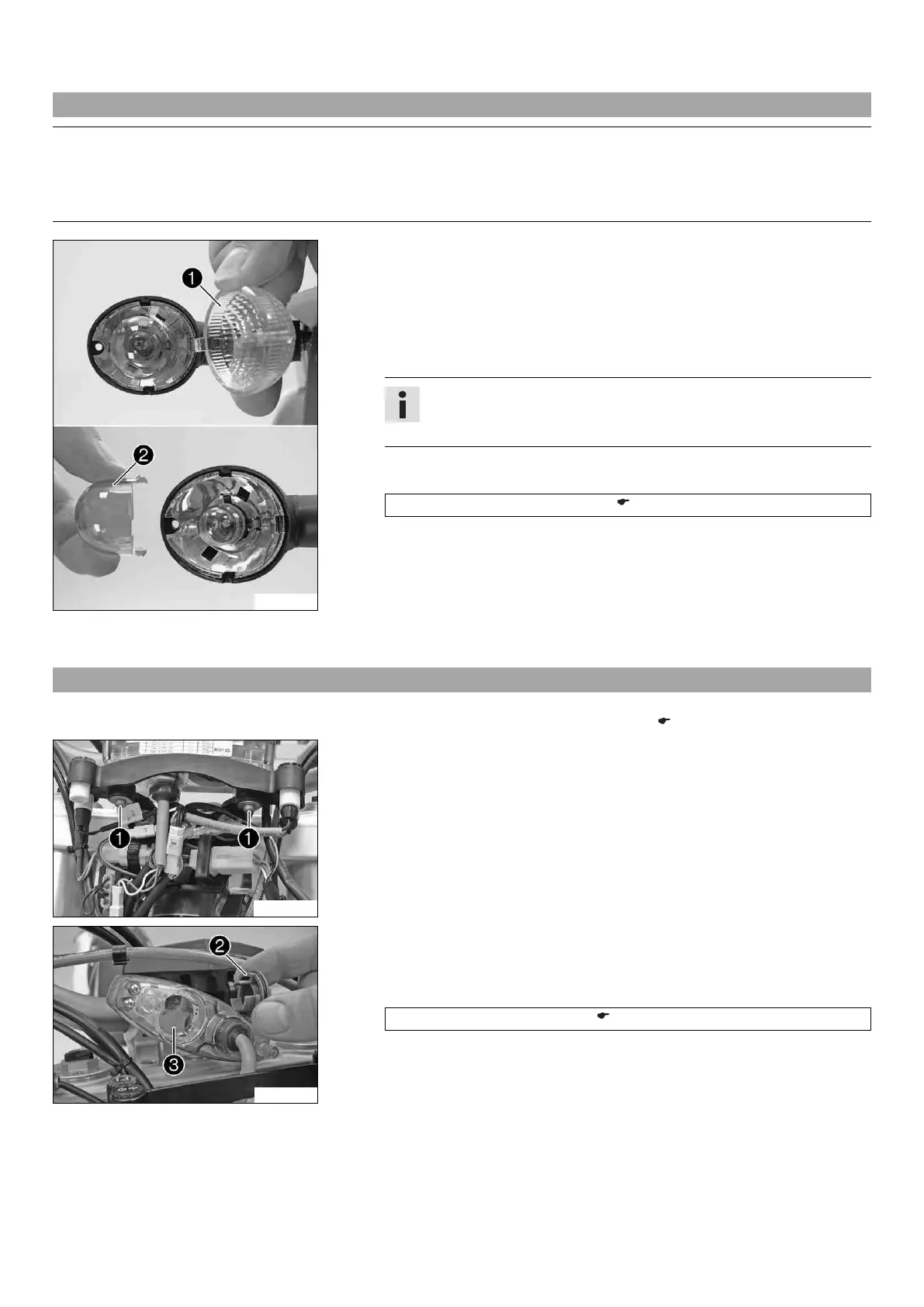

15.11 Changing the turn signal bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
101722-10
Main work
(All EXC‑F models)
– Remove the screw on the rear of the turn signal housing.
– Carefully remove diffuser 1.
– Lightly squeeze orange cap 2 in the area of the holding lugs and take it off.
– Press the turn signal bulb carefully into the socket, turn it counterclockwise by
about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from
grease.
– Press the new turn signal bulb carefully into the socket and turn it clockwise
until it stops.
Turn signal (R10W / socket BA15s) ( p. 122)
– Mount the orange cap.
– Position the diffuser.
– Insert the screw and first turn it counterclockwise until it engages in the thread.
Tighten the screw slightly.
Finishing work
– Check that the turn signal system is functioning properly.
15.12 Changing the speedometer battery
Preparatory work
– Remove the headlight mask with the headlight. ( p. 98)
B01565-10
Main work
(EXC‑F EU, EXC‑F AUS, XCF‑W)
– Remove screws 1.
– Pull the speedometer upward out of the holder.
101406-10
– Using a coin, turn protection cap 2 all the way counterclockwise and remove
it.
– Remove speedometer battery 3.
– Insert the new battery with the label facing upward.
Speedometer battery (CR 2430) ( p. 122)
– Check the O-ring of the protection cap for correct seating.
