18 SERVICE WORK ON THE ENGINE 109
The engine oil is at a level between the lower edge A and the upper edge C
of the level viewer.
» If the engine oil is not up to the lower edge A of the level viewer:
– Add engine oil. ( p. 111)

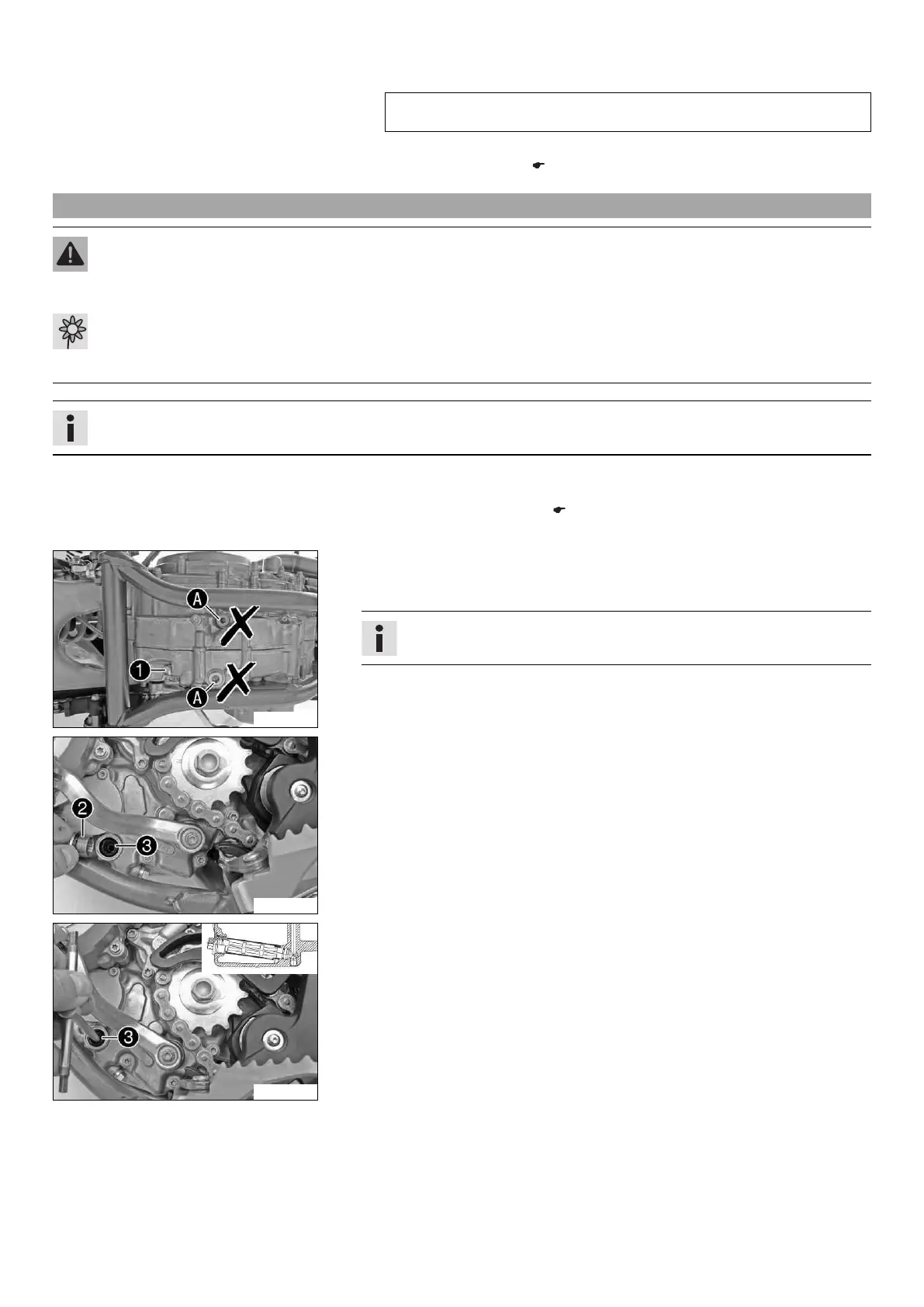

18.3 Changing the engine oil and oil filter, cleaning the oil screen x
Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Drain the engine oil only when the engine is warm.
Preparatory work
(EXC‑F AUS, All SIXDAYS models)
– Remove the engine guard. ( p. 80)
– Park the motorcycle on a level surface.
B01575-10
Main work
– Place a suitable container under the engine.
– Remove oil drain plug 1 with the magnet and seal ring.
Info
Do not remove screws A on both sides.
B01576-10
– Remove screw plug 2 with oil screen 3 and the O-rings.
– Completely drain the engine oil.
– Thoroughly clean the parts and sealing surfaces.
B01577-10
– Push the oil screen with O-rings onto a pin wrench.
– Push the pin wrench through the opening into the drill hole of the opposite engine
case wall and push the oil screen as far as possible into the engine case.
