6 CONTROLS 18
6.19 Idle speed adjusting screw
B01503-10

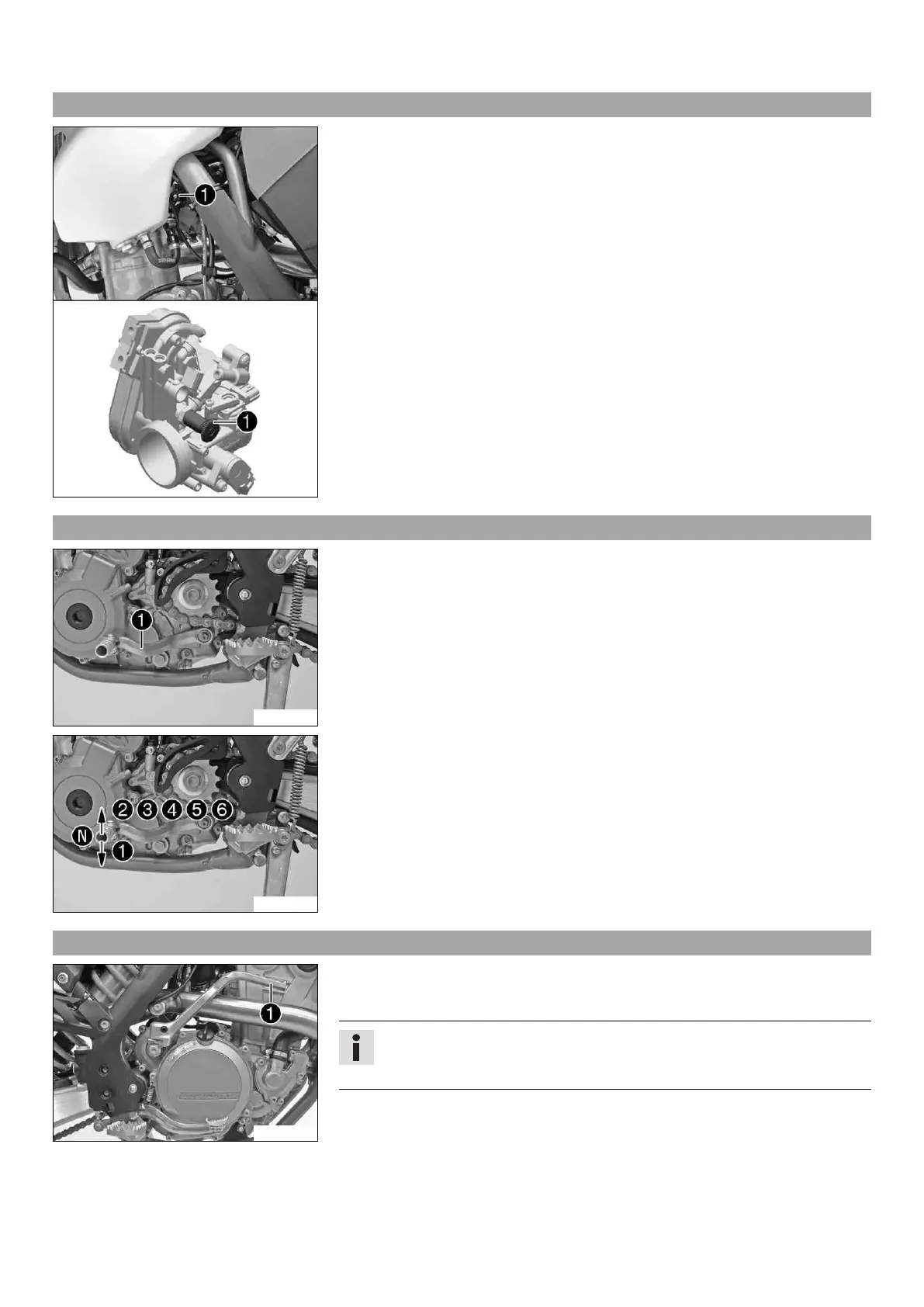

The idle speed adjusting screw 1 is located on the throttle valve body at the top left.
The idle speed adjusting screw has two functions.
Turning it controls the idle speed.
Pulling it out all the way raises the idle speed during a cold start.
Possible states
• RPM increase activated – Idle speed adjusting screw is pulled out all the way.
• RPM increase deactivated – Idle speed adjusting screw is pushed in all the way.
6.20 Shift lever
B01504-10
Shift lever 1 is mounted on the left side of the engine.
B01504-11
The gear positions can be seen in the photograph.
The neutral or idle position is between the first and second gears.
6.21 Kick starter
B01505-10
The kick starter 1 is fitted on the right of the engine.
The engine can be started with either the kick starter or the electric starter.
The upper part of the kick starter can be swung out.
Info
Before riding, swing the upper part of the kick starter inwards towards the
engine.
