11 TUNING THE CHASSIS 50

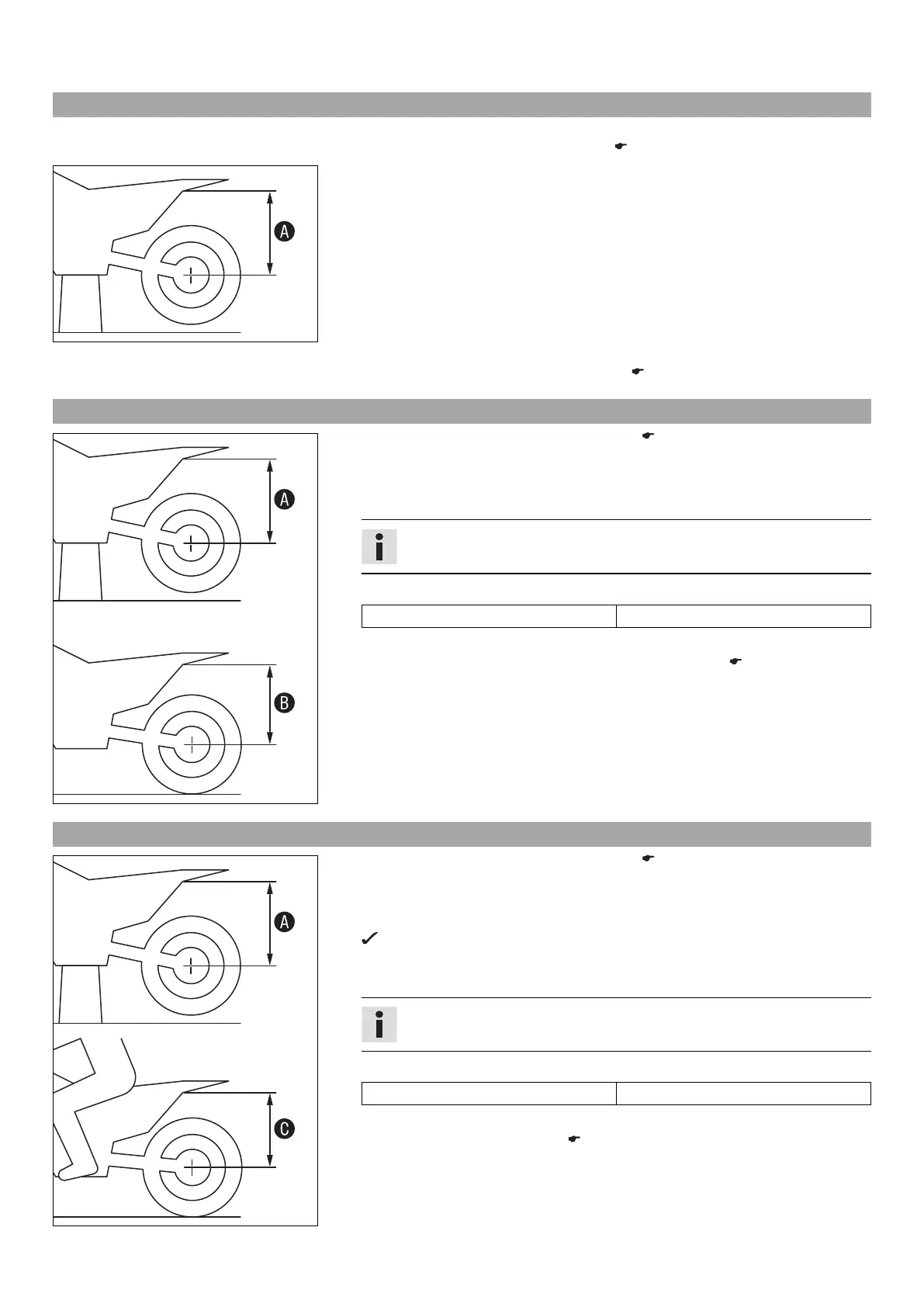

11.6 Measuring rear wheel sag unloaded
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 56)
400988-10
Main work
– Measure the distance – as vertically as possible – between the rear axle and a fixed
point such as a mark on the side cover.
– Make note of the value as measurement A.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 56)
11.7 Checking the static sag of the shock absorber
400989-10
– Measure distance A of rear wheel unloaded. ( p. 50)
– Hold the motorcycle upright with the aid of an assistant.
– Measure the distance between the rear axle and the fixed point again.
– Note down the value as dimension B.
Info
The static sag is the difference between measurements A and B.
– Check the static sag.
Static sag 33… 35 mm (1.3… 1.38 in)
» If the static sag is less or more than the specified value:
–
Adjust the spring preload of the shock absorber. x ( p. 51)
11.8 Checking the riding sag of the shock absorber
400990-10
– Measure distance A of rear wheel unloaded. ( p. 50)
– With another person holding the motorcycle, the rider, wearing full protective cloth-
ing, sits on the seat in a normal sitting position (feet on footrests) and bounces up
and down a few times.
The rear wheel suspension levels out.
– Another person now measures the distance between the rear axle and a fixed point.
– Note down the value as dimension C.
Info
The riding sag is the difference between measurements A and C.
– Check the riding sag.
Riding sag 105… 115 mm (4.13… 4.53 in)
» If the riding sag differs from the specified measurement:
–
Adjust the riding sag. x ( p. 51)
