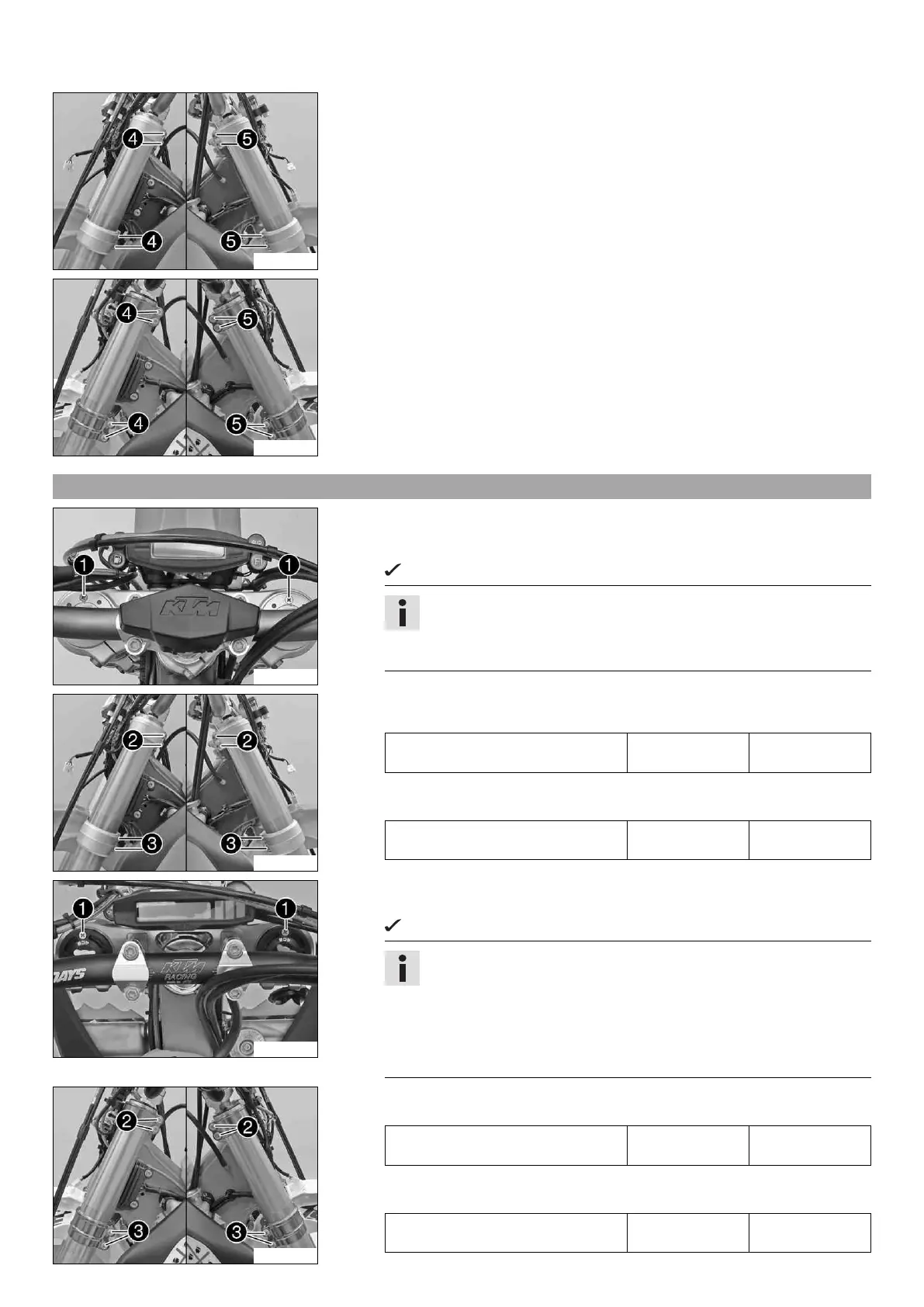

12 SERVICE WORK ON THE CHASSIS 58
B01516-10
(EXC‑F EU, EXC‑F AUS, XCF‑W)
– Release screws 4. Take out the left fork leg.
– Release screws 5. Take out the right fork leg.
B01591-10
(All SIXDAYS models)
– Release screws 4. Take out the left fork leg.
– Release screws 5. Take out the right fork leg.
12.8 Installing the fork legs x
B01517-10
Main work
(EXC‑F EU, EXC‑F AUS, XCF‑W)
– Position the fork legs.
Position bleeder screws 1 toward the front.
Info
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
B01516-11
– Tighten screws 2.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
– Tighten screws 3.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
B01592-10
(All SIXDAYS models)
– Position the fork legs.
Position bleeder screws 1 toward the front.
Info
The rebound damping is located in the right fork leg REB (red adjusting
screw). The compression damping is located in the left fork leg COMP
(white adjusting screw).
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
B01591-11
– Tighten screws 2.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
– Tighten screws 3.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
