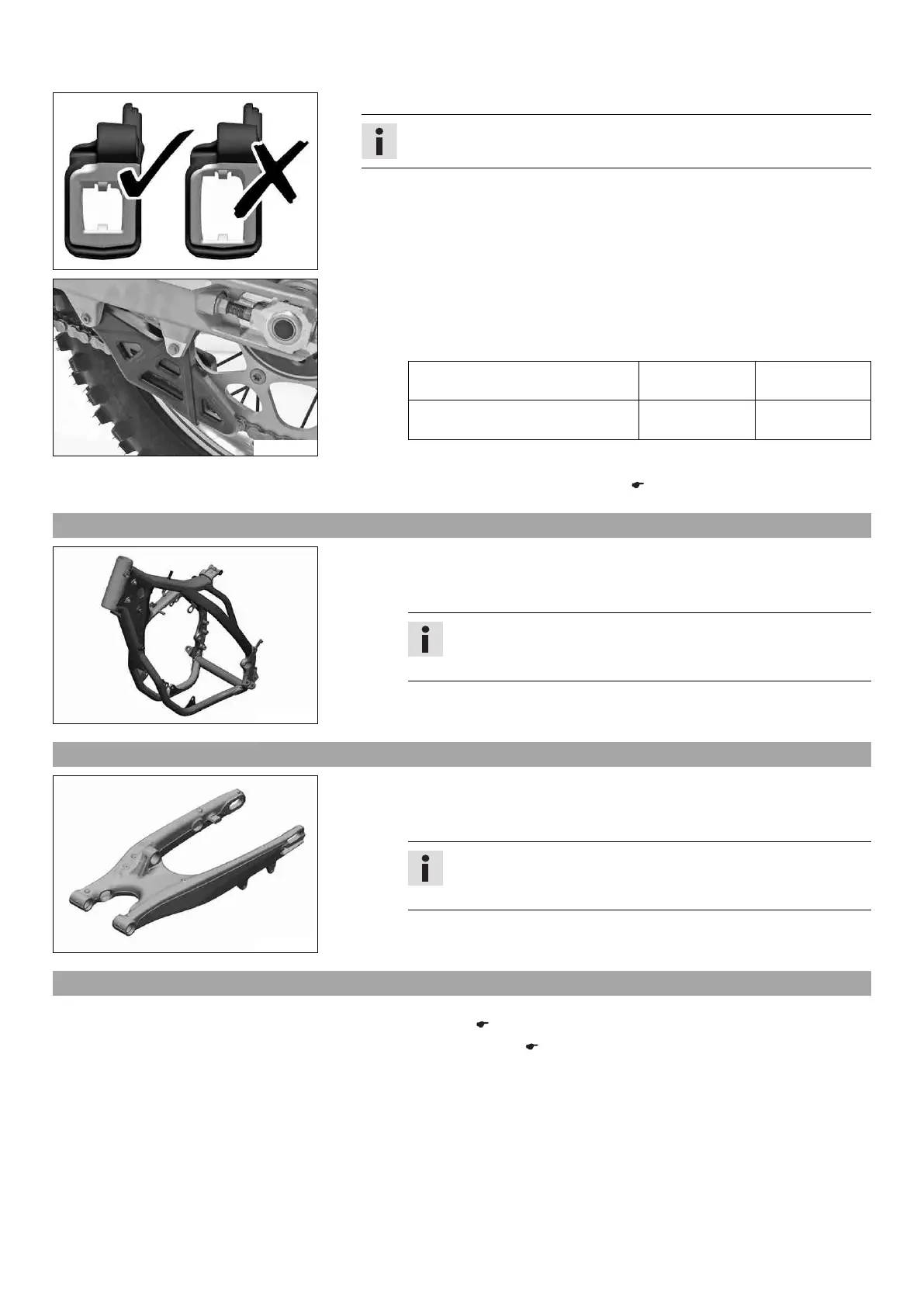

12 SERVICE WORK ON THE CHASSIS 77
401760-01
– Check the chain guide for wear.
Info
Wear is visible on the front of the chain guide.
» If the light part of the chain guide is worn:
–
Change the chain guide. x
B01537-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 56)
12.41 Checking the frame x
401340-01
– Check the frame for cracking and deformation.
» If the frame exhibits cracking or deformation due to a mechanical impact:
–
Change the frame. x
Info
A frame that has been damaged due to a mechanical impact must
always be changed. Repair of the frame is not authorized by KTM.
12.42 Checking the swingarm x
401341-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or deformation:
–
Change the swingarm. x
Info
A damaged swingarm must always be changed. Repair of the
swingarm is not authorized by KTM.
12.43 Checking the throttle cable routing
Preparatory work
– Remove the seat. ( p. 67)
–
Remove the fuel tank. x ( p. 71)
