30/ASSEMBLING ENGINE 106
200088-01

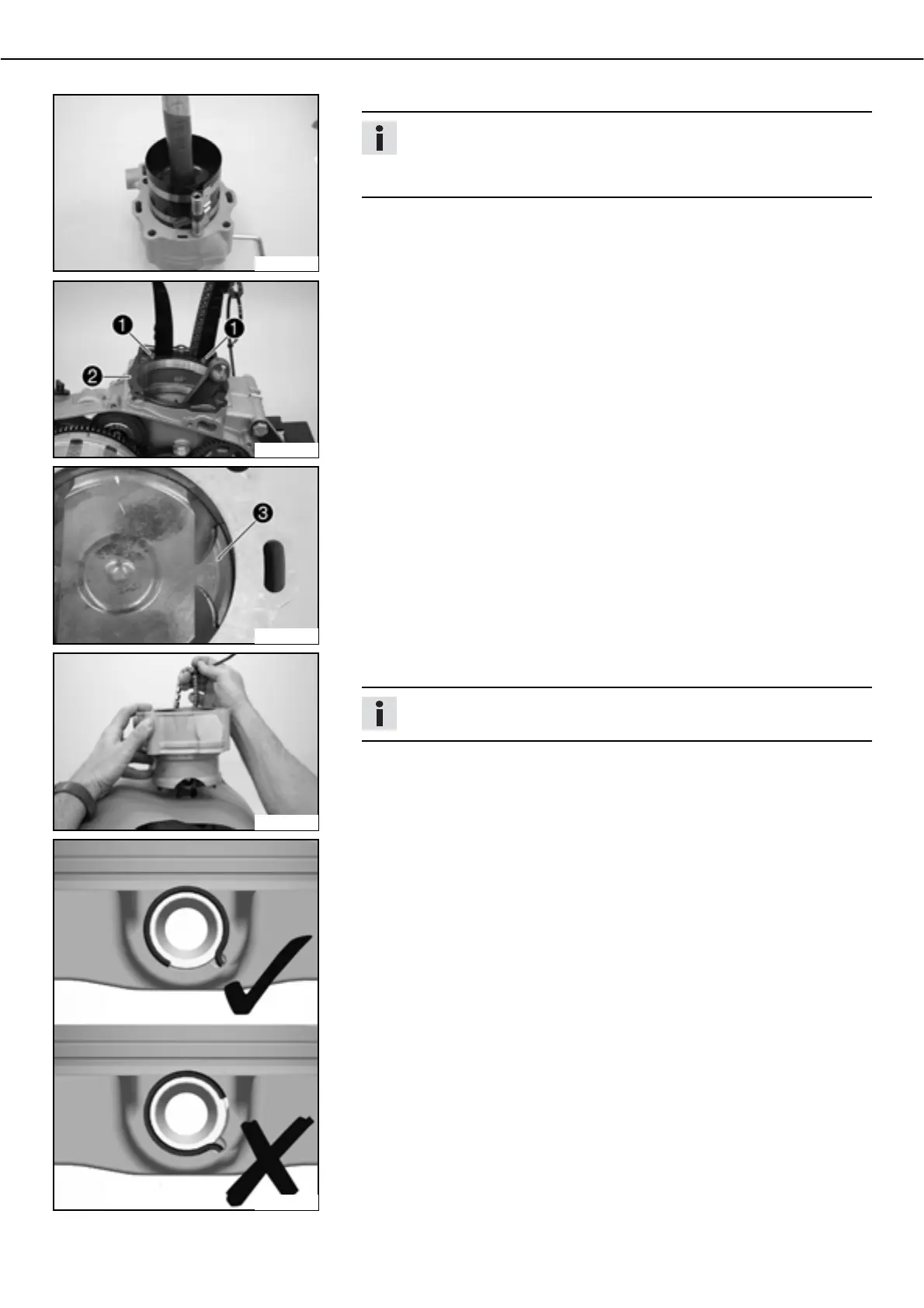

ಥ Carefully knock the piston into the cylinder using the hammer shaft.
Info
The piston tension band must press the piston rings together firmly and
must be flush with the cylinder; the piston rings should not catch or else
they will be damaged.
200090-10
ಥ Mount dowels and fit the cylinder base gasket.
200089-01
ಥ Ensure that piston marking faces the outfeed side.
200091-10
ಥ Cover the engine case opening with a cloth. Thread the timing chain through the
chain shaft. Mount the piston pin.
Info
For clarity, the following steps are illustrated using a disassembled piston.
400366-10
ಥ Position the piston pin retainer.
