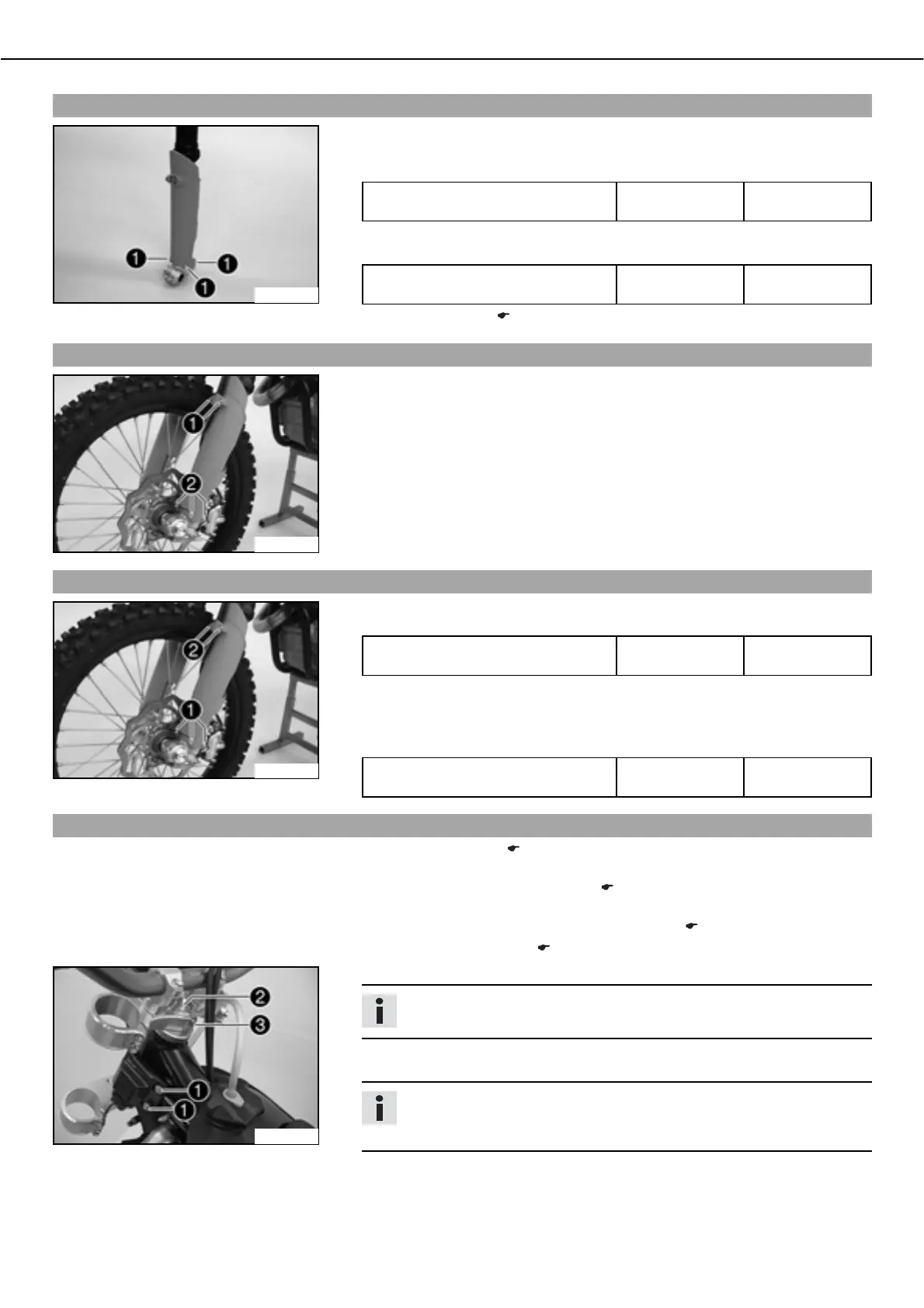

01/FORK, TRIPLE CLAMP 13
Installing the fork protector
500105-10
ಥ Check parts for damage and wear. Replace damaged or worn parts.
ಥ Position the fork protection on the left fork leg. Mount and tighten screws
.
Specification
Remaining screws, chassis M6 10Nm
(7.38lbfft)
ಥ Position the fork protection on the right fork leg. Mount and tighten screws.
Specification
Remaining screws, chassis M6 10Nm
(7.38lbfft)
ಥ Install the fork legs. ( P. 11)
Loosening the fork protection
500087-11
ಥ Remove screws and take off clamp.
ಥ Remove screws
 on left fork leg. Push the fork protection downwards.
ಥ Remove the screws on the right fork leg. Push the fork protection downwards.
Positioning the fork protection
500087-10
ಥ Position the fork protection on the left fork leg. Mount and tighten screws.
Specification
Remaining screws, chassis M6 10Nm
(7.38lbfft)
ಥ Position the brake line and cable harness. Put the clamp on, mount and tighten
screws
.
ಥ Position the fork protection on the right fork leg. Mount and tighten screws.
Specification
Remaining screws, chassis M6 10Nm
(7.38lbfft)
Removing the lower triple clamp (EXC-RSIXDAYS, XCR-WUSA)
ಥ Remove the fork legs. ( P. 11)
(XCR-WUSA)
ಥ Dismount the start number plate. ( P. 32)
(EXC-RSIXDAYS)
ಥ Remove the headlight mask with the headlight. ( P. 31)
ಥ Dismount the front fender. ( P. 31)
500099-10
ಥ Remove screws and hang the CDI control unit to the side.
Info
Do not unplug the CDI control unit.
ಥ Remove screw
. Remove screw, take off top triple clamp with the handlebar
and place it on one side.
Info
Protect the motorcycle and its attachments from damage by covering them.
Do not bend the cables and lines.
