01/FORK, TRIPLE CLAMP 10
ಥ Turn back counterclockwise the number of clicks corresponding to the fork type.
Specification
Compression damping (EXC-REU, EXC-RAUS/UK, EXC-RUSA, XCR-W)
Comfort 24clicks
Standard 20clicks
Sport 18clicks
Compression damping (EXC-RSIXDAYS)
Comfort 24clicks
Standard 22clicks
Sport 18clicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce sus-
pension damping.
ಥ Mount protection covers
.

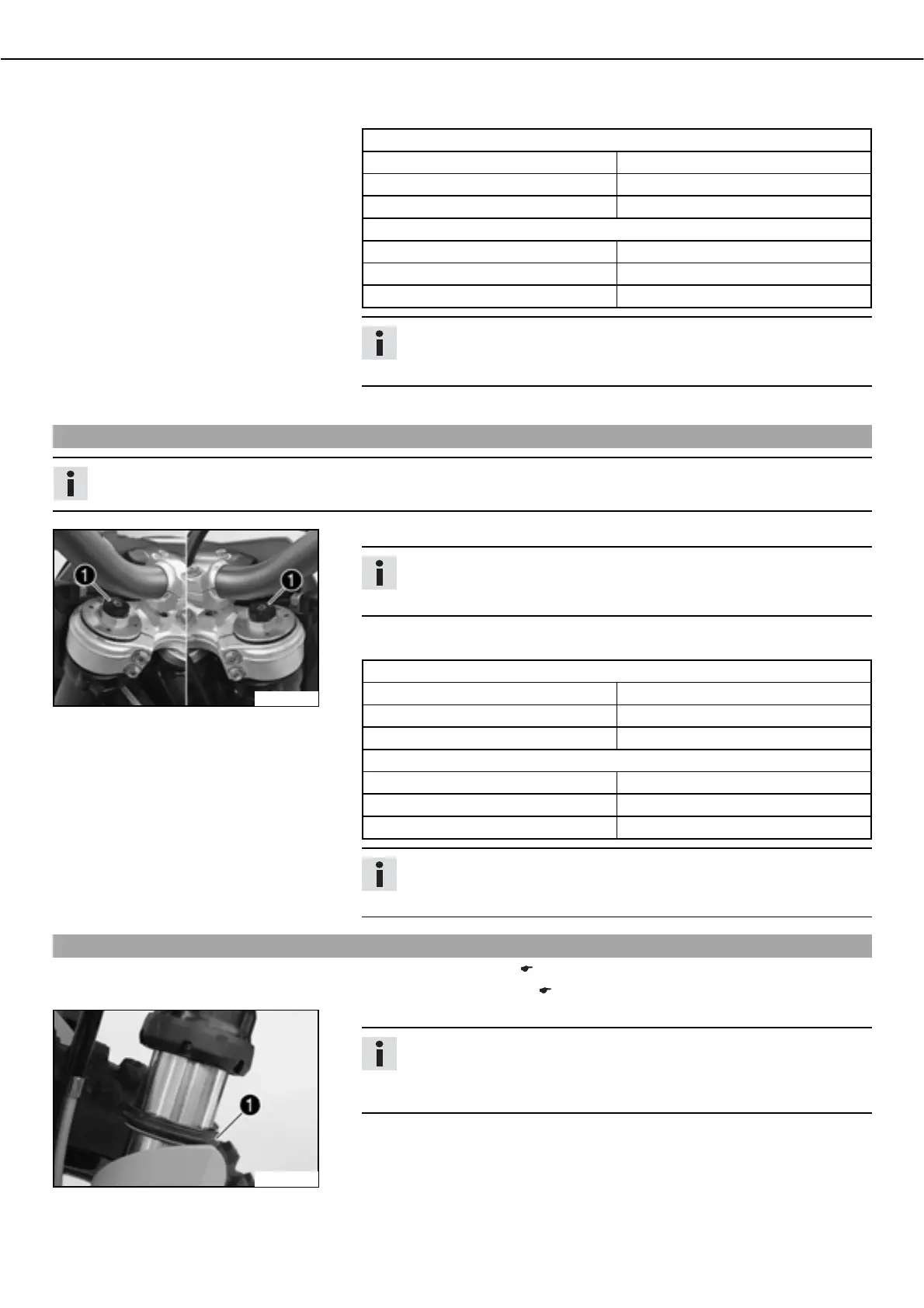

Adjusting rebound damping of fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
100019-10
ಥ Turn adjusting screws clockwise until they stop.
Info
The adjusting screws are located at the top end of the fork legs.
Make the same adjustment on both fork legs.
ಥ Turn back counterclockwise the number of clicks corresponding to the fork type.
Specification
Rebound damping (EXC-REU, EXC-RAUS/UK, EXC-RUSA, XCR-W)
Comfort 20clicks
Standard 18clicks
Sport 18clicks
Rebound damping (EXC-RSIXDAYS)
Comfort 20clicks
Standard 20clicks
Sport 18clicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce sus-
pension damping.
Cleaning dust boots of fork legs
ಥ Jack up the motorcycle. ( P. 8)
ಥ Loosen the fork protection. ( P. 13)
500088-10
ಥ Push dust boots of both fork legs downwards.
Info
The dust boots should remove dust and coarse dirt particles from the fork
tubes. Over time, dirt can penetrate behind the dust boots. If this dirt is not
removed, the oil seals behind can start to leak.
