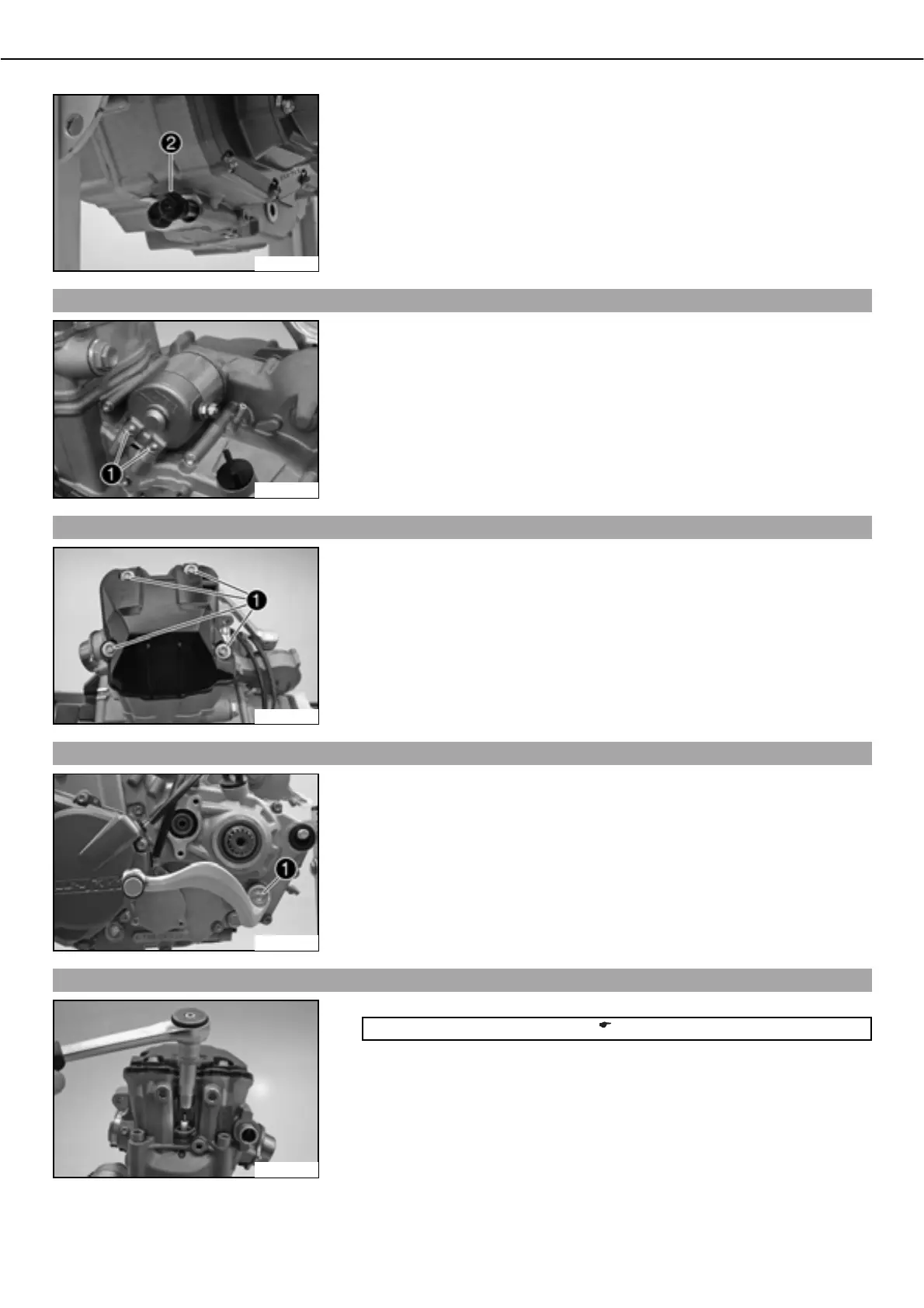

30/DISASSEMBLING ENGINE 60

700024-10

ಥ Plug - remove the gear oil screen.

ಥ Completely drain the gear oil.

Removing the starter engine

200064-10

ಥ Remove screws and take off the starter engine.

Removing the valve cover

700013-10

ಥ Remove screws. Take off the valve cover with the valve cover seal.

Removing the shift lever

700017-11

ಥ Remove screw. Take off the shift lever.

Removing the spark plug

700030-10

ಥ Remove the spark plug using the special tool.

Spark plug wrench (75029172000) ( P. 181)
