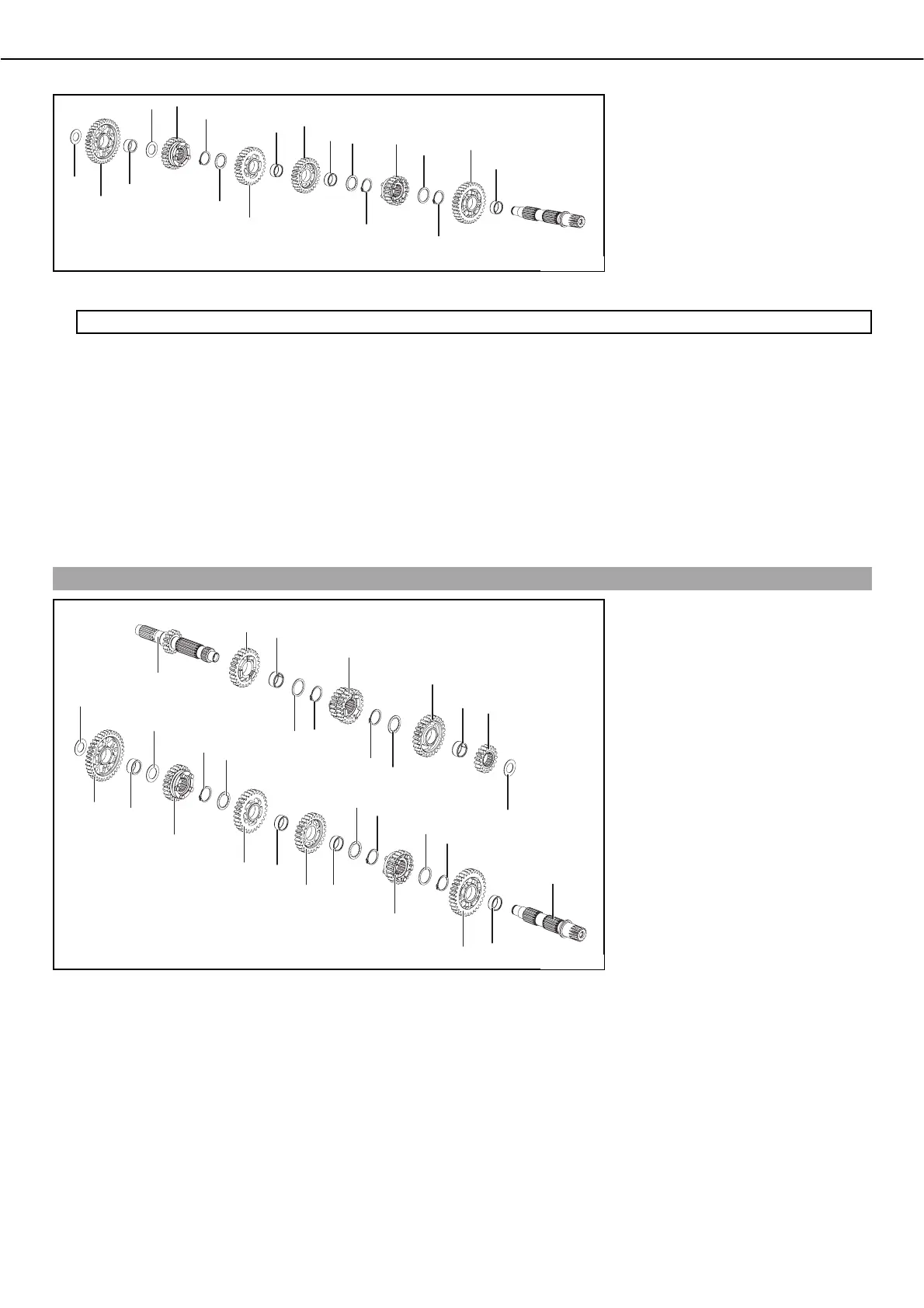

30/ENGINE - WORK ON INDIVIDUAL PARTS 93
200180-01
ಥ Fix the countershaft in the vise with the geared end facing downwards.
Specification
Use vise protectors.
ಥ Mount needle bearing
 and the second-gear idler gear on the countershaft with the protruding collar facing downwards.
ಥ Fit lock ring
 and stop disk.
ಥ Mount the sixth-gear sliding gear
 with the shift groove facing upwards.
ಥ Mount lock ring
 and stop disk.
ಥ Mount needle bearing
 and fourth-gear idler gear with the collar facing upwards.
ಥ Mount needle bearing
(1 and third-gear idler gearîš‘(2 with the collar facing downwards.
ಥ Mount stop disk
(3 and lock ringîš‘(4.
ಥ Mount the fifth-gear sliding gear
(5 with the shift groove facing downwards and stop diskîš‘(6.
ಥ Mount needle bearing
(7, first-gear idler gearîš‘(8 with the groove facing downwards and stop diskîš‘(9.
ಥ Finally, check all gear wheels for smooth operation.
Checking the transmission
500174-01
ಥ Check needle bearing for damage and wear.
» If there is damage or wear:
ಥ Change the needle bearing.
ಥ Check the pivot points of main shaft
 and countershaft for damage and wear.
» If there is damage or wear:
ಥ Change the main shaft and/or countershaft.
ಥ Check the tooth profiles of main shaft
 and countershaft for damage and wear.
» If there is damage or wear:
ಥ Change the main shaft and/or countershaft.
ಥ Check the pivot points of idler gears
 for damage and wear.
» If there is damage or wear:
ಥ Change the idler/fixed gear pair.
ಥ Check the shift dogs of idler gears
 and fixed gears for damage and wear.
» If there is damage or wear:
ಥ Change the idler/fixed gear pair.
