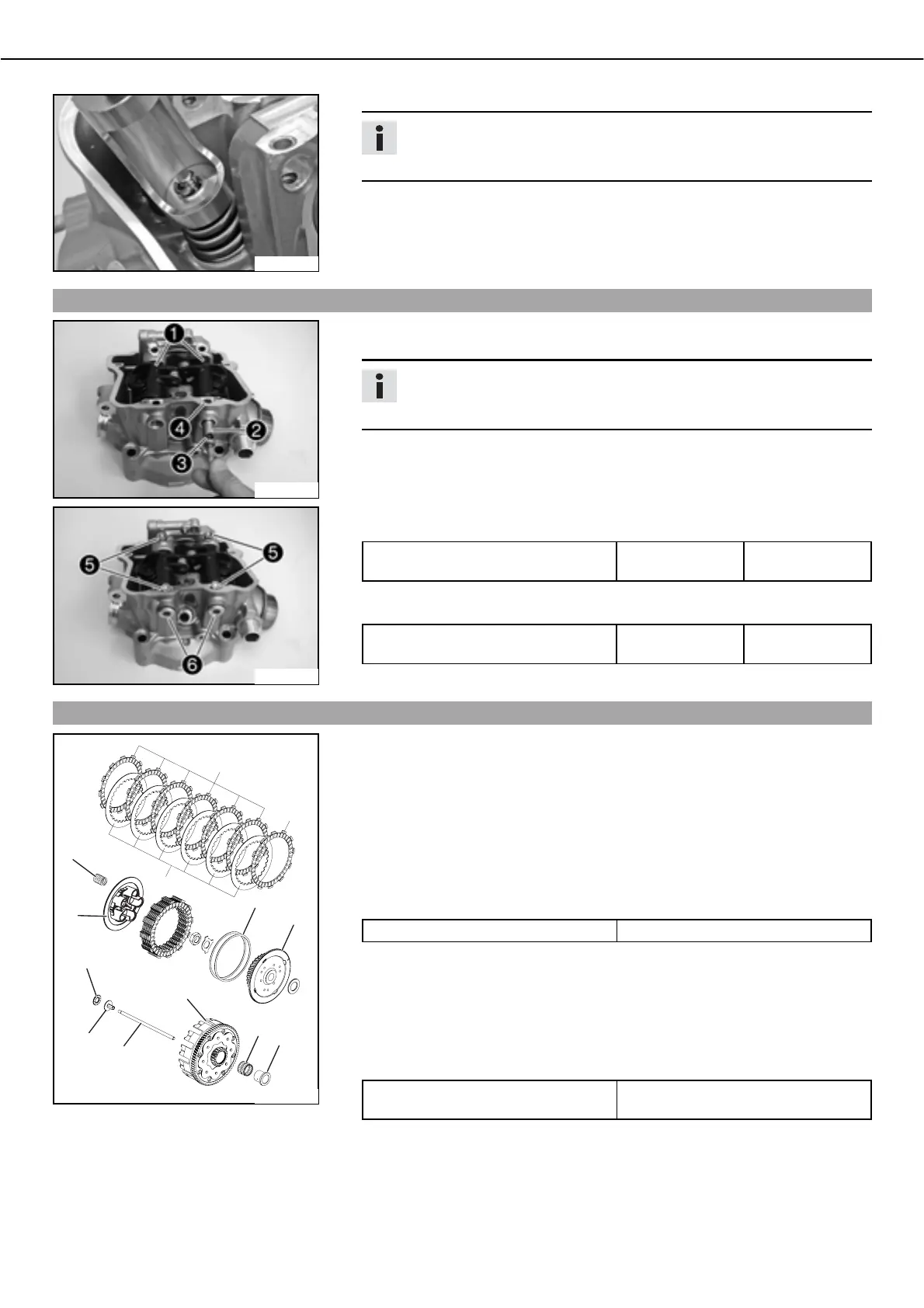

30/ENGINE - WORK ON INDIVIDUAL PARTS 89
200191-10
ಥ Mount the valve keys.
Info
When mounting the valve keys, check that they are seated correctly; prefer-
ably, fix the valve keys to the valve with a little grease.
ಥ Place the shims in the valve spring retainers according to their position in the en-
gine.
Installing the rocker arm
200204-11
ಥ Check parts for damage and wear. Replace damaged or worn parts.
ಥ Position rocker arm
 and slide in rocker arm shaft.
Info
Ensure that the tapped hole of the rocker arm shaft is on the outside.
Align boresîš‘
 of the rocker arm shafts with bores of the cylinder head.
200203-11
ಥ Mount and tighten screws of the rocker arm shafts.
Specification
Screw, rocker arm bearing M7x1 15îš‘Nm
(11.06îš‘lbfîš‘ft)
ಥ Mount and tighten plugs
.
Specification
Plug, rocker arm M14x1,25 20îš‘Nm
(14.75îš‘lbfîš‘ft)
Checking the clutch
200176-01
ಥ Check pressure piece for damage and wear.
» If there is damage or wear:
ಥ Change the pressure piece.
ಥ Check axial bearing
 for damage and wear.
» If there is damage or wear:
ಥ Change the axial bearing.
ಥ Place push rod
 on a level surface and check for run-out.
» If there is run-out:
ಥ Change the push rod.
ಥ Check the length of clutch springs
.
Clutch spring - length 43… 44.03mm (1.69… 1.73in)
» If the clutch spring length is less than the specified value:
ಥ Change all clutch springs.
ಥ Check the contact surface of pressure cap
 for damage and wear.
» If there is damage or wear:
ಥ Change the pressure cap.
ಥ Check the contact surfaces of the clutch facing discs in outer clutch hub
 for
wear.
Thrust surface, clutch facing discs in
outer clutch hub
싨0.5mm (싨0.02in)
» If the contact surface is very worn:
ಥ Change the clutch facing discs and the outer clutch hub.
ಥ Check needle bearing
 and collar for damage and wear.
» If there is damage or wear:
ಥ Change the needle bearing and collar.
