30/ENGINE 58
500076-14

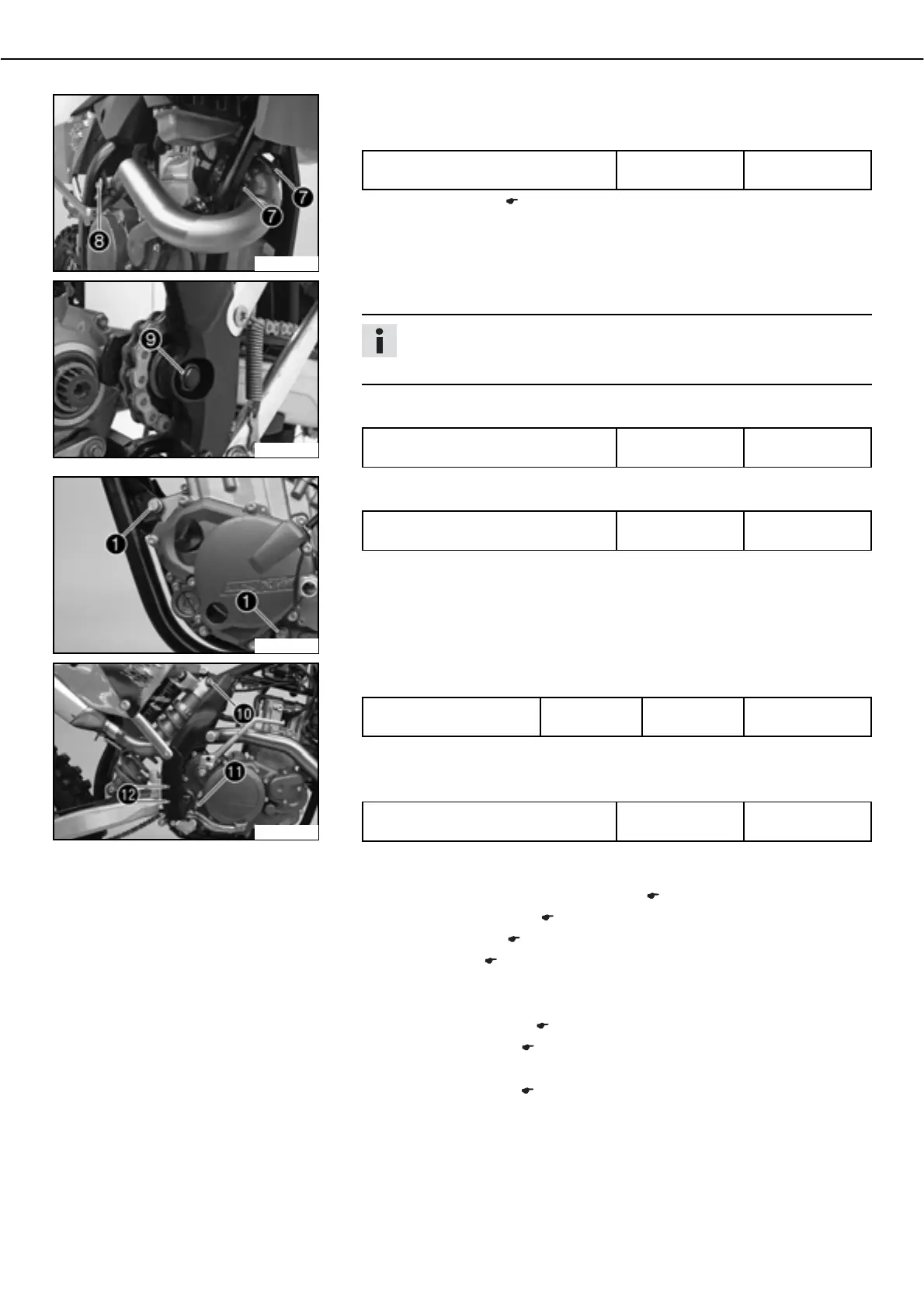

ಥ Position the manifold and mount springs.
ಥ Mount and tighten screw
.
Specification
Remaining screws, chassis M8 25Nm
(18.44lbfft)
ಥ Fit the main silencer. ( P. 25)
500117-11
ಥ Position the swingarm, shock absorber and rear wheel together. Insert the swingarm
pivot.
Info
Having an assistant is helpful in this step.
Ensure that the engine is adequately secured and will not fall over.
ಥ Mount nut
 and tighten.
Specification
Nut, swingarm pivot M16x1,5 100Nm
(73.76lbfft)
500121-10
ಥ Fully tighten screws.
Specification
Engine carrying screw M10 60Nm
(44.26lbfft)
500116-11
ಥ Position the shock absorber. Mount and tighten screw(1.
Specification
Screw, top shock absorber M12 80Nm
(59.01lbfft)
Loctite
®
243™
ಥ Reconnect spring
(2.
ಥ Position the foot brake cylinder. Mount and tighten screws
(3.
Specification
Remaining screws, chassis M6 10Nm
(7.38lbfft)
ಥ Position the bellows on the foot brake cylinder.
ಥ Connect the negative (minus) cable of the battery.
ಥ Remove the motorcycle from the work stand. ( P. 8)
ಥ Install the engine sprocket. ( P. 131)
ಥ Install the carburetor. ( P. 125)
ಥ Refill the coolant. ( P. 133)
ಥ Make a short test ride.
ಥ Check the engine for leakage.
ಥ Check the engine oil level. ( P. 134)
ಥ Check the gear oil level. ( P. 138)
ಥ Check the cooling system for leakage.
ಥ Check the coolant level. ( P. 132)
