KTM 690 SMC R EU 2021 User Manual

11 SERVICE WORK ON THE CHASSIS
52

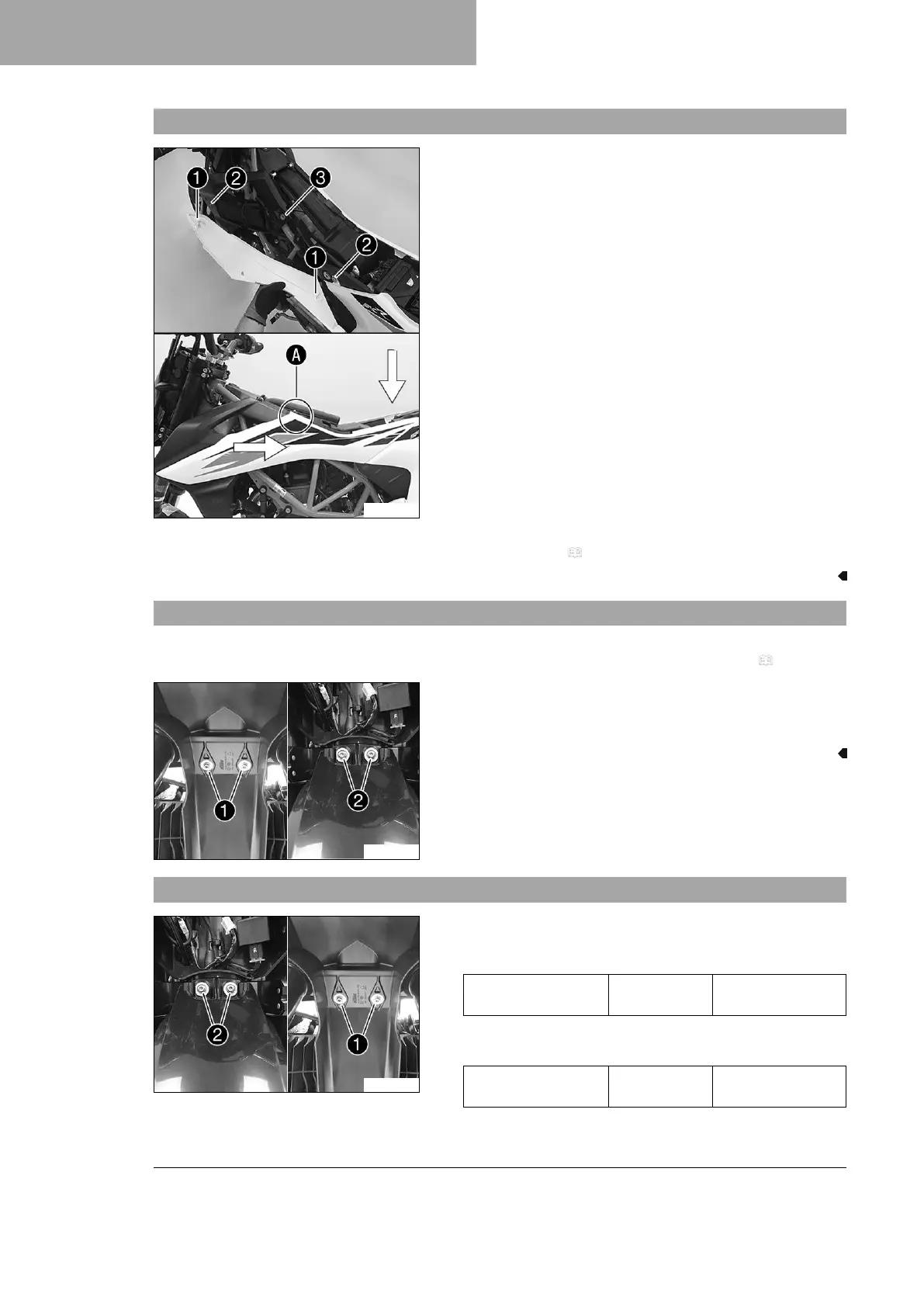

11.16 Mounting side cover
S03288-10
Main work
–
Position the left side cover using holding lugs
1
on bushings
2
and push towards the rear and, in the rear section, down-
ward.
–
Press the left side cover into the rubber bushing
3
in area
A
.
– Repeat these steps on the opposite side.
Finishing work
– Mount the seat. ( p. 50)
11.17 Removing the front fender
Preparatory work
– Remove the headlight mask with the headlight. ( p. 84)
S03291-10
Main work
–
Remove screws
1
.
–
Remove screws
2
and take off the fender.
11.18 Installing the front fender
S03292-10
Main work
–
Position the front fender. Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
