13 WHEELS, TIRES
70

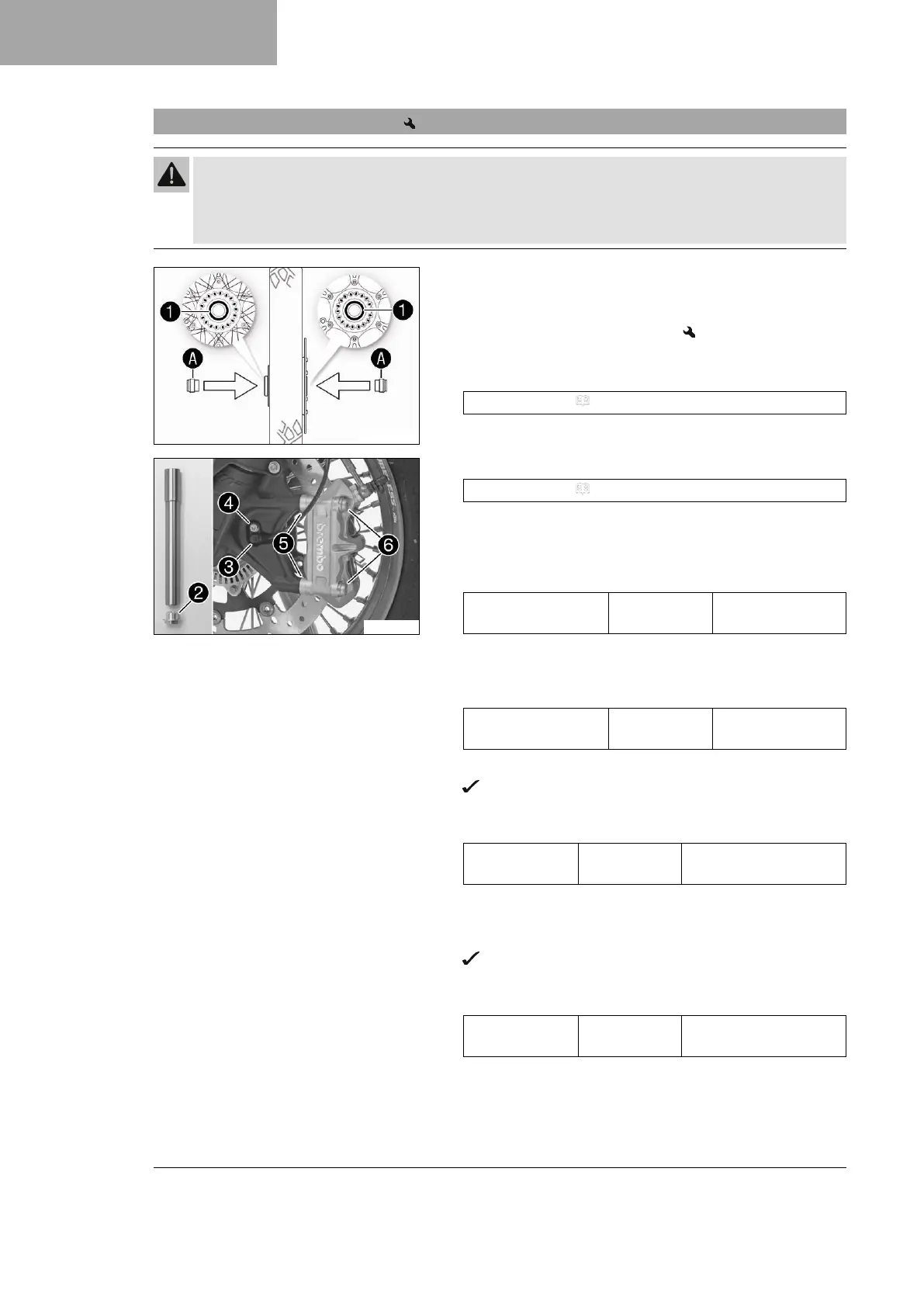

13.2 Installing the front wheel
Warning
Danger of accidents Oil or grease on the brake discs reduces the braking effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when necessary.
H00935-10
Main work
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change front wheel bearing.
–
Clean and grease shaft seal rings
1
and contact surfaces
A
of the spacers.
Long-life grease ( p. 120)
– Insert the spacers.
101997-10
– Clean and grease the wheel spindle.
Long-life grease ( p. 120)
– Jack up the front wheel into the fork, position it, and insert the
wheel spindle.
–
Mount and tighten screw
2
.
Guideline
Screw, front wheel
spindle
M24x1.5 45 Nm (33.2 lbf ft)
–
Position wheel speed sensor
3
in the hole.
–
Mount and tighten screw
4
.
Guideline
Screw, wheel speed
sensor
M6 6 Nm (4.4 lbf ft)
– Position the brake caliper on the brake disc.
The brake linings are correctly positioned.
–
Position spacers
5
. Mount screws
6
, but do not tighten yet.
Guideline
Screw, front
brake caliper
M10x1.25 45 Nm (33.2 lbf ft)
Loctite
®
243™
– Operate the hand brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point. Secure the hand brake lever in the activated position.
The brake caliper straightens.
–
Tighten screws
6
.
Guideline
Screw, front
brake caliper
M10x1.25 45 Nm (33.2 lbf ft)
Loctite
®
243™
– Remove the locking piece of the hand brake lever.
