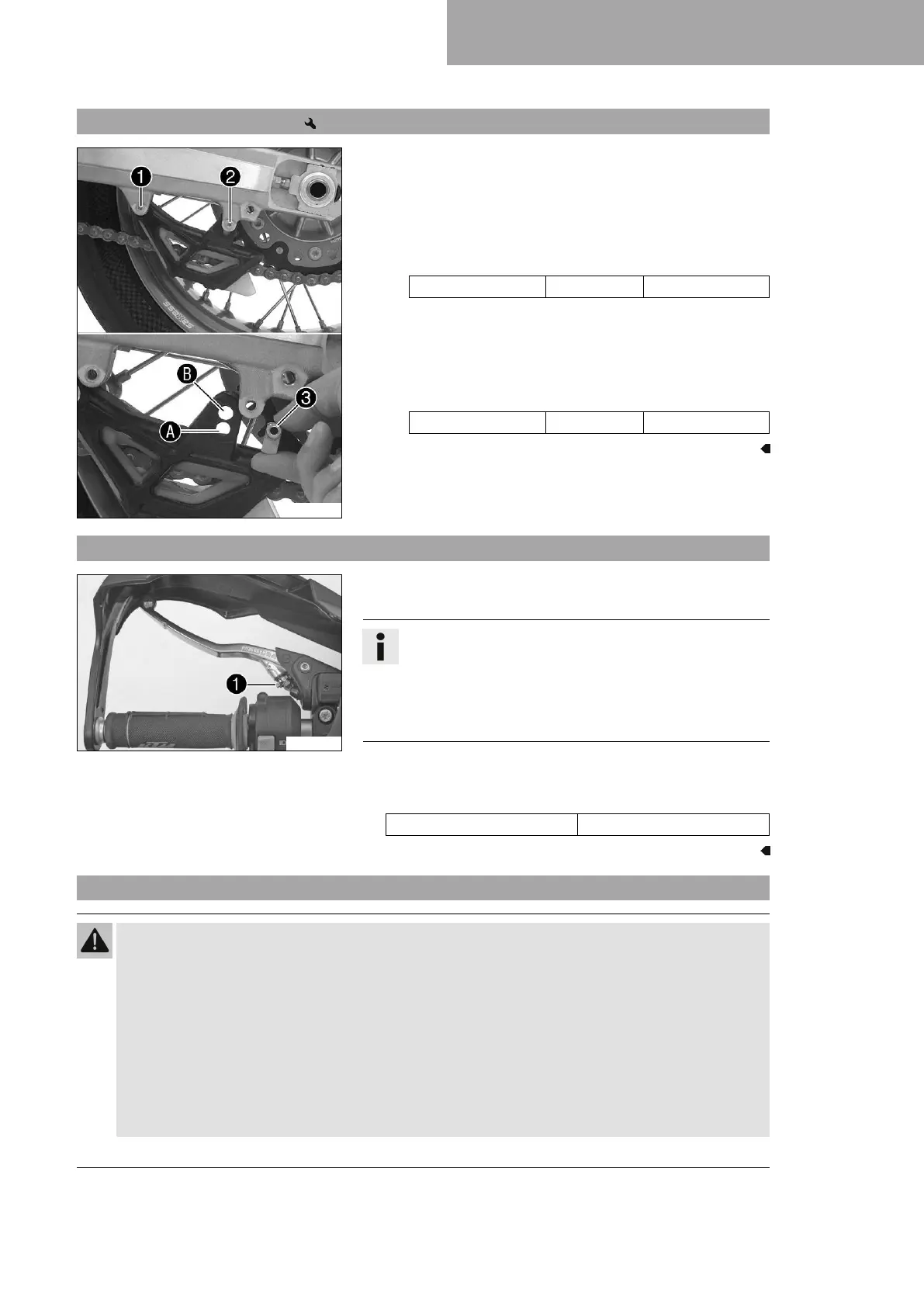

11.26 Adjusting chain guide
S00080-10
–
Remove screws
1
and
2
. Take off the chain guide.
Condition
Number of teeth: ≤ 44 teeth
–
Insert nut
3
in hole
A
. Position the chain guide.
–
Mount and tighten screws
1
and
2
.
Guideline
Screw, chain guide M6 10 Nm (7.4 lbf ft)
Condition
Number of teeth: ≥ 45 teeth
–
Insert nut
3
in hole
B
. Position the chain guide.
–
Mount and tighten screws
1
and
2
.
Guideline
Screw, chain guide M6 10 Nm (7.4 lbf ft)
11.27 Adjusting the basic position of the clutch lever
102009-10
– Adjust basic position of the clutch lever to your hand size by
turning adjusting screw
1
.
Info
Do not make any adjustments while riding.
Push the clutch lever forward and turn the adjusting wheel.
The range of adjustment is limited.
Only turn the adjusting screw by hand, and do not use
force.
– When adjusting the clutch lever, make sure to leave a mini-
mum clearance to other parts of the vehicle.
Guideline
Minimum clearance 5 mm (0.2 in)
11.28 Checking/correcting the fluid level of hydraulic clutch
Warning
Skin irritation Brake fluid causes skin irritation.
– Keep brake fluid out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Do not allow brake fluid to come into contact with the skin, the eyes or clothing.
– Consult a doctor immediately if brake fluid has been swallowed.
– Rinse the affected area with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water immediately and consult a doctor if brake fluid comes into contact
with the eyes.
– If brake fluid spills on to your clothing, change the clothing.
