WHEELS, TIRES 13
71
101999-10

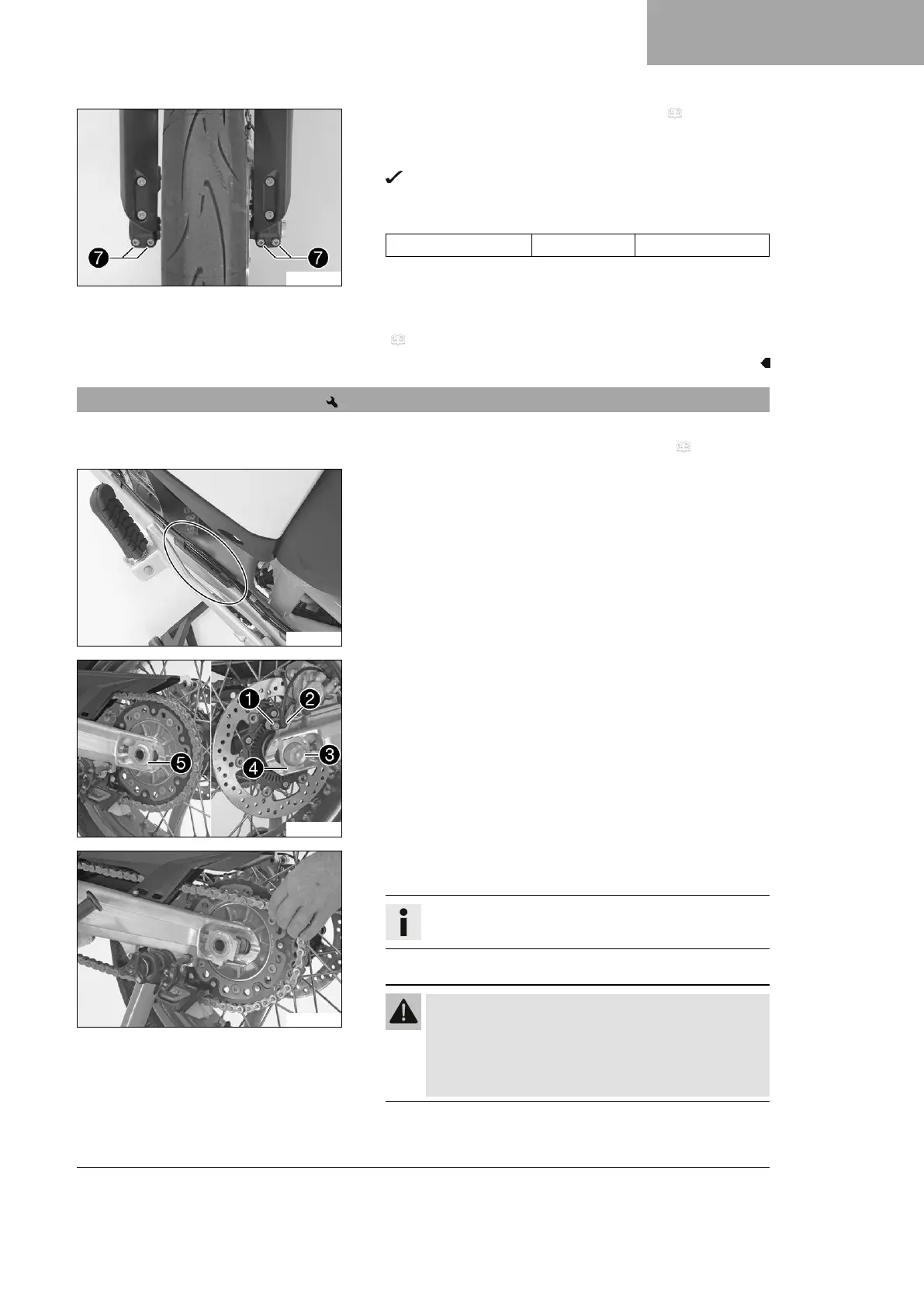

– Take the motorcycle off the front lifting gear. ( p. 47)
– Operate the front brake and compress the fork a few times
firmly.
The fork legs straighten.
–
Tighten screws
7
.
Guideline
Screw, fork stub M8 15 Nm (11.1 lbf ft)
Finishing work
– Remove the rear of the motorcycle from the wheel stand.
( p. 47)
13.3 Removing the rear wheel
Preparatory work
– Raise the motorcycle with the rear lifting gear. ( p. 46)
R05230-10
Main work
– Take the brake line out of the guide.
102000-10
– Manually press the brake caliper toward the brake disc to push
back the brake piston.
–
Remove screw
1
and pull wheel speed sensor
2
out of the
hole.
–
Remove nut
3
. Take off chain adjuster
4
.
–
Pull out wheel spindle
5
to the point where the chain
adjuster is no longer in contact with the adjusting screw.
102001-01
– Push the rear wheel forward as far as possible and take the
chain off the rear sprocket.
Info
Cover the components to protect them against damage.
– Hold the rear wheel and remove the wheel spindle.
Warning
Danger of accidents Damaged brake discs reduce the
braking effect.
– Always lay the wheel down in such a way that the
brake disc is not damaged.
– Take the rear wheel out of the link fork.
