ELECTRICAL SYSTEM 14
87
The light-dark boundary must be exactly on the lower mark-
ing when the motorcycle is ready to be operated with the
rider mounted along with any luggage and a passenger if
applicable.
» If the boundary between light and dark does not meet
specifications:
– Adjust headlight range. ( p. 87)

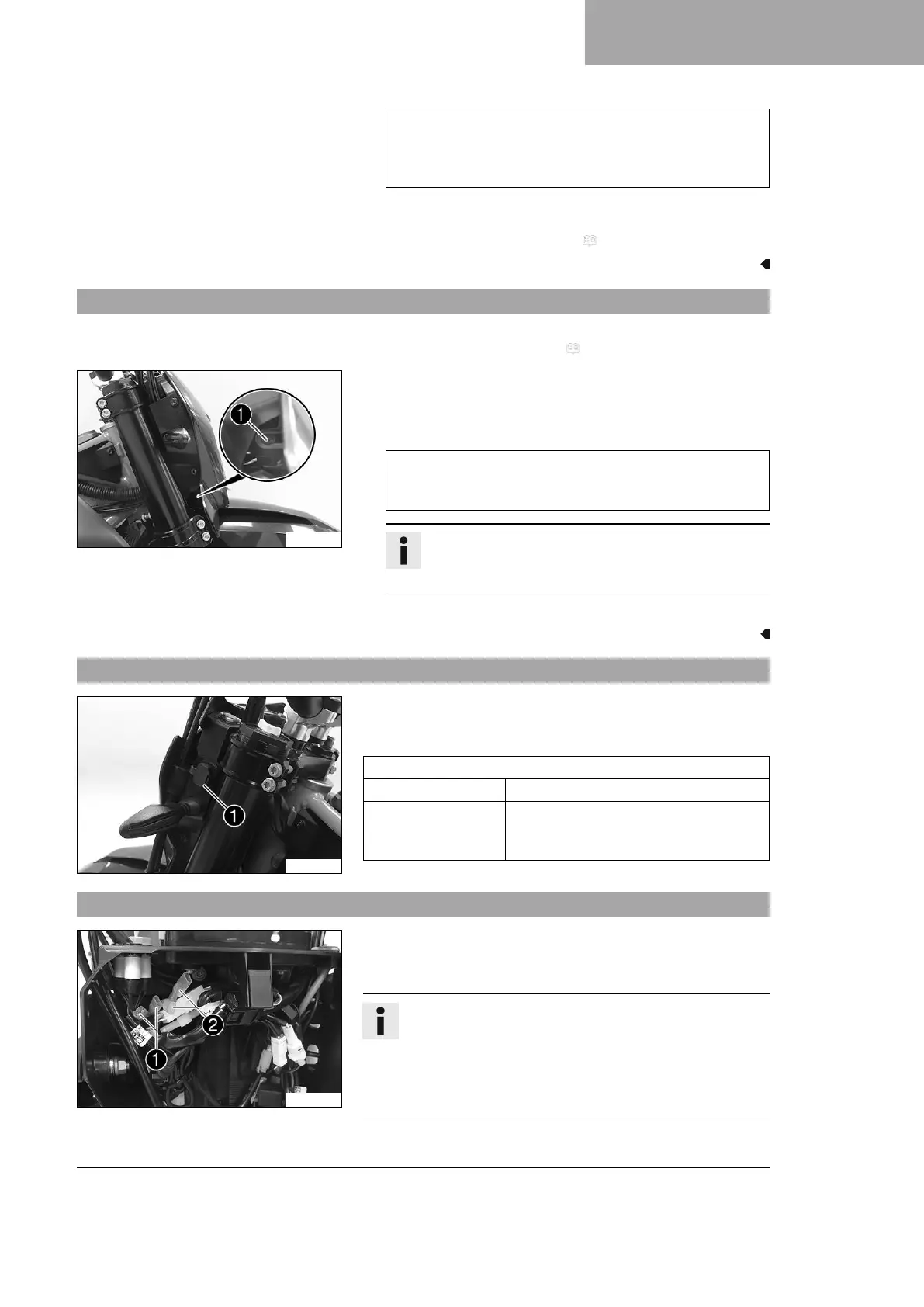

14.12 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 86)
S03310-10
Main work
–
Loosen screw
1
.
– Adjust the headlight range by pivoting the headlight.
Guideline
The boundary between light and dark must be exactly on the
lower mark for a motorcycle with rider (instructions on how
to apply the mark: Checking the headlight setting).
Info
If you have a payload, you may have to correct the
headlight range.
–
Tighten screw
1
.
14.13 USB socket
S03315-10
A USB socket
1
for supplying power to external devices is
located on the left side of the headlight mask.
The USB socket is activated when the ignition is switched on.
USB socket
Voltage 5 V
Maximum cur-
rent consump-
tion
2.1 A
14.14 ACC1 and ACC2
S03334-10
Installation location
–
The power supplies ACC1
1
and ACC2
2
are located
behind the headlight mask.
Info
The power supplies are protected by a fuse; however, this
fuse also protects other electrical power consumers.
The maximum continuous load is therefore significantly
lower than the value of the fuse.
Do not use a stronger fuse.
