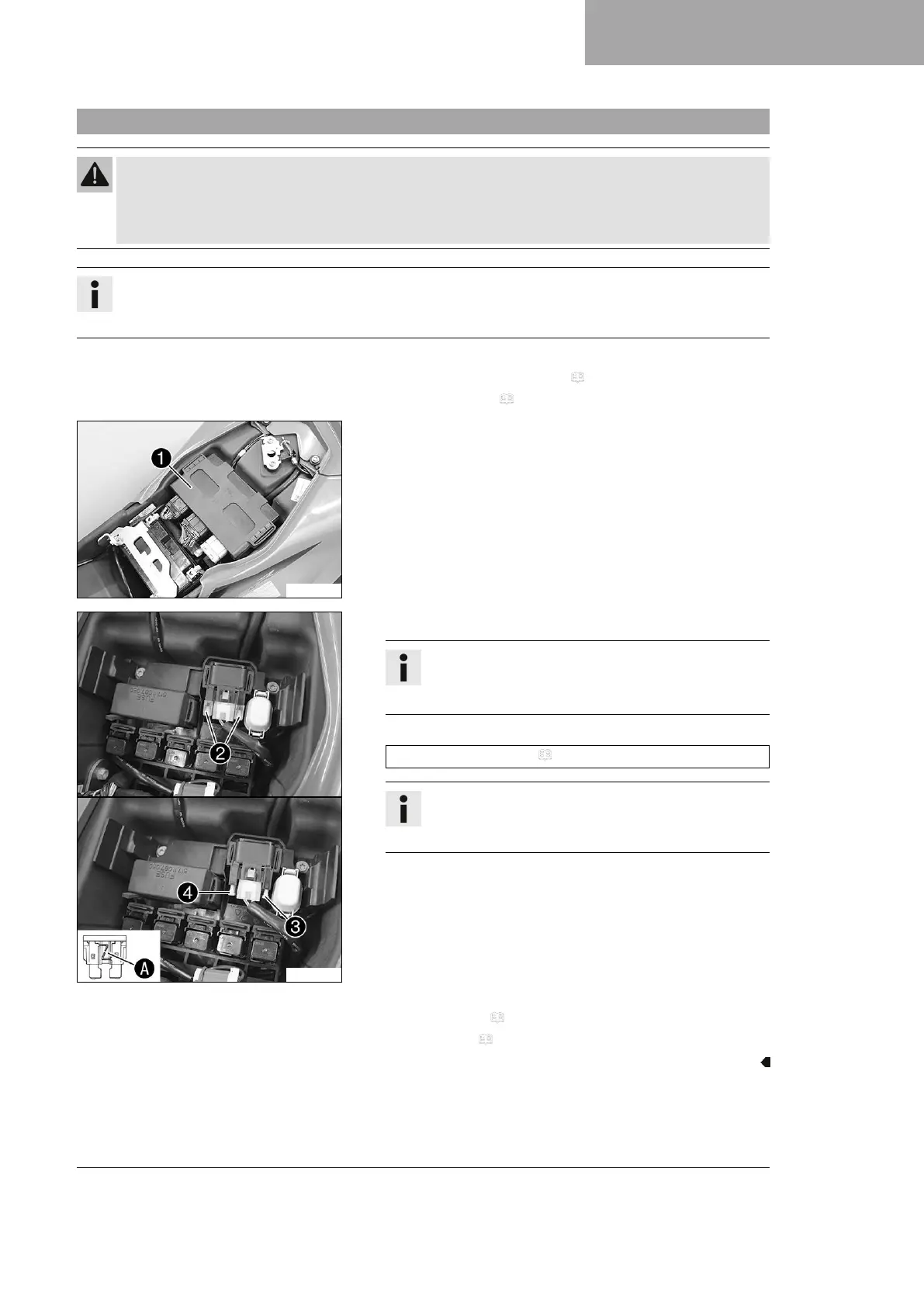

14.4 Changing the main fuse
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Info
The main fuse protects all electrical power consumers of the vehicle. It is in the housing of the starter
relay next to the 12-V battery.
Preparatory work
– Open the fuel tank filler cap. ( p. 19)
– Remove the seat. ( p. 49)
S04579-10
Main work
–
Pull engine electronics control unit
1
off the holder and hang
it to the side.
–
Take off protection caps
2
.
S04580-10
–
Remove a defective main fuse
3
with needle nose pliers.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
4
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109130) ( p. 112)
Info
Insert a new spare fuse into the starter relay to have it
available when needed.
– Check that the electrical system is functioning properly.
– Mount the protection caps.
– Position the EFI control unit.
Finishing work
– Mount the seat. ( p. 50)
– Set the clock. ( p. 21)
