11 SERVICE WORK ON THE CHASSIS
56

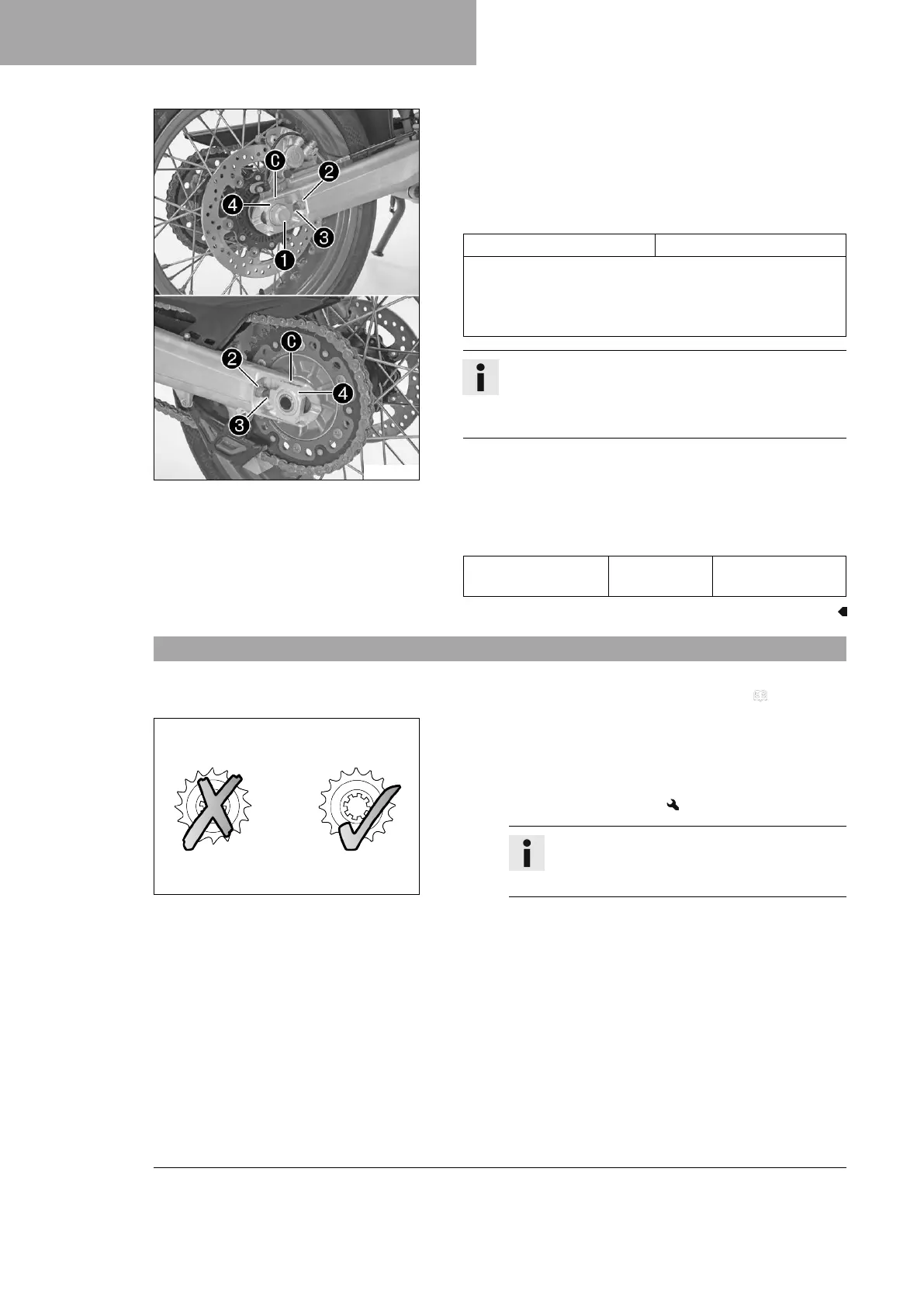

101989-10
Main work
–
Loosen nut
1
.
–
Loosen nuts
2
.
–
Adjust the chain tension by turning adjusting screws
3
left
and right.
Guideline
Chain tension 5 mm (0.2 in)
Turn the adjusting screws
3
on the left and right so that
the markings on the left and right chain adjusters
4
are in
the same position relative to the reference marks
C
. The
rear wheel is then correctly aligned.
Info
The top chain section must be taut.
Chain wear is not always even. Repeat this measure-
ment at different chain positions.
–
Tighten nuts
2
.
–
Make sure that chain adjusters
4
are fitted correctly on
adjusting screws
3
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel spin-
dle
M25x1.5 90 Nm (66.4 lbf ft)
11.25 Checking the chain, rear sprocket, engine sprocket, and chain guide
Preparatory work
– Raise the motorcycle with the rear lifting gear. ( p. 46)
100132-10
Main work
– Shift the transmission into neutral.
– Check the chain, rear sprocket, and engine sprocket for wear.
» If the chain, rear sprocket or engine sprocket is worn:
– Change the drivetrain kit.
Info
The engine sprocket, rear sprocket, and chain
should always be replaced together.
