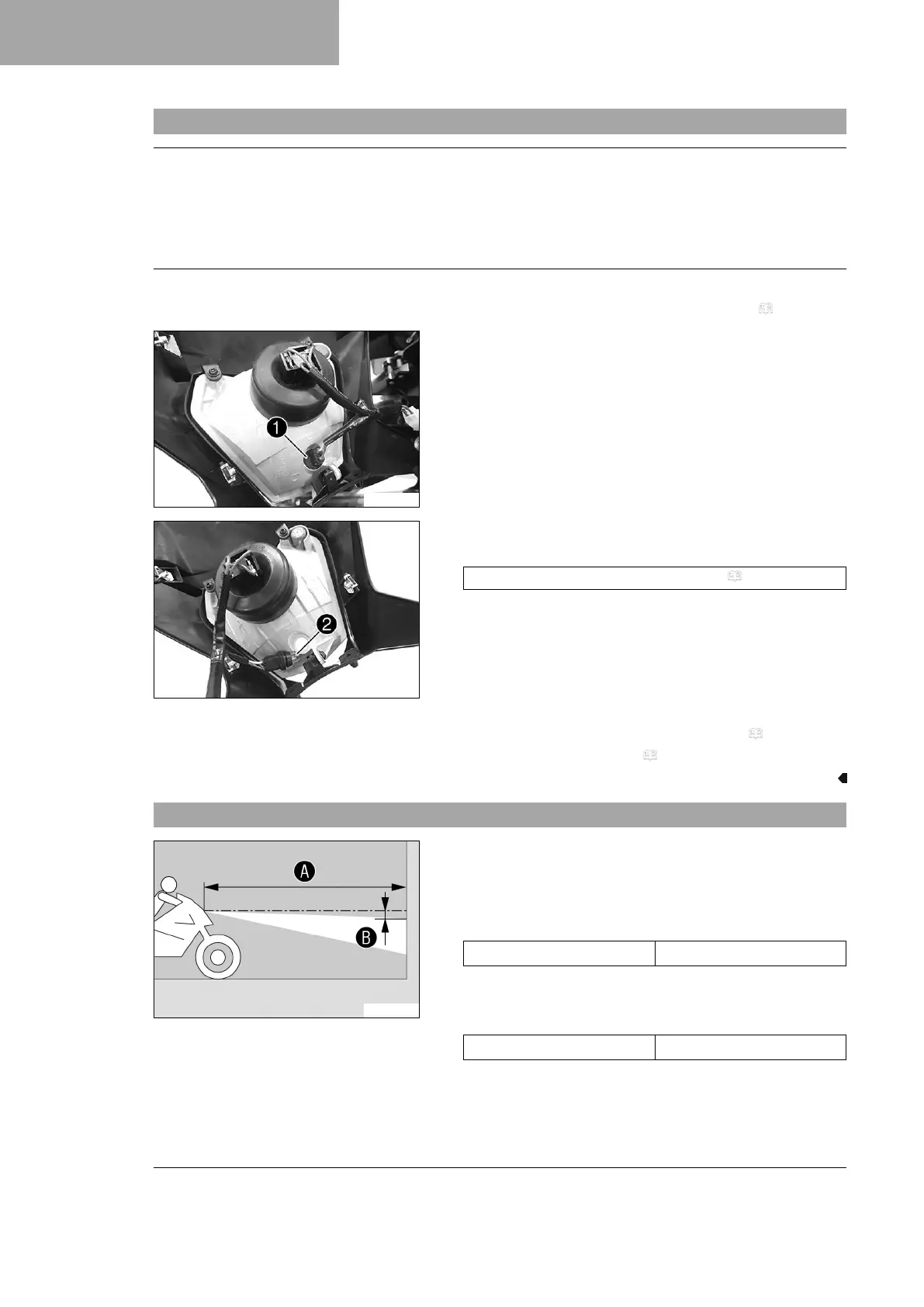

14.10 Changing the position light lamp
Note
Damage to reflector Grease on the reflector reduces the light intensity.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 84)
S03308-10
Main work
–
Remove bulb socket
1
.
S03309-10
–
Pull position light lamp
2
out of the bulb socket.
– Insert a new position light lamp in the bulb socket.
Position light (W5W / socket W2.1x9.5d) ( p. 112)
– Insert the bulb socket in the reflector.
Finishing work
– Install the headlight mask with the headlight. ( p. 84)
– Check the headlight setting. ( p. 86)
14.11 Checking the headlight setting
400726-10
– Position the vehicle upright on a horizontal surface in front of
a light wall and make a marking at the height of the center of
the low beam headlight.
–
Make another mark at a distance
B
under the first marking.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle vertically at a distance
A
away from the
wall.
Guideline
Distance
A
5 m (16 ft)
– The rider now mounts the motorcycle with luggage and passen-
ger if applicable.
– Switch on the low beam.
– Check the headlight setting.
