Kubota SVL65-2 User Manual

FUSE
FUSES
WARNING
T
o avoid personal injury or death:
• When changing fuse, stop the engine and turn
the key in the [STOP] position.

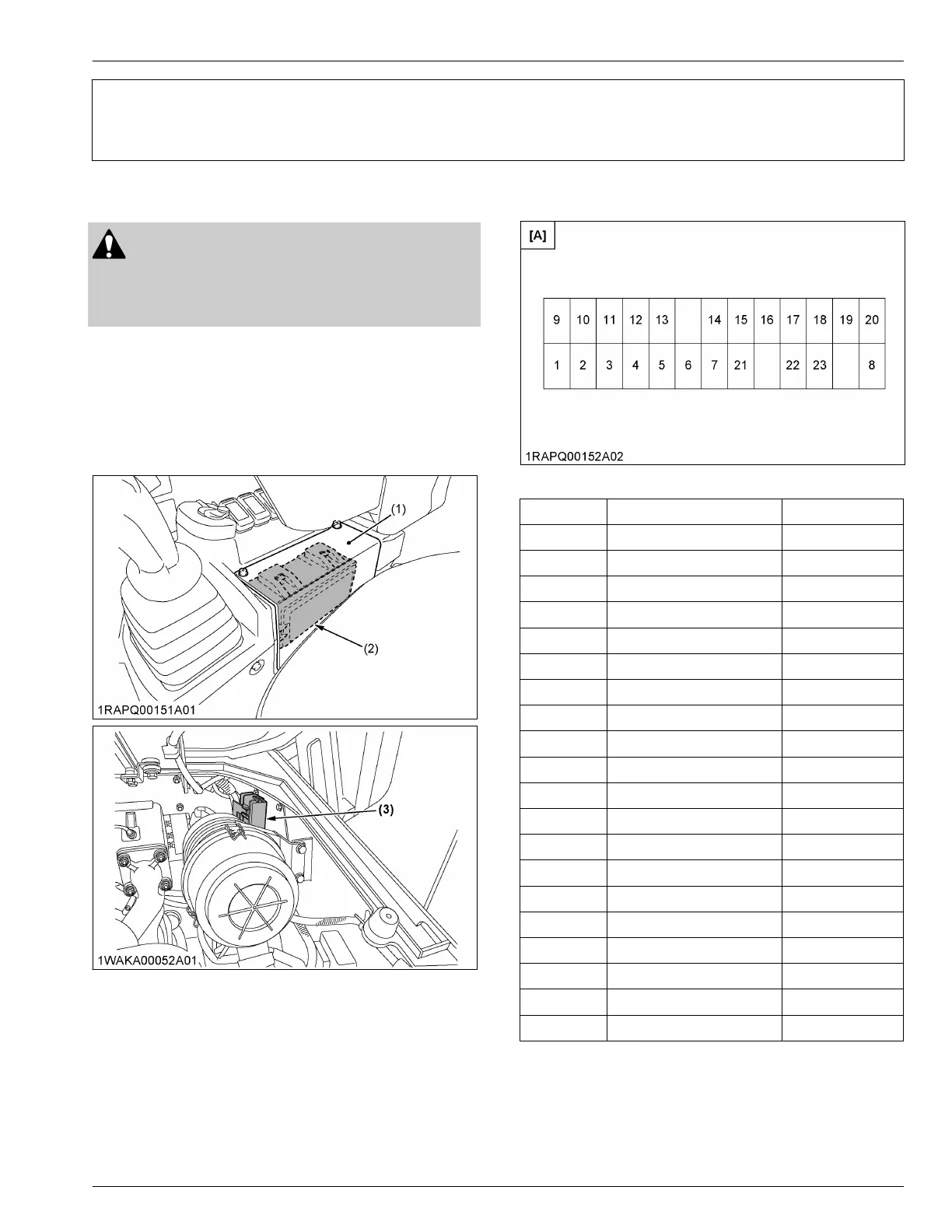

1. Replacing the fuse
1. Detach
the cover, and remove the cover of the fuse
box.
2. Replace the burnt out fuse with a fuse of the same
capacity.
(1) Cover
(2)
Fuse box
(3) Fuse and relay box
2. Fuse capacities and circuits
[A] Fuse box
No. Protected circuit Capacity
1 Room light / Strobe light 5 A
2 Front work lights 20 A
3 Rear work lights 15 A
4 Horn 5 A
5 Instrument panel (+B) 5 A
6 AUX electrical power 15 A
7 ECU (+B) 5 A
8 Starter 5 A
9 Indicator (Air cleaner) 5 A
10 Switch (AC) 5 A
11 ECU (AC) 20 A
12 Fuel pump 5 A
13 Control element 5 A
14 Arm harness 20 A
15 Electrical outlet 15 A
16 Attachments-1 -
17 Attachments-2 20 A
18 Air ride seat 20 A
19 Backup alarm 5 A
20 Engine ECU(AC) 5 A
FUSES FUSE
SVL65-2
111

Kubota SVL65-2 Specifications

General

Rated Operating Capacity	2, 100 lbs
Travel Speed	7.1 mph
Travel Speed, High	7.1 mph
Hydraulic System Flow	17.4 gpm
Lift Arm Breakout Force	6, 834 lbs (3, 100 kg)
Net Power	74 hp (55.2 kW)
Overall Length (with bucket)	157.5 in (4, 000 mm)
Height to Top of Cab	82 inches
Overall Length	157.5 in (4, 000 mm)
Overall Width	72 in (1, 830 mm)
Overall Height	82 inches
