AIR CONDITIONER
ADJUSTING THE AIR FLOW OF
THE AIR CONDITIONER
IMPORTANT :
• Do
not allow water to enter the fresh-air-inlet
when washing the machine.
NOTE :
• The rear-air-outlet-port is for cool air only. No
warm air is blown out from the rear-air-outlet-
port.
• When heating, do not keep the inlet-selector-
knob at the inside-air-recirculation position for
a long time. The windshield can easily fog.
• To raise the air flow rate from the rear-air-outlet-
port, set the inlet-selector-knob to the inside-
air-recirculation position.
• While working in a dusty condition, keep the
inlet-selector-knob at the fresh-air-inlet
position. Keeping the inlet-selector-knob at the
fresh-air-inlet position increases the pressure in
the cab, which helps prevent dust from coming
into the cab.
• Adjust
the six air-outlet-ports to obtain the desired
air flow.

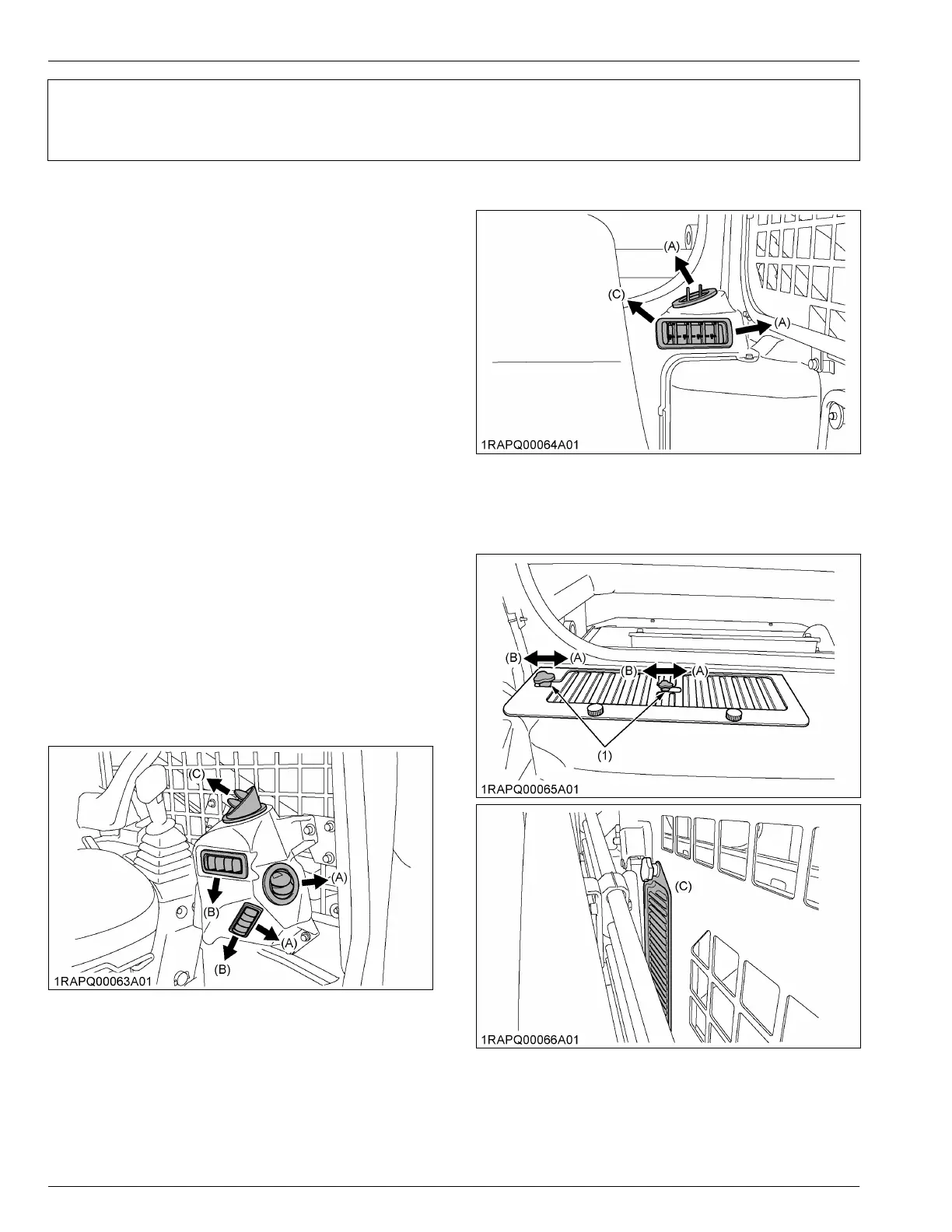

The air flow in the cab and the fresh air flow into the
cab flow is shown in the following figure.
Front air outlet port
Rear air outlet port (for cool air only)
(A) Windshield
(B)
Foot area
(C) Chest area
• Position
the inlet-selector-knob to the desired
position.
(1) Inlet selector knob (A) Fresh air inlet position
(B)
Inside air recirculation posi-
tion
(C) Fresh air inlet
AIR CONDITIONER ADJUSTING THE AIR FLOW OF THE AIR CONDITIONER
