2. Place
the radiator and the oil-cooler-tilt-stopper to
prevent the tilted radiator and oil cooler from falling
forward.

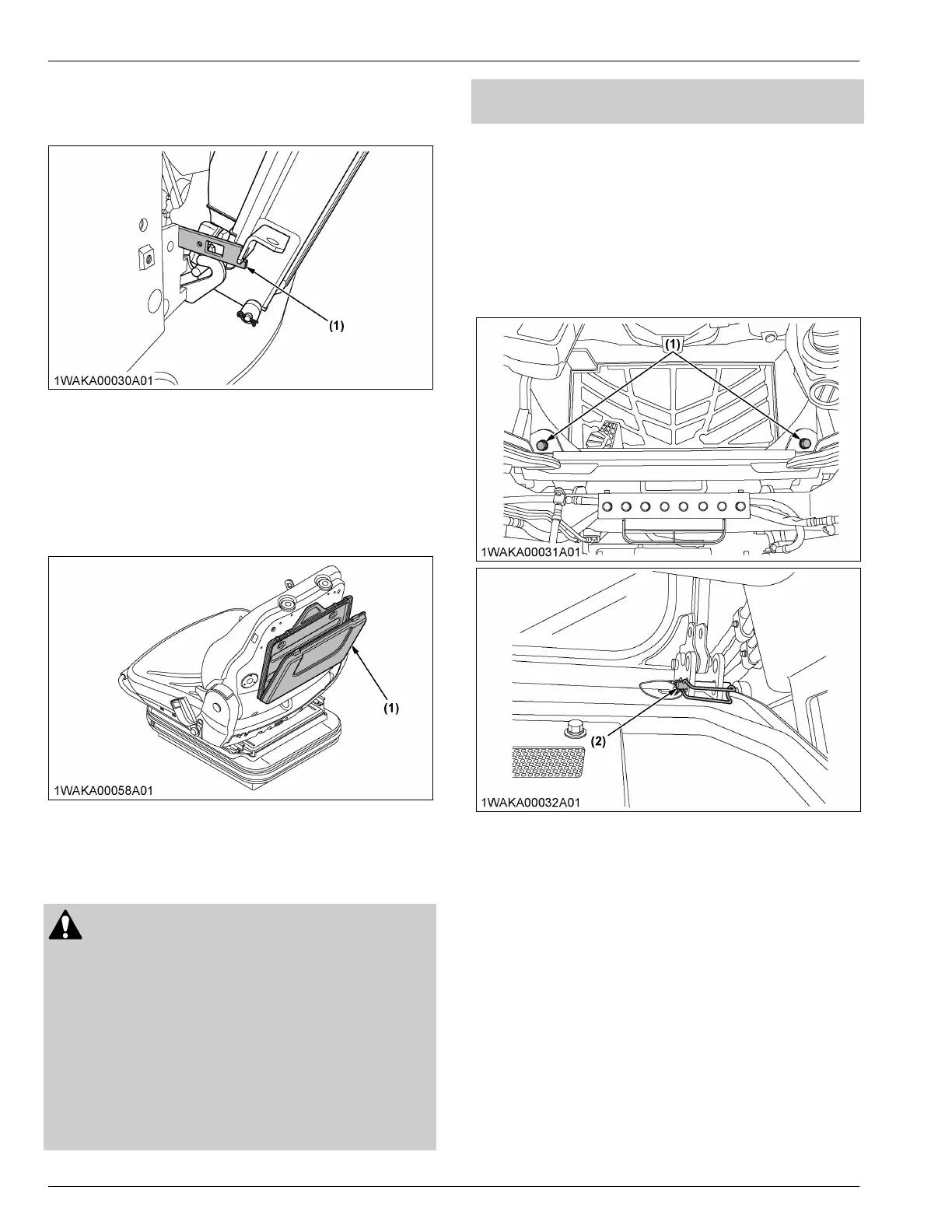

(1) Radiator and oil cooler tilt
stopper
4. Where to keep the operator's
manual
Keep the operator's manual in the operator's-manual-
storage-box at the back of the operator's seat.
(1) Operator's manual storage
box
5. Tilting up the cab
WARNING
T
o avoid personal injury or death:
• Raising or lowering the cab while the engine is
running may cause the machine to move, and
cause personal injury or death. Place the
machine on a firm, flat and level surface, lower
the lift arms slowly to the ground and stop the
engine before raising or lowering the cab.
• When tilting the cab up, support it firmly with
the stopper pin to prevent it from falling.
• Do not enter beneath the cab, while raising or
lowering the cab.
• More
than one person may be needed to tilt the
cab.
For inspection and maintenance, the cab is designed
so that you can tilt up it.
Raising (Tilt up)
1. Select a firm, level surface, lower the lift arms fully
to the ground, and stop the engine.
2. Set the armrest to the raised position.
3. Remove the stopper pin from rear of the machine
and remove the lock bolts from the front of the
machine.
(1) Lock bolt (2) Stopper pin
4. Slowly
raise the cab until the cab is all the way up
and the latching mechanism engages.
