6. Lower
the lift arms so that the quick-hitch mounting
plate clears the saddle of the attachment.
7. Back the machine away from the attachment slowly.
8. If an attachment is not going to be attached to the
quick-hitch immediately, push the lever of the quick-
hitch to the locked position to prevent damage to
the lever assembly.
HOW TO USE THE HYDRAULIC
QUICK-HITCH
WARNING
T
o avoid personal injury, death or machine damage:
• Never operate or transport attachments which
are not attached completely.
• Always replace damaged hardware immediately.
NOTE :
• Locate the attachments on a level, firm surface
when attaching and detaching them from the
quick-hitch.

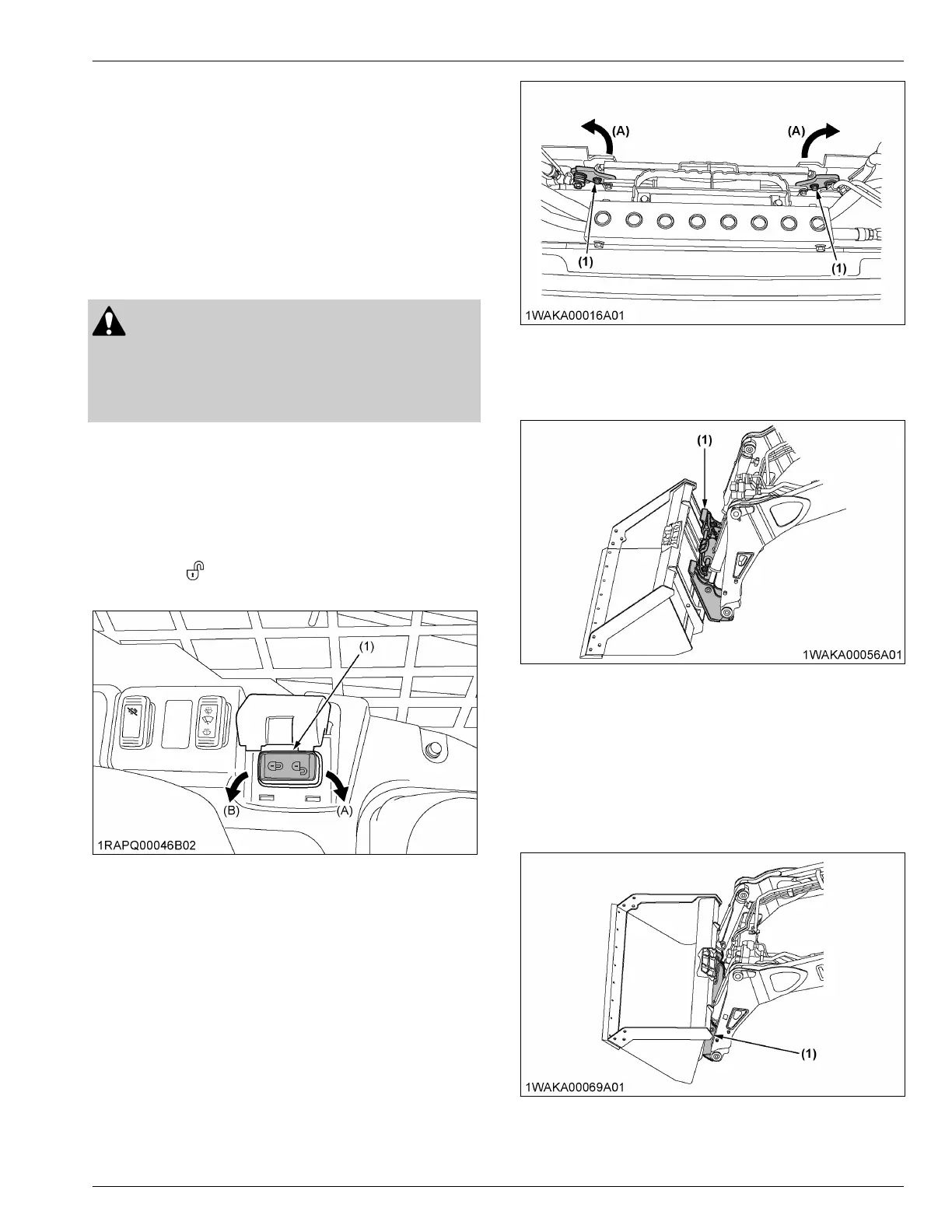

Attaching attachments
1. Push
the hydraulic quick-hitch switch in the
unlocked position and hold it to make sure that
the quick-hitch levers are up (unlocked position).
(1) Hydraulic quick-hitch switch (A) Unlock position
(B) Lock position
(1) Quick-hitch lever (A) Unlock
2. Position
the machine squarely in front of the
attachment and tilt the quick-hitch forward with the
tilt cylinders.
(1) Quick-hitch
3. Ease
the quick-hitch mounting plate into the saddle
of the attachment.
4. Roll the quick-hitch back using the tilt cylinders and
raise the lift arms slightly.
The back of the attachment should rest against the
front of the quick-hitch mounting plate and you
should support the weight of the attachment by the
lift arms.
(1) Quick-hitch
5. When
the attachment is properly seated in the
saddle of the attachment and against the front of
HOW TO USE THE HYDRAULIC QUICK-HITCH QUICK-HITCH
