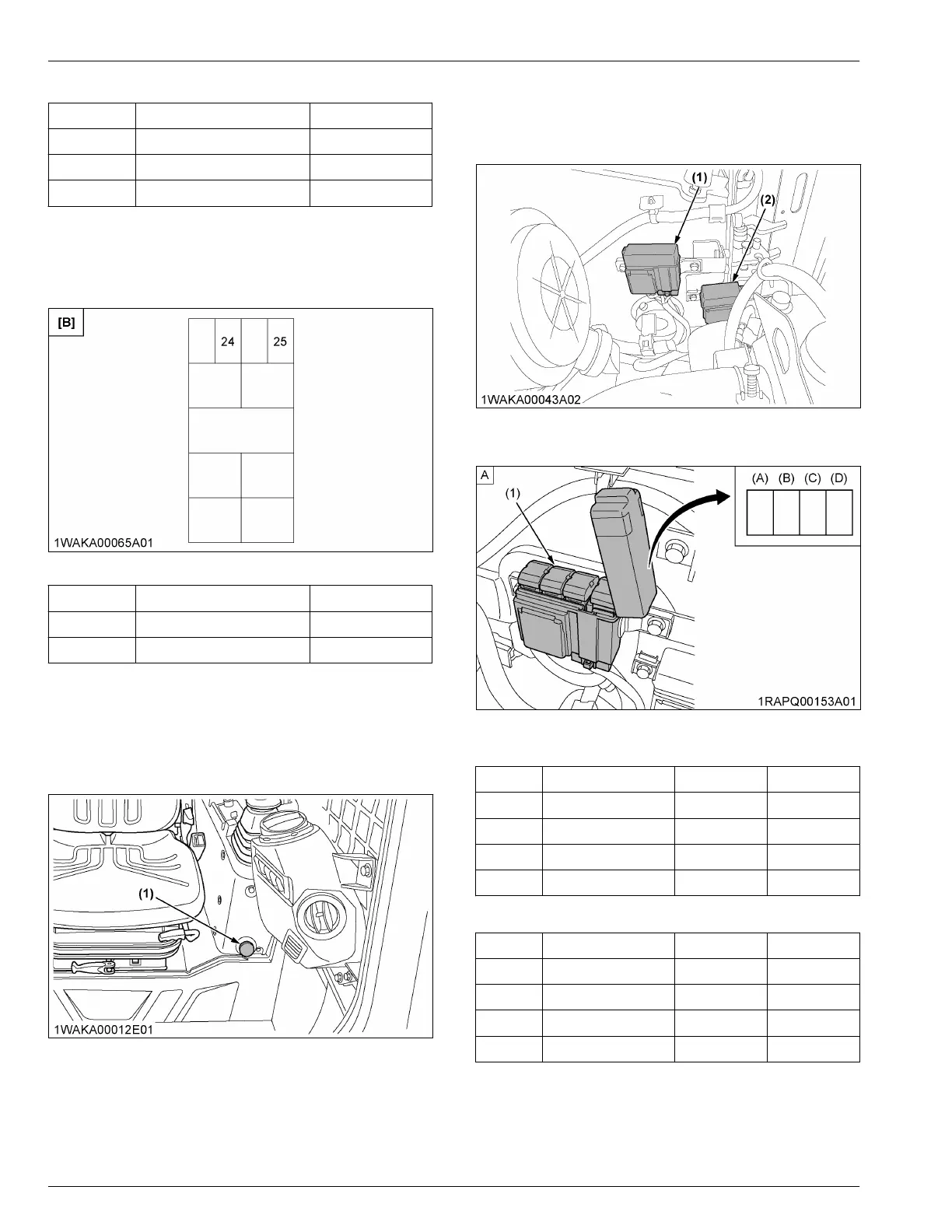

Kubota SVL65-2 User Manual

[Closed cab model]
No. Protected circuit Capacity
21 Blower motor 20 A
22 Wiper 15 A
23 Compressor clutch 10 A
NOTE :
• The
fuse of No.16 is not set at the factory. When
using the attachments-1, contact your KUBOTA
dealer.
[B] Fuse and relay box
No. Protected circuit Capacity
24 CCV heater 20 A
25 Engine elements 10 A
3. Electrical outlet
Max power is less than 120 W.
If
you need another auxiliary electric, contact your
KUBOTA dealer for details.
(1) Electrical outlet
4. Slow blow fuse
Slow-blow-fuse protects the electrical circuits.
If the slow-blow-fuse is blown, check the electrical
circuits
for trouble and then replace with a new
compatible slow-blow-fuse.
(See Replacing the bolted slow blow fuse on page 113)
(1) Slow blow fuse A (2) Slow blow fuse B
Slow blow fuse A
(1) Slow blow fuse A
[Open cab model]
No. Protected circuit Capacity Fuse type
(A) Engine 30 A Bolted
(B) Main 60 A Bolted
(C) CCV heater 30 A Plug-in
(D) (Blank) - -
[Closed cab model]
No. Protected circuit Capacity Fuse type
(A) Engine 30 A Bolted
(B) Main 60 A Bolted
(C) Closed cab 50 A Plug-in
(D) Condenser motor 20 A Plug-in
FUSE FUSES
112
SVL65-2

Kubota SVL65-2 Specifications

General

Rated Operating Capacity	2, 100 lbs
Travel Speed	7.1 mph
Travel Speed, High	7.1 mph
Hydraulic System Flow	17.4 gpm
Lift Arm Breakout Force	6, 834 lbs (3, 100 kg)
Net Power	74 hp (55.2 kW)
Overall Length (with bucket)	157.5 in (4, 000 mm)
Height to Top of Cab	82 inches
Overall Length	157.5 in (4, 000 mm)
Overall Width	72 in (1, 830 mm)
Overall Height	82 inches
